Каталог запасных частей к технике: HAMM HD90. CABIN-HEATING

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 3410 (2015) 3410 (2021) 3411 (2015) 3411 (2021) 3516 (2008) 3518 (2008) 3520 (2008) GRW 10 GRW 10 (2009) GRW 15 GRW 15 (2009) GRW 18 GRW 18 (2009) GRW 21 GRW 21 (2009) GRW 24 GRW 24 (2009) HD110 (2021) HD90 (2021)

Схема > Не выбрано MAIN FRAME AND ASSEMBLIES MAIN FRAME AND ASSEMBLIES MAIN FRAME AND ASSEMBLIES MAIN FRAME AND ASSEMBLIES CANOPIES AND COVERS CANOPIES AND COVERS CANOPIES AND COVERS CANOPIES AND COVERS CANOPIES AND COVERS STICKER ARRANGEMENT STICKER ARRANGEMENT STICKER ARRANGEMENT STICKER ARRANGEMENT DIN/ISO STICKER ARRANGEMENT ANSI SOUND-INSULATION ADDITIONAL LOAD VERSION,HD+110 OPERATOR PLATFORM OPERATOR PLATFORM OPERATOR PLATFORM OPERATOR PLATFORM OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT OPERATOR'S SEAT WITH ADJUSTMENT ROLL OVER PROTECTION HANDLES INSTRUMENT PANEL COVERING OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN (COMFORT) OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN (COMFORT) OPERATOR'S CABIN OPERATOR'S CABIN (COMFORT) OPERATOR'S CABIN CABIN-HEATING CABIN-HEATING CABIN-HEATING CABIN-HEATING CABIN-HEATING CABIN-HEATING AIR CONDITIONING AIR CONDITIONING AIR CONDITIONING AIR CONDITIONING AIR CONDITIONING AIR CONDITIONING AIR CONDITIONING AIR CONDITIONING AIR CONDITIONING AIR CONDITIONING PUMP DRIVE AND ENGINE ASSEMBLY PUMP DRIVE AND ENGINE ASSEMBLY FUEL SYSTEM FUEL SYSTEM FUEL SYSTEM FUEL SYSTEM FUEL FILTER FUEL FILTER AIR FILTER SYSTEM EXHAUST SYSTEM COOLING (ENGINE/HYDRAULIC OIL) COOLING (ENGINE/HYDRAULIC OIL) COOLING (ENGINE/HYDRAULIC OIL) COOLING (ENGINE/HYDRAULIC OIL) COOLING (ENGINE/HYDRAULIC OIL) DRIVING GEAR (VARIABLE DISPLACEMENT PUMP - DRIVE) DRIVING GEAR (VARIABLE DISPLACEMENT PUMP - VIBRATION DRIVE) DRIVING GEAR (VARIABLE DISPLACEMENT PUMP - VIBRATION DRIVE) CONSTANT MOTOR (VIBRATION/OSCILLATION) CONTROL BLOCK DRIVE DISTRIBUTOR BLOCK VERSION,HD+90VV-S / HD+90VO-S DISTRIBUTOR BLOCK VERSION,HD+90VV-S GEAR HUB MOTOR GEAR HUB MOTOR GEAR HUB MOTOR GEAR HUB MOTOR GEAR HUB MOTOR GEAR HUB MOTOR VALVE BLOCK (BRAKE + GEAR SHIFTING) VALVE BLOCK (BRAKE + GEAR SHIFTING) VALVE BLOCK (TRACK OFFSET + KAG) FILTER (HYDRAULIC OIL) VALVE BLOCK (ASC) OIL TANK OIL TANK INSTRUMENT PANEL INSTRUMENT PANEL ELECTRICAL SYSTEM ELECTRICAL SYSTEM ELECTRICAL SYSTEM ELECTRICAL SYSTEM ELECTRICAL SYSTEM ELECTRICAL SYSTEM ELECTRICAL SYSTEM ELECTRICAL SYSTEM ELECTRICAL SYSTEM ELECTRICAL SYSTEM (LIGHTING FRONT) ELECTRICAL SYSTEM (LIGHTING REAR) ELECTRICAL SYSTEM (RADIO) TIRE EQUIPMENT ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE (TIRES) VERSION, VT ADVANCE DRIVE (TIRES) VERSION, VT ADVANCE DRIVE (TIRES) VERSION, VT ADVANCE DRIVE (TIRES) VERSION, VT ADVANCE DRIVE (TIRES) VERSION, VT-S ADVANCE DRIVE (TIRES) VERSION, VT-S ADVANCE DRIVE (TIRES) VERSION, VT-S ADVANCE DRIVE (TIRES) VERSION,VT-S PARKING BRAKE PARKING BRAKE PARKING BRAKE PARKING BRAKE PARKING BRAKE PARKING BRAKE PARKING BRAKE PARKING BRAKE PARKING BRAKE PARKING BRAKE (TIRES) VERSION,VT PARKING BRAKE (TIRES) VERSION,VT-S GEAR SHIFTING VERSION,HD+VV/VO GEAR SHIFTING VERSION,HD+VV/VO GEAR SHIFTING VERSION,HD+VV/VO GEAR SHIFTING VERSION,HD+VV/VO GEAR SHIFTING VERSION,HD+VV-S GEAR SHIFTING VERSION,HD+VV-S GEAR SHIFTING VERSION,HD+VV-S GEAR SHIFTING VERSION,HD+VV-S GEAR SHIFTING VERSION,HD+VV-S GEAR SHIFTING VERSION,HD+VV-S GEAR SHIFTING VERSION,HD+VO-S GEAR SHIFTING VERSION,HD+VO-S GEAR SHIFTING VERSION,HD+VO-S GEAR SHIFTING VERSION,HD+VO-S GEAR SHIFTING (TIRES) VERSION,VT GEAR SHIFTING (TIRES) VERSION,VT-S CENTRE PIVOT ASSEMBLY CENTRE PIVOT ASSEMBLY CENTRE PIVOT ASSEMBLY CENTRE PIVOT ASSEMBLY CENTRE PIVOT ASSEMBLY CENTRE PIVOT ASSEMBLY STEERING FORK BEARING (TIRES) STEERING FORK BEARING (TIRES) STEERING STEERING STEERING STEERING STEERING STEERING (TRACK OFFSET) SPRINKLING SPRINKLING SPRINKLING SPRINKLING SPRINKLING SPRINKLING SPRINKLING SPRINKLING ADDITIVE SPRINKLING ADDITIVE SPRINKLING ADDITIVE SPRINKLING WATER PUMP WATER PUMP CHIP SPREADER (CYLINDER SPREADER, ELECTRONIC) CHIP SPREADER (CYLINDER SPREADER, ELECTRONIC) CHIP SPREADER (CYLINDER SPREADER, ELECTRONIC) CHIP SPREADER (DISC SPREADER) CHIP SPREADER (DISC SPREADER) CHIP SPREADER (DISC SPREADER) CHIP SPREADER (DISC SPREADER) HYDRAULIC SYSTEM (CHIP SPREADER) HYDRAULIC SYSTEM (CHIP SPREADER) HYDRAULIC SYSTEM (CHIP SPREADER) ELECTRICAL SYSTEM (CYLINDRICAL SPREADER) ELECTRICAL SYSTEM (DISC SPREADER) ELECTRICAL SYSTEM (CHIP SPREADER) ELECTRICAL SYSTEM (CHIP SPREADER) SUSPENSION (ROLLER DRUM FRONT) SUSPENSION (ROLLER DRUM FRONT) SUSPENSION (ROLLER DRUM FRONT) SUSPENSION (ROLLER DRUM FRONT) SUSPENSION (ROLLER DRUM REAR) SUSPENSION (ROLLER DRUM REAR) SUSPENSION (ROLLER DRUM REAR) SUSPENSION (ROLLER DRUM REAR) SUSPENSION (ROLLER DRUM REAR) SCRAPER (FRONT) SCRAPER (REAR) SCRAPER (TIRES) SCRAPER ABOVE SCRAPER BELOW SCRAPER (TIRES) DRUM WITH VIBRATOR (WITH DRUM DRIVE) DRUM WITH VIBRATOR (WITH DRUM DRIVE) DRUM WITH VIBRATOR (WITH DRUM DRIVE) DRUM WITH VIBRATOR (WITH DRUM DRIVE) SMOOTH ROLLER DRUM WITH OSCILLATOR SMOOTH ROLLER DRUM WITH OSCILLATOR SMOOTH ROLLER DRUM WITH OSCILLATOR SMOOTH ROLLER DRUM WITH OSCILLATOR DRUM WITH VIBRATOR (WITH DRUM DRIVE) DRUM WITH VIBRATOR (WITH DRUM DRIVE) DRUM WITH VIBRATOR (WITH DRUM DRIVE) DRUM WITH VIBRATOR (WITH DRUM DRIVE) DRUM WITH VIBRATOR (WITH DRUM DRIVE) DRUM WITH VIBRATOR (WITH DRUM DRIVE) VIBRATION DRIVE VIBRATION DRIVE VIBRATION DRIVE VIBRATION DRIVE VIBRATION DRIVE VIBRATION DRIVE VIBRATION DRIVE VIBRATION DRIVE VIBRATION DRIVE VIBRATION DRIVE VIBRATION DRIVE VIBRATION DRIVE EDGE PRESSING AND CUTTING DEVICE (FRONT LEFT SIDE) EDGE PRESSING AND CUTTING DEVICE (FRONT RIGHT SIDE) ADD-ON PIECES (EDGE PRESSING AND CUTTING DEVICE) ADD-ON PIECES (EDGE PRESSING AND CUTTING DEVICE) HYDRAULIC SYSTEM (EDGE PRESS./CUTT. DEVICE FRONT LEFT SIDE) HYDRAULIC SYSTEM (EDGE PRESS./CUTT. DEVICE FRONT LEFT SIDE) HYDRAULIC SYSTEM (EDGE PRESS./CUTT. DEVICE FRONT RIGHT SIDE) HYDRAULIC SYSTEM (EDGE PRESS./CUTT. DEVICE FRONT RIGHT SIDE) HYDRAULIC SYSTEM (EDGE PRESSING AND CUTTING DEVICE) RIGHT-LEFT HYDRAULIC SYSTEM (EDGE PRESSING AND CUTTING DEVICE) RIGHT-LEFT HYDRAULIC SYSTEM (EDGE PRESSING AND CUTTING DEVICE) RIGHT-LEFT ELECTRICAL SYSTEM (EDGE PRESSING AND CUTTING DEVICE) THERMAL SCUFFLE PROTECTION ROOF SUN ROOF SUN ROOF SUN ROOF LAMP PROTECTION ADDITIONAL STORAGE HANDLES HANDLES LOCKING DEVICE FROST PROTECTION FOR SPRINKLING ADDITIONAL LIGHTING ADDITIONAL LIGHTING ADDITIONAL LIGHTING ADDITIONAL LIGHTING ADDITIONAL LIGHTING ADDITIONAL LIGHTING LED ROLLER DRUM LIGHTING ROLLER DRUM LIGHTING ROLLER DRUM LIGHTING LED CAMERA SYSTEM ROTARY BEACON (DRIVER'S CABIN) ROTARY BEACON (DRIVER'S CABIN) WARNING LIGHT (SUN ROOF) WARNING LIGHT (SUN ROOF) FREQUENCY METER (VIBRATION) BACK-UP ALARM (BACK-UP) ASPHALT THERMOMETER COMPACTOMETER COMPACTOMETER, HCQ CABIN COMPACTOMETER, HCQ CABIN COMPACTOMETER, HCQ CABIN COMPACTOMETER, HCQ FOPS COMPACTOMETER, HCQ FOPS COMPACTOMETER, HCQ FOPS COMPACTOMETER, HCQ COMPACTOMETER, HCQ TACHOGRAPH BATTERY ISOLATING SWITCH WIFMS INTERFACE WITOS FIRE EXTINGUISHER TГњV ITALY TГњV TГњV MAINTENANCE KITS AND REPAIR KITS

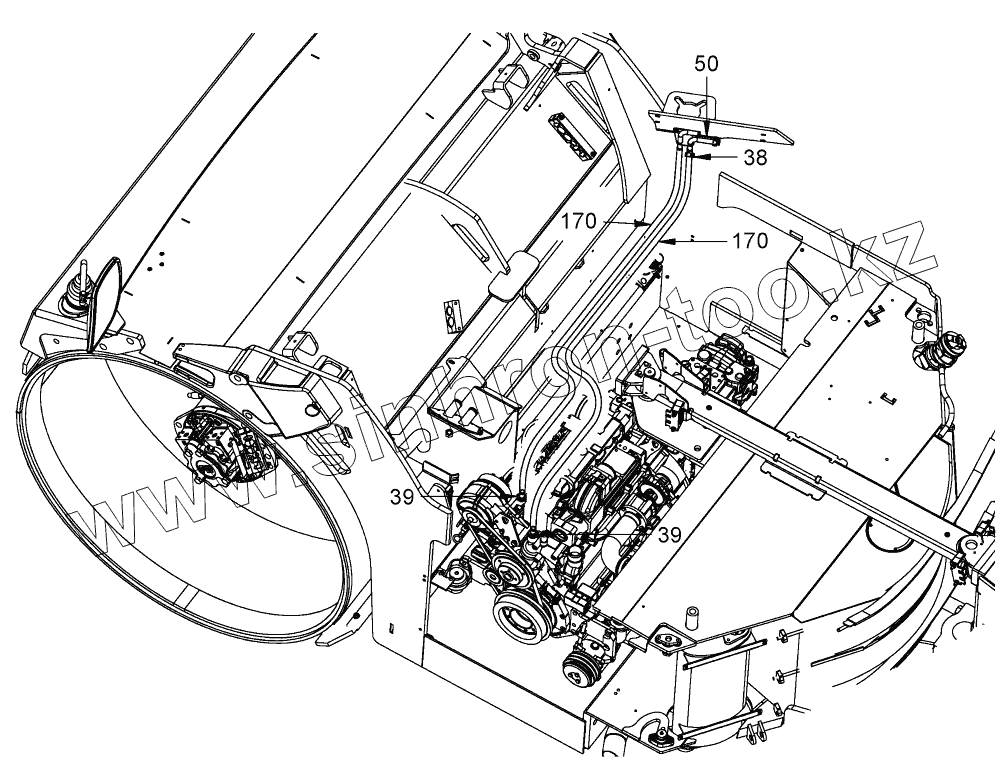

38

39

39

50

170

170

Позиция на иллюстрации	Заводской номер детали		Название детали
38	225789		HOSE CLAMP
39	2103311		SOCKET
50	2096868		PIPE ELBOW
170	2053480		COOLING-WATER HOSE
