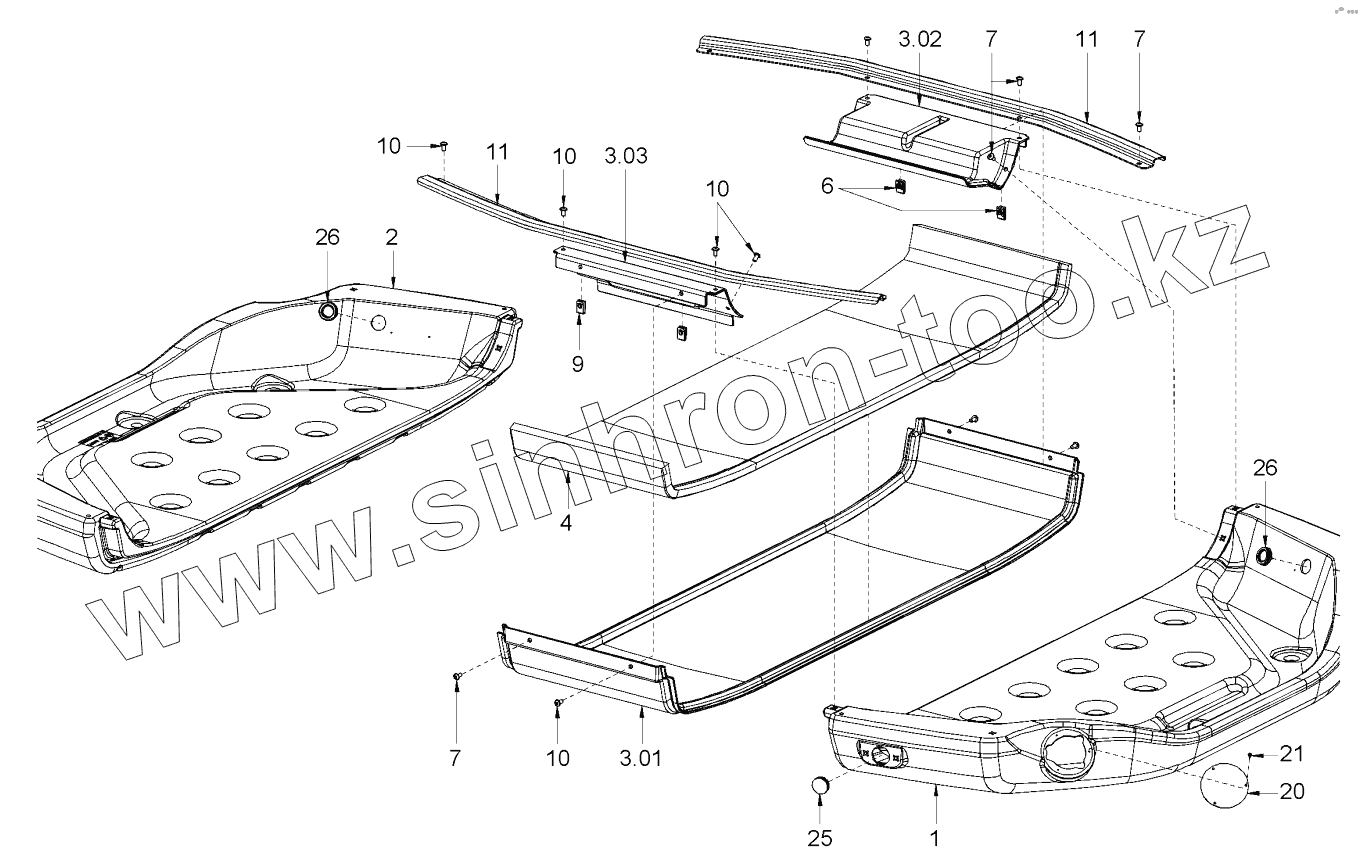

1
2
3.01
3.02
3.03
4
6
7
7
7
9
10
10
10
10
11
11
20
21
25
26
26
Позиция на иллюстрации
Заводской номер детали
Название детали
1
2127576
ROOF LEFT
2
2154711
ROOF RIGHT
3.01
2127579
ROOF
3.02
2127627
ROOF
3.03
2127628
COVERING PART
4
2162843
INSULATION PLATE
6
385778
CLIP NUT
7
2036115
FILLISTER HEAD SCREW
9
385778
CLIP NUT
10
2036115
FILLISTER HEAD SCREW
11
2169754
ROOF RAIL
20
2163463
LID
21
1289985
SHEET METAL SCREW
25
2054176
FILLER CAP
26
2027111
CABLE SUPPORT SLEEVE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
