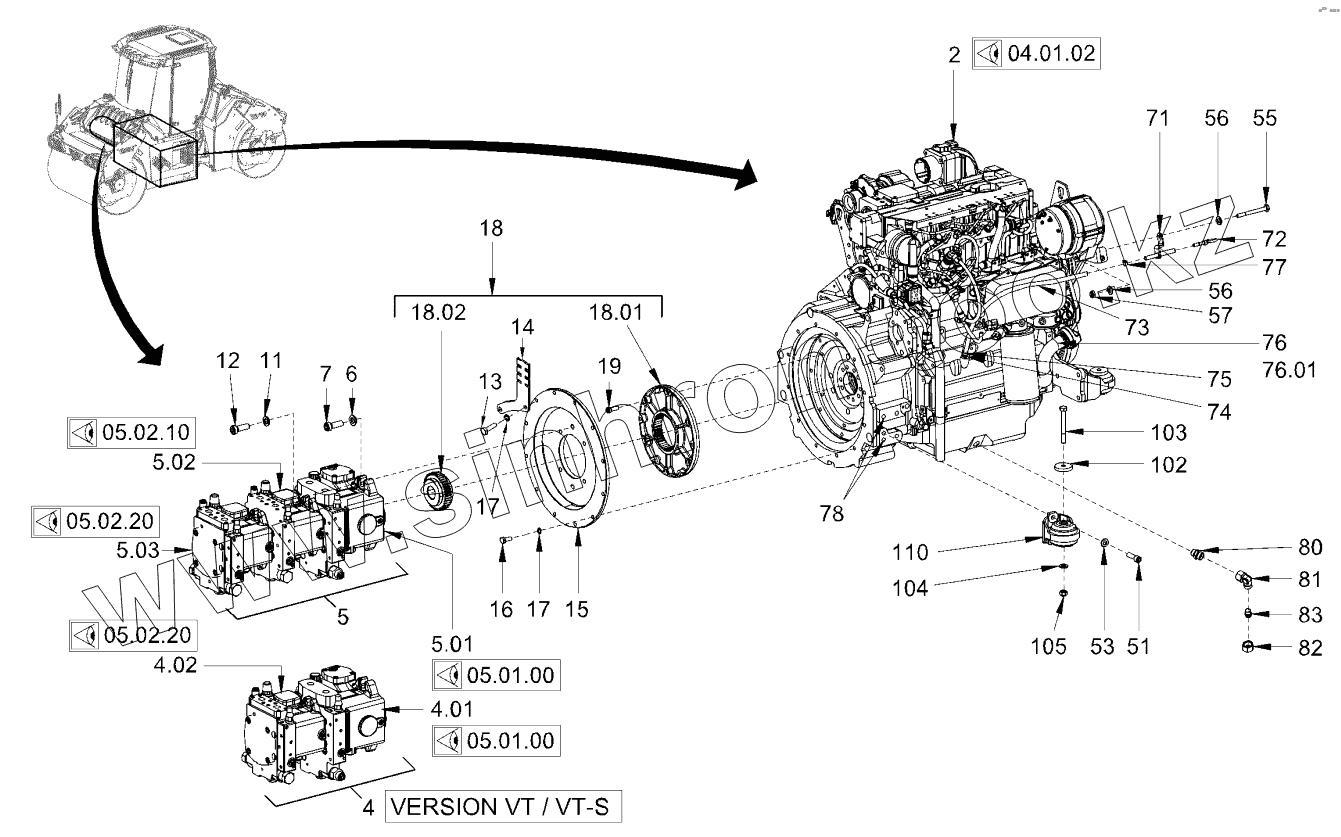

Каталог запасных частей к технике: HAMM HD110. PUMP DRIVE AND ENGINE ASSEMBLY

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
2
4
4
4.01
4.01
4.02
4.02
5
5
5.01
5.02
5.02
5.03
5.03
6
7
11
12
13
14
15
16
17
17
18
18.01
18.02
19
51
53
55
56
56
57
71
72
73
74
75
76
76.01
77
78
80
81
82
83
102
103
104
105
110
Позиция на иллюстрации Заводской номер детали Название детали
2 2043593 DIESEL ENGINE
4 2127220 TANDEM PUMP VERSION,VT, VT-S
4 2381115 TANDEM PUMP VERSION,VT, VT-S
4.01 2161538 VARIABLE DISPLAC. PUMP (DRIVE) VERSION,VT, VT-S
4.01 2381118 VARIABLE DISPLAC. PUMP (DRIVE) VERSION,VT, VT-S
4.02 2381120 VARIABLE DISPLAC. PUMP (VIBR.) VERSION,VT, VT-S
4.02 2160979 VARIABLE DISPLAC. PUMP (VIBR.) VERSION,VT, VT-S
5 2127224 TRIPLE PUMP NOT VERSION,VT, VT-S
5 2381109 TRIPLE PUMP NOT VERSION,VT, VT-S
5.01 2161538 VARIABLE DISPLAC. PUMP (DRIVE) NOT VERSION,VT, VT-S
5.02 2071800 VARIABLE DISPLAC. PUMP (VIBR.) NOT VERSION,VT, VT-S
5.02 2381113 VARIABLE DISPLAC. PUMP (VIBR.) NOT VERSION,VT, VT-S
5.03 2381114 VARIABLE DISPLAC. PUMP (VIBR.) NOT VERSION,VT, VT-S
5.03 2160979 VARIABLE DISPLAC. PUMP (VIBR.) NOT VERSION,VT, VT-S
6 1504290 WASHER
7 2119459 HEXAGON SCREW
11 381543 WASHER
12 214647 CHEESE-HEAD SCREW
13 252980 HEXAGON SCREW
14 2096333 HOLDER
15 1489208 FLANGE
16 213888 HEXAGON SCREW
17 276243 LOCKING WASHER
18 2076522 COUPLING COMPL.
18.01 1269666 ELASTIC PART
18.02 2142624 HUB
19 214639 CHEESE-HEAD SCREW
51 214701 CHEESE-HEAD SCREW
53 216615 WASHER
55 2538206 HEXAGON SCREW
56 2175175 LOCKING WASHER
57 2127021 HEXAGONAL NUT
71 2069383 HOLDER
72 1528939 OIL DIPSTICK
73 2342186 GUIDE TUBE
74 830909 NIPPLE
75 1299638 HOSE CLAMP
76 2070502 OIL FILLER PORT
76.01 1237705 SEALING
77 1290711 HOSE CLAMP
78 2573361 FILLER CAP
80 317098 STRAIGHT SCREWED SOCKET
81 317837 ELBOW ADJUSTABLE
82 206849 UNION NUT
83 366544 FILLER CAP
102 392847 WASHER
103 2538283 HEXAGON SCREW
104 2175175 LOCKING WASHER
105 2127024 HEXAGONAL NUT
110 1215469 ENGINE MOUNTING FOOT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
