132
133
134
200
200
210
211
212
213
215
216
217
220
221
225
226
226.01
227
228
229
235
236
237
239
240
250
251
252
260
260
261
262
262
263
320
321
322
323
324

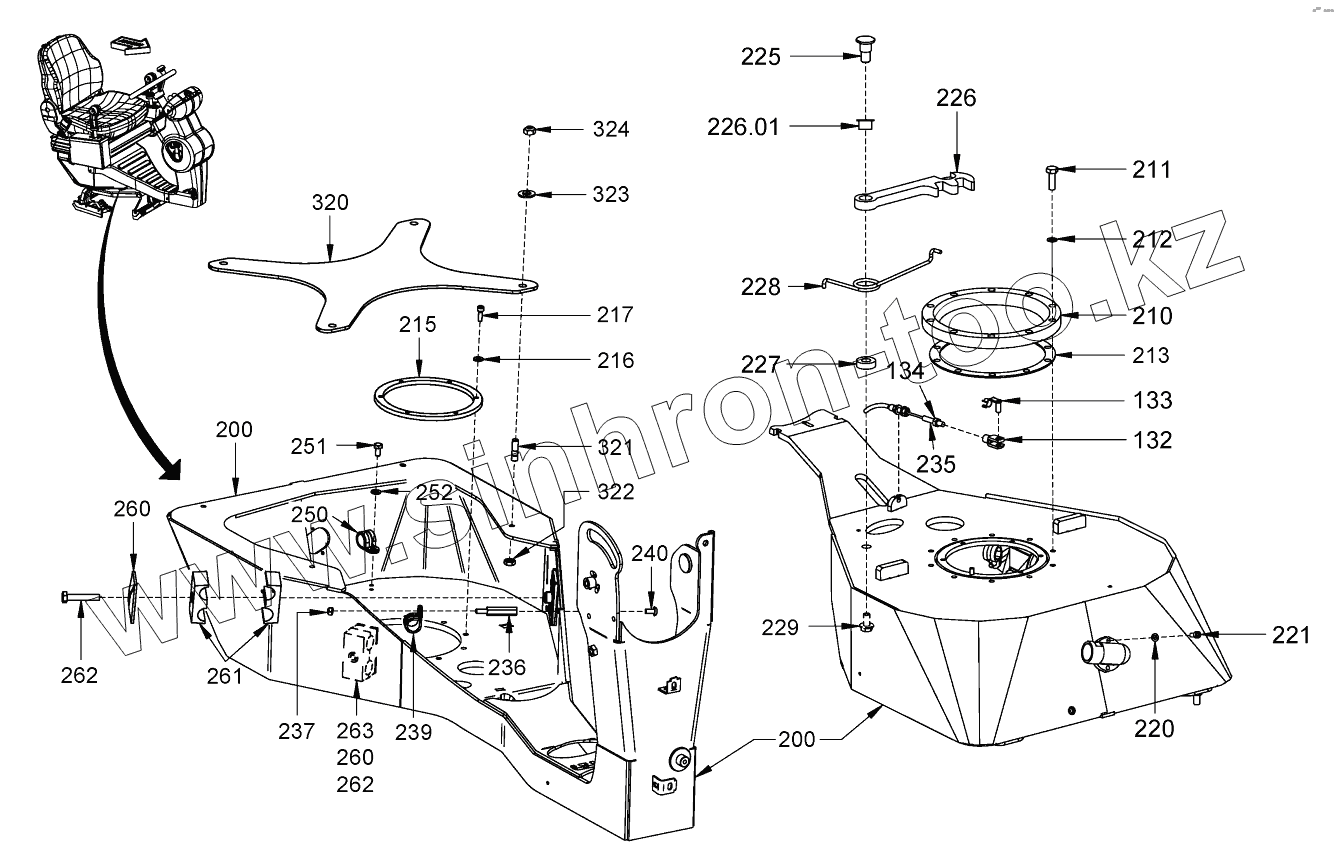

Позиция на иллюстрации
Заводской номер детали
Название детали
132
200646
FORK HEAD
133
217948
BOLT
134
2127017
HEXAGONAL NUT
200
2075402
SEAT PEDESTAL
210
2060786
FLANGED BEARING
211
214582
CHEESE-HEAD SCREW
212
276332
LOCKING WASHER
213
2152592
METAL PLATE
215
2073207
CLAMPING PIECE
216
216569
WASHER
217
367567
CHEESE-HEAD SCREW
220
216569
WASHER
221
239615
CHEESE-HEAD SCREW
225
2075404
TENON
226
2110323
LEVER
226.01
2048603
BEARING BUSH
227
2090384
SPACER WASHER
228
2075608
SPRING
229
2111993
SAFETY SCREW
235
2051577
BOWDEN CABLE
236
2052324
BOLT
237
2136710
SAFETY NUT
239
1241710
PIPE CLIP
240
2024268
FILLISTER HEAD SCREW
250
1241710
PIPE CLIP
251
283568
HEXAGON SCREW
252
216577
WASHER
260
387380
TOP COVER
261
2106049
HALF-CLIP
262
351547
HEXAGON SCREW
263
2106047
HALF-CLIP
320
2075784
METAL PLATE
321
1208489
STUD SCREW
322
355062
HEXAGONAL NUT
323
260983
WASHER
324
1209302
SAFETY NUT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
