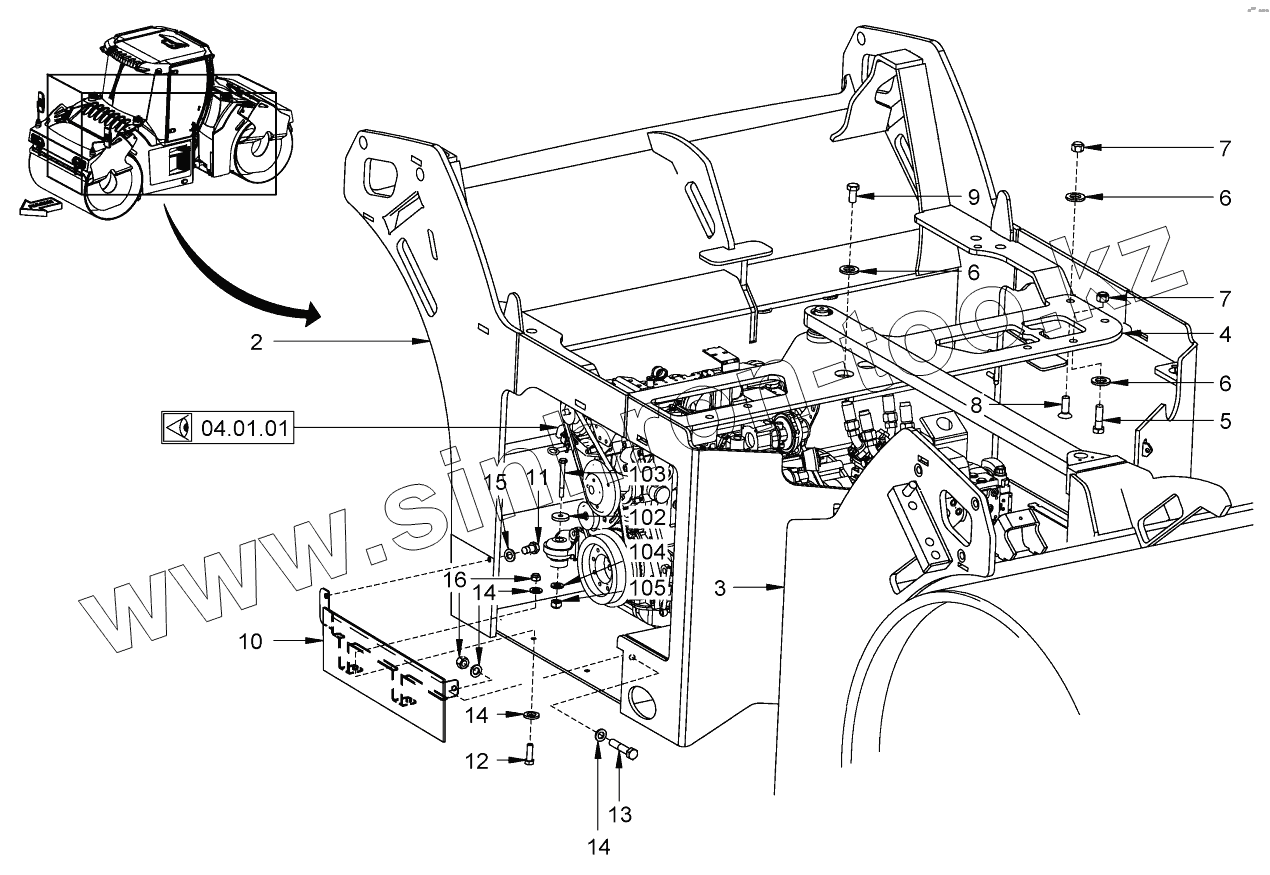

Позиция на иллюстрации
Заводской номер детали
Название детали
2
2073716
FRONT FRAME PART
3
2073717
REAR FRAME PART
4
2073749
RETAINING SHEET
5
349038
HEXAGON SCREW
6
2173175
LOCKING WASHER
7
2127027
HEXAGONAL NUT
8
2072019
COUNTERSUNK SCREW
9
1278576
HEXAGON SCREW
10
2121230
LID
11
225568
HEXAGON SCREW
12
211826
HEXAGON SCREW
13
212024
HEXAGON SCREW
14
216615
WASHER
15
267368
WASHER
16
2136712
SAFETY NUT
102
392847
WASHER
103
1209728
HEXAGON SCREW
104
381543
WASHER
105
2136712
SAFETY NUT
