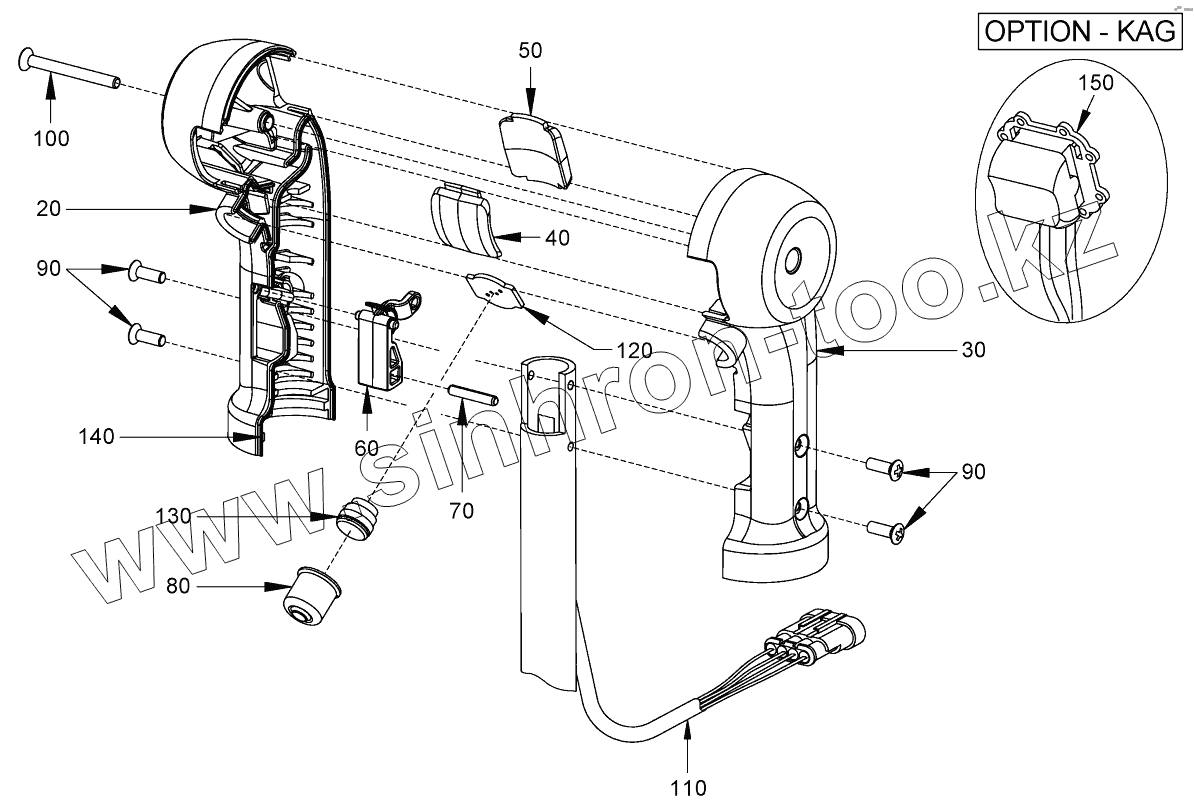

20
30
40
50
60
70
80
90
90
100
110
110
110
120
130
140
150
Позиция на иллюстрации
Заводской номер детали
Название детали
20
1512803
HANDLE
30
1512811
HANDLE
40
1512943
COVER
50
1512951
COVER
60
1512838
OPERATING LEVER
70
2051008
CLAMPING SLEEVE
80
1512862
COVER
90
393053
RAISED COUNTERSUNK HEAD SCREW
100
2020530
RAISED COUNTERSUNK HEAD SCREW
110
2120086
CABLE HARNESS RIGHT
110
2120088
CABLE HARNESS LEFT
110
2200495
WIRE HARNESS DRIVE LEVER
120
1512870
CIRCUIT BOARD
130
388955
PUSHBUTTON
140
613697
ROUND CABLE
150
2201073
ROCKER SWITCH EDGE PRESS. + CUTTING ASSEMBLY
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
