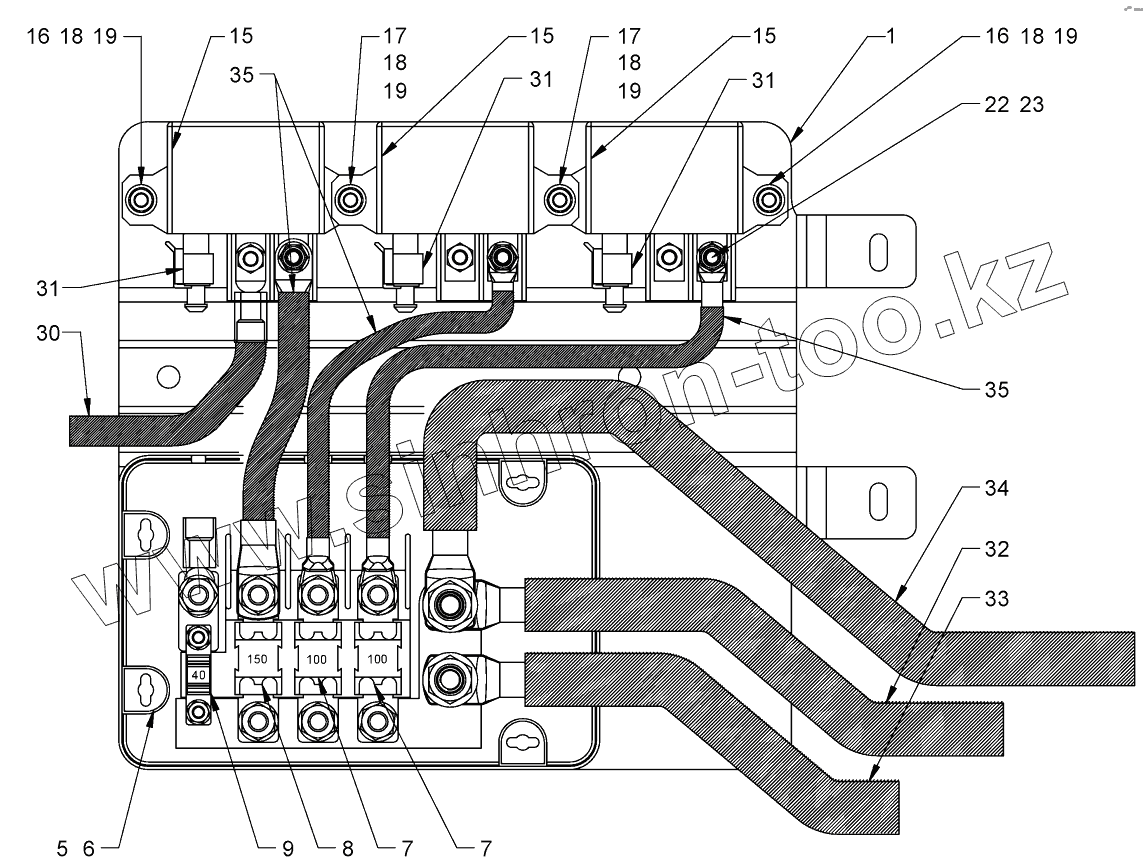

1
2093178
METAL PLATE
5
1506986
FUSE BOX
6
2127020
HEXAGONAL NUT
7
1293001
FUSE
8
1286919
FUSE
9
2054240
BLADE-TYPE FUSE 40A
15
1289829
RELAY
16
2128330
HEXAGON SCREW
17
213667
HEXAGON SCREW
18
2175169
LOCKING WASHER
19
2136710
SAFETY NUT
22
2041840
SERRATED LOCK WASHER
23
2041835
HEXAGONAL NUT
30
2090637
WIRE HARNESS PREHEATING HEATING DEVICE
31
2088555
CABLE HARNESS RELAY
32
2090640
CABLE HARNESS BATTERY
33
2090641
WIRE HARNESS STARTER STARTER
34
2090642
CABLE HARNESS ALTERNATOR
35
2090643
CABLE HARNESS RELAY
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
