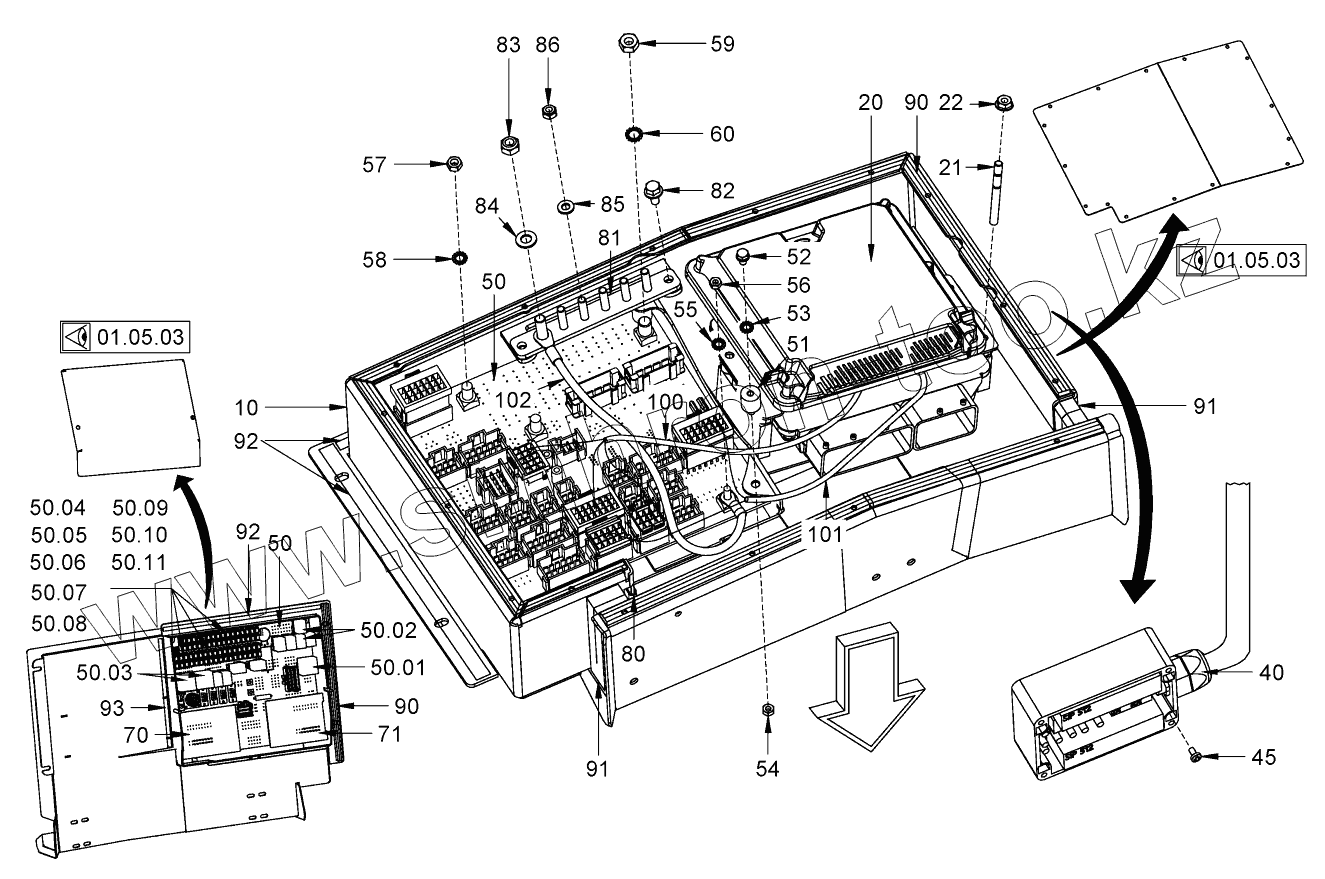

Каталог запасных частей к технике: HAMM HD110. ELECTRICAL SYSTEM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
10
20
21
22
40
45
50
50
50.01
50.02
50.03
50.04
50.05
50.06
50.07
50.08
50.09
50.10
50.11
51
52
53
54
55
56
57
58
59
60
70
71
80
81
82
83
84
85
86
90
90
91
91
92
92
93
100
101
102
Позиция на иллюстрации Заводской номер детали Название детали
10 2105171 CASE
20 2069951 CIRCUIT BOARD
21 2129165 STUD SCREW
22 2047534 HEXAGONAL NUT
40 2089009 CABLE HARNESS NOT-AUS
45 226025 FILLISTER HEAD SCREW
50 2072099 CENTRAL ELECTRIC COMPL.
50.01 282618 FLASHER RELAY
50.02 1263986 RELAY
50.03 1283391 RELAY
50.04 1263927 BLADE-TYPE FUSE 1A
50.05 2035281 BLADE-TYPE FUSE
50.06 386197 BLADE-TYPE FUSE
50.07 384046 BLADE-TYPE FUSE
50.08 384054 BLADE-TYPE FUSE 10A
50.09 384062 BLADE-TYPE FUSE 15A
50.10 384070 BLADE-TYPE FUSE 25A
50.11 1243705 BLADE-TYPE FUSE
51 1300334 RUBBER METAL BUFFER
52 387223 SAFETY SCREW
53 354589 SERRATED LOCK WASHER
54 216054 HEXAGONAL NUT
55 2041838 SERRATED LOCK WASHER
56 2041834 HEXAGONAL NUT
57 2041835 HEXAGONAL NUT
58 2041840 SERRATED LOCK WASHER
59 2041836 HEXAGONAL NUT
60 2041841 SPRING RING
70 2072100 CIRCUIT BOARD SERIE
71 2072101 CIRCUIT BOARD OPTION
80 267341 WIRE FASTENER
81 2047831 GROUND TERMINAL
82 2105250 SAFETY SCREW
83 2041836 HEXAGONAL NUT
84 2041841 SPRING RING
85 2041835 HEXAGONAL NUT
86 2136710 SAFETY NUT
90 614022 FOAM RUBBER PROFILE
91 2134885 SEALING TAPE
92 2035818 SEALING TAPE
93 2134885 SEALING TAPE
100 2074229 CABLE HARNESS OPERATOR'S PLATFORM
101 2074243 CABLE HARNESS EMR III
102 2105983 CABLE HARNESS MASSE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
