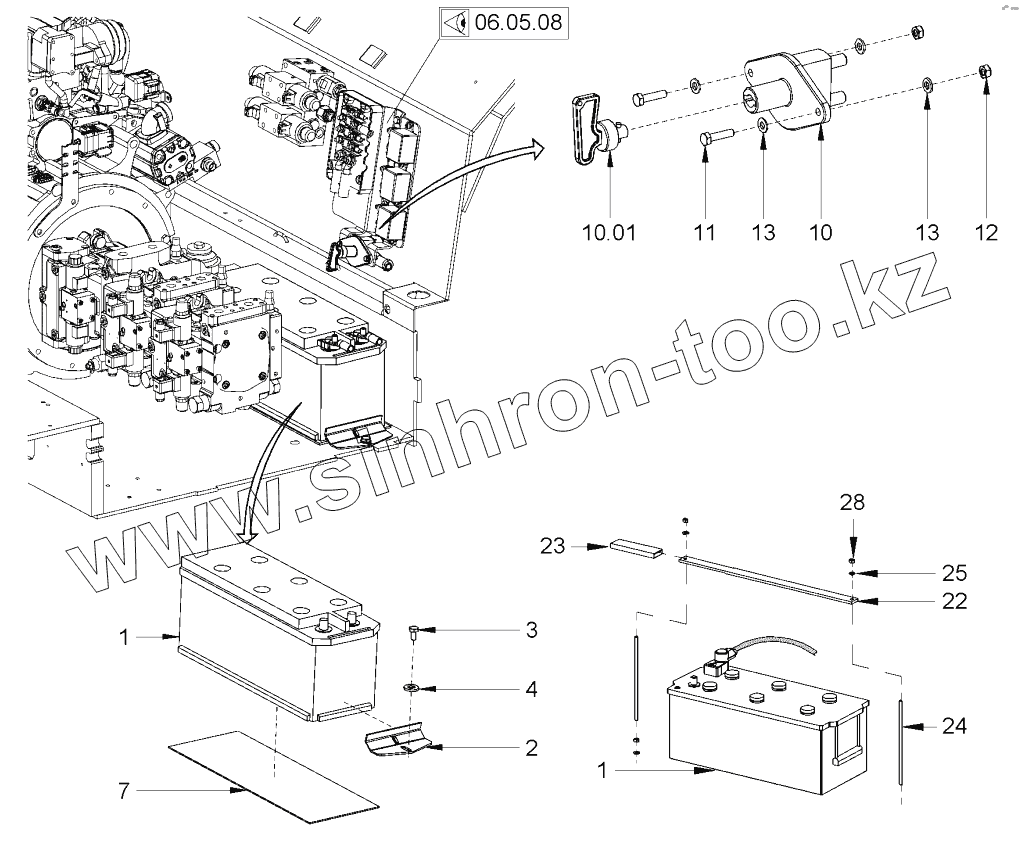

1
1
2
3
4
7
10
10.01
11
12
13
13
22
23
24
25
28
Позиция на иллюстрации
Заводской номер детали
Название детали
1
2323965
BATTERY
2
1402242
HOLDER
3
2119445
HEXAGON SCREW
4
216607
WASHER
7
2129395
RUBBER PLATE
10
394319
BATTERY ISOLATING SWITCH
10.01
1203894
KEY
11
213721
HEXAGON SCREW
12
2127017
HEXAGONAL NUT
13
2175169
LOCKING WASHER
22
2251207
FIXATION
23
2149736
SHRINKDOWN PLASTIC TUBING
24
2290595
FIXATION
25
2175172
LOCKING WASHER
28
1234501
NUT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
