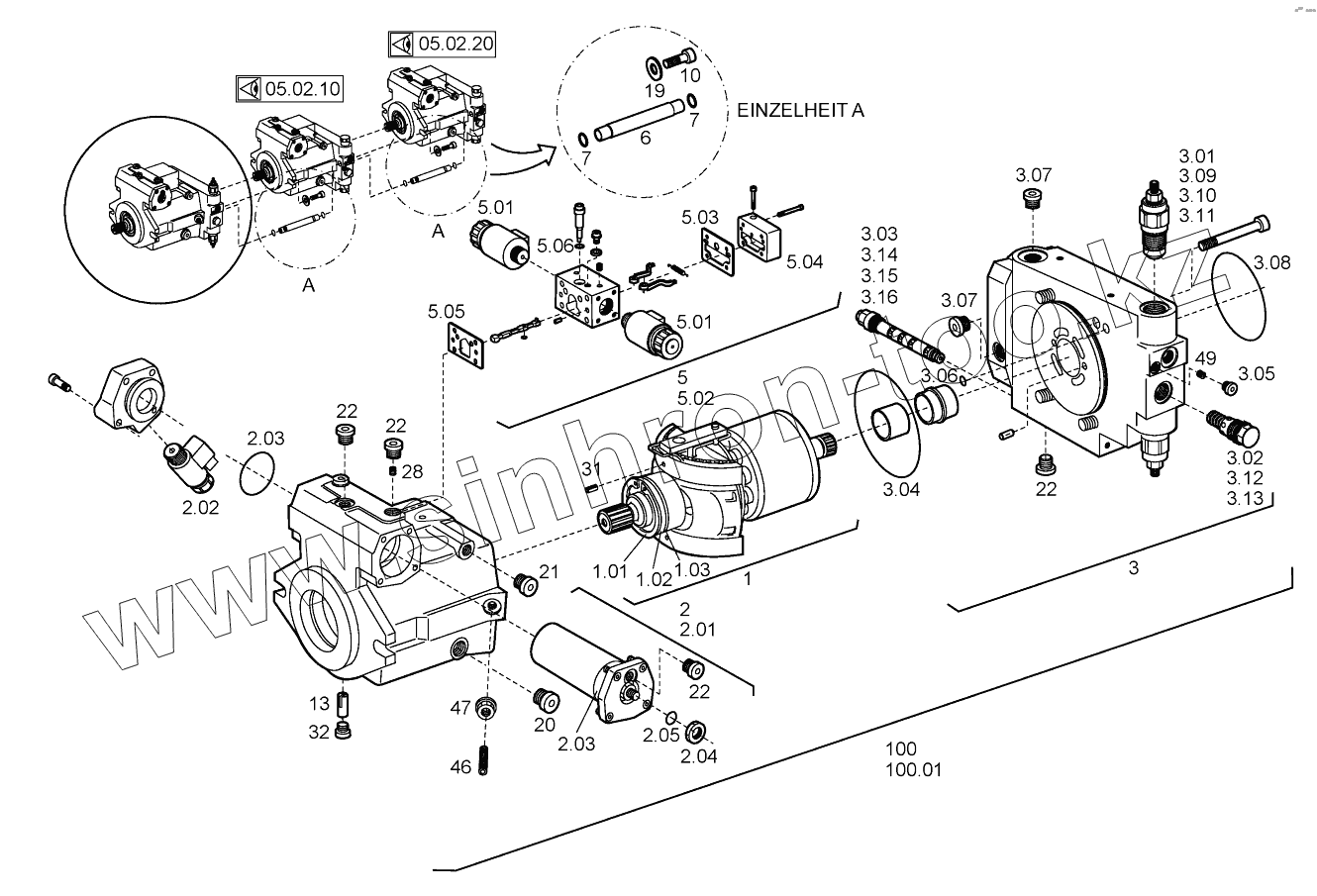

Каталог запасных частей к технике: HAMM HD110. DRIVING GEAR (VARIABLE DISPLACEMENT PUMP - DRIVE)
1
1
1
1
1.01
1.02
1.03
2
2.01
2.02
2.03
2.03
2.04
2.05
3
3.01
3.02
3.03
3.04
3.05
3.06
3.07
3.07
3.08
3.09
3.10
3.11
3.12
3.13
3.14
3.15
3.16
5
5
5
5
5.01
5.01
5.02
5.03
5.04
5.05
5.06
6
7
7
10
13
19
20
21
22
22
22
22
28
31
32
46
47
49
100
100
100
100.01
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2267902 | DRIVING GEAR VERSION,VT, VT-S | |
| 1 | 2160983 | DRIVING GEAR VERSION,VT, VT-S | |
| 1 | 2160983 | DRIVING GEAR NOT VERSION,VT, VT-S | |
| 1 | 2267902 | DRIVING GEAR NOT VERSION,VT, VT-S | |
| 1.01 | 1292900 | CIRCLIP | |
| 1.02 | 1277960 | SHAFT SEAL | |
| 1.03 | 2160996 | CIRCLIP | |
| 2 | 2160985 | HYDRAULIC REGULATION COMPL. | |
| 2.01 | 2073458 | SET OF SEALS | |
| 2.02 | 2160997 | SOLENOID VALVE | |
| 2.03 | 1215493 | O-RING SEAL | |
| 2.04 | 2125629 | HEXAGONAL NUT | |
| 2.05 | 360430 | O-RING SEAL | |
| 3 | 2160987 | JOINT PLATE COMPL. | |
| 3.01 | 1277979 | PRESSURE-RELIEF VALVE | |
| 3.02 | 1278630 | FEEDING PRESSURE VALVE | |
| 3.03 | 1268082 | CUT-OFF VALVE | |
| 3.04 | 1277987 | O-RING SEAL | |
| 3.05 | 1222023 | LOCKING SCREW | |
| 3.06 | 242802 | O-RING SEAL | |
| 3.07 | 360066 | LOCKING SCREW | |
| 3.08 | 390020 | O-RING SEAL | |
| 3.09 | 1202782 | O-RING SEAL | |
| 3.10 | 360597 | O-RING SEAL | |
| 3.11 | 1223216 | SEAL NUT | |
| 3.12 | 2160998 | LOCKING SCREW | |
| 3.13 | 1202782 | O-RING SEAL | |
| 3.14 | 1223216 | SEAL NUT | |
| 3.15 | 360597 | O-RING SEAL | |
| 3.16 | 202185 | O-RING SEAL | |
| 5 | 2200911 | AUTOMATIC CONTROLLER VERSION,VT, VT-S | |
| 5 | 2160988 | AUTOMATIC CONTROLLER NOT VERSION,VT, VT-S | |
| 5 | 2160988 | AUTOMATIC CONTROLLER VERSION,VT, VT-S | |
| 5 | 2200911 | AUTOMATIC CONTROLLER NOT VERSION,VT, VT-S | |
| 5.01 | 2122294 | MAGNET | |
| 5.02 | 2046734 | SET OF SEALS | |
| 5.03 | 2125641 | SEALING | |
| 5.04 | 2057262 | COVER WITH FILTER | |
| 5.05 | 2125657 | SEALING | |
| 5.06 | 1278444 | O-RING SEAL | |
| 6 | 2160982 | CONNECTION PIPE | |
| 7 | 1215930 | O-RING SEAL | |
| 10 | 214647 | CHEESE-HEAD SCREW | |
| 13 | 2160991 | PIN | |
| 19 | 1254022 | WASHER | |
| 20 | 1203142 | LOCKING SCREW | |
| 21 | 1203150 | LOCKING SCREW | |
| 22 | 360066 | LOCKING SCREW | |
| 28 | 1257129 | NOZZLE | |
| 31 | 1223089 | PIN | |
| 32 | 1203169 | LOCKING SCREW | |
| 46 | 1287389 | THREADED PIN | |
| 47 | 1223208 | SEAL NUT | |
| 49 | 1223054 | NOZZLE | |
| 100 | 2381118 | VARIABLE DISPLAC. PUMP (DRIVE) VERSION,VT, VT-S | |
| 100 | 2161538 | VARIABLE DISPLAC. PUMP (DRIVE) VERSION,VT, VT-S | |
| 100 | 2161538 | VARIABLE DISPLAC. PUMP (DRIVE) VERSION,VT, VT-S | |
| 100.01 | 2161007 | SET OF SEALS |
