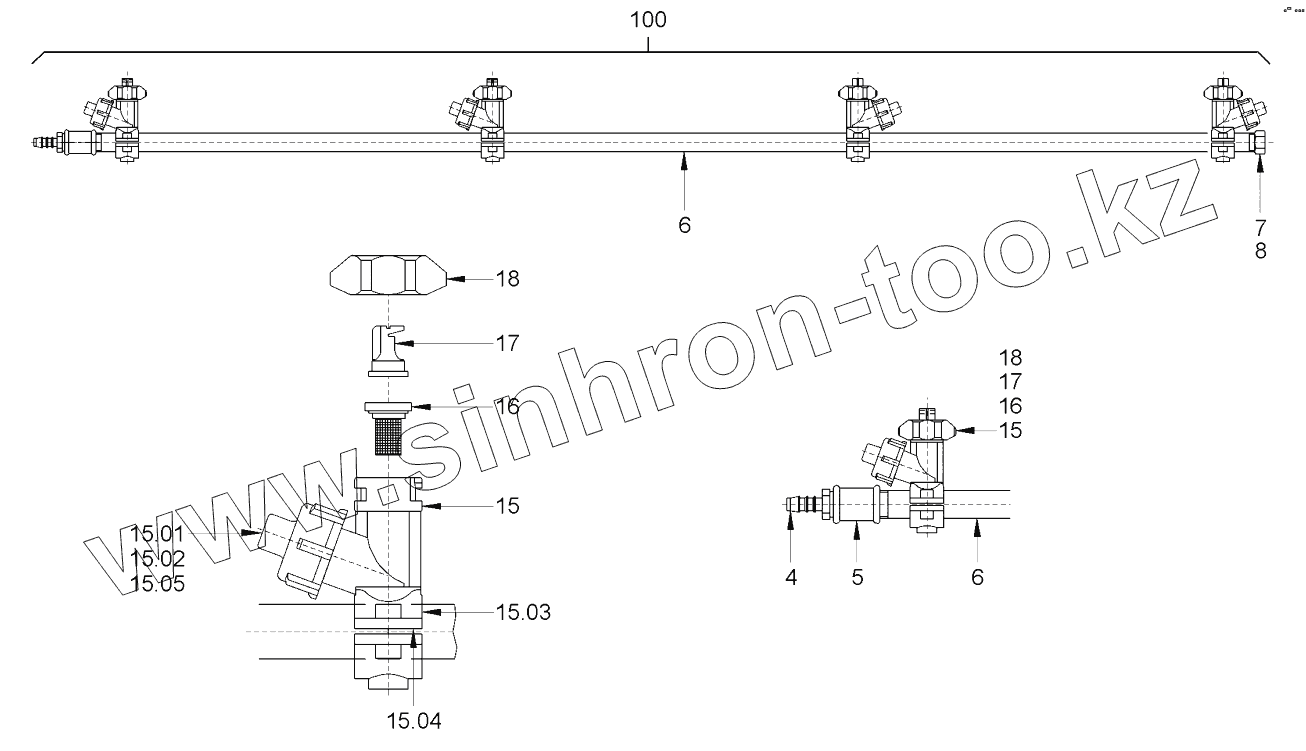

4
5
6
6
7
8
15
15
15.01
15.02
15.03
15.04
15.05
16
16
17
17
18
18
100
Позиция на иллюстрации
Заводской номер детали
Название детали
4
1234447
STRAIGHT SCREWED SOCKET
5
226947
FITTING
6
1461710
SPRINKLER PIPE
7
1226002
CAP
8
1225995
SEALING RING
15
1232770
NOZZLE HOLDER COMPL.
15.01
2048137
MEMBRANE
15.02
1236059
UNION NUT
15.03
1202820
O-RING SEAL
15.04
1272810
SHEET METAL SCREW
15.05
1297198
MEMBRANE HOLDER
16
1212281
FILTERING SCREEN
17
1212257
SPRINKLER NOZZLE
18
1212273
NUT
100
1706071
SPRINKLER PIPE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
