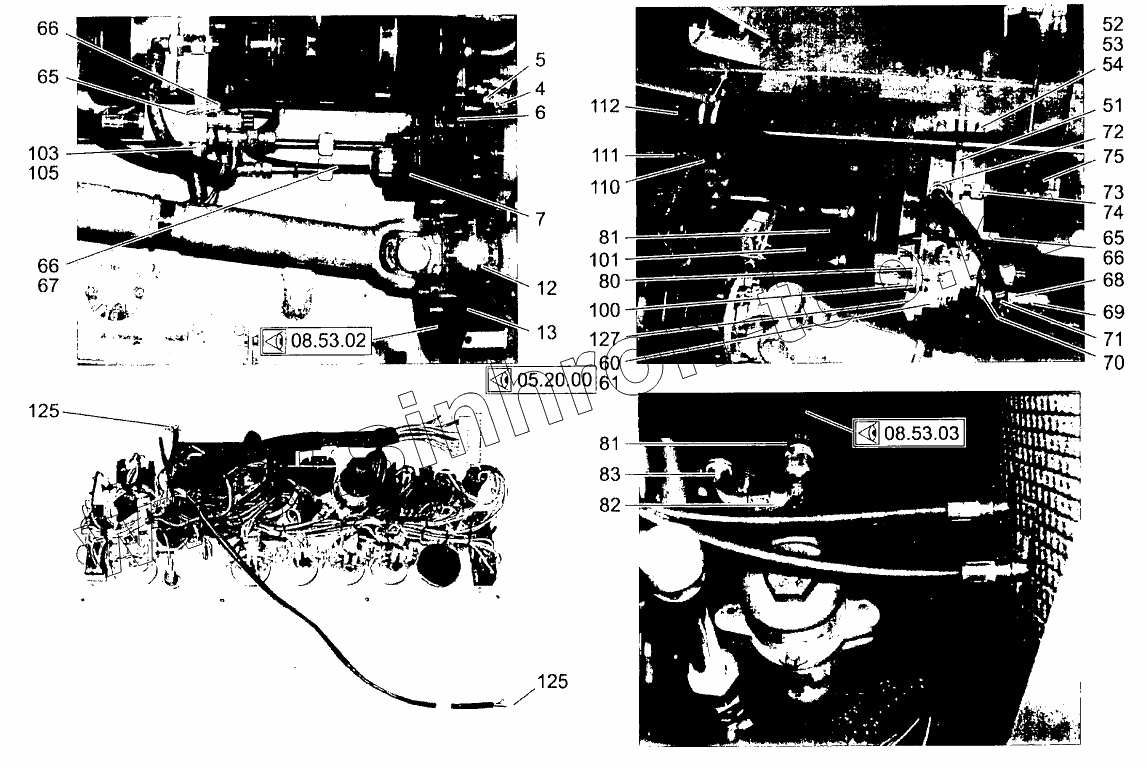

Каталог запасных частей к технике: HAMM GRW 24. PARKING BRAKE
4
5
6
7
12
13
51
52
53
54
60
61
65
65
66
66
66
67
68
69
70
71
72
73
74
75
80
81
81
82
83
100
101
103
105
110
111
112
125
125
127
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4 | 1524143 | INTERMEDIATE PLATE | |
| 5 | 356255 | CHEESE-HEAD SCREW | |
| 6 | 1296361 | ANCHOR PLATE | |
| 7 | 1296353 | CALIPER | |
| 12 | 1524151 | CONNECTING FLANGE | |
| 13 | 1524135 | BRAKE DISK | |
| 51 | 891983 | HOLDER | |
| 52 | 213756 | HEXAGON SCREW | |
| 53 | 345490 | WASHER | |
| 54 | 216682 | SPRING RING | |
| 60 | 1297066 | CONTROL BLOCK COMPL. | |
| 61 | 340499 | CHEESE-HEAD SCREW | |
| 65 | 1242547 | STRAIGHT SCREWED SOCKET | |
| 66 | 1297058 | HOSE | |
| 67 | 205303 | STRAIGHT SCREWED SOCKET | |
| 68 | 350648 | ELBOW ADJUSTABLE | |
| 69 | 2048526 | CONNECTOR FOR MEASUREMENT | |
| 70 | 317179 | STRAIGHT SCREWED SOCKET | |
| 71 | 386758 | HOSE | |
| 72 | 317926 | BULKHEAD ELBOW | |
| 73 | 317993 | HEXAGONAL NUT | |
| 74 | 382280 | STRAIGHT SCREWED SOCKET | |
| 75 | 210811 | HYDRAULIC ACCUMULATOR | |
| 80 | 396710 | STRAIGHT SCREWED SOCKET | |
| 81 | 1288822 | HOSE | |
| 82 | 350648 | ELBOW ADJUSTABLE | |
| 83 | 396923 | HOSE | |
| 100 | 317179 | STRAIGHT SCREWED SOCKET | |
| 101 | 384402 | HOSE | |
| 103 | 317152 | STRAIGHT SCREWED SOCKET | |
| 105 | 1297767 | PRESSURE SWITCH | |
| 110 | 387320 | ELBOW ADJUSTABLE | |
| 111 | 1298356 | SCREW CONNECTION | |
| 112 | 1298372 | PRESSURE SWITCH | |
| 125 | 898945 | CABLE HARNESS | |
| 127 | 898643 | CABLE HARNESS |
