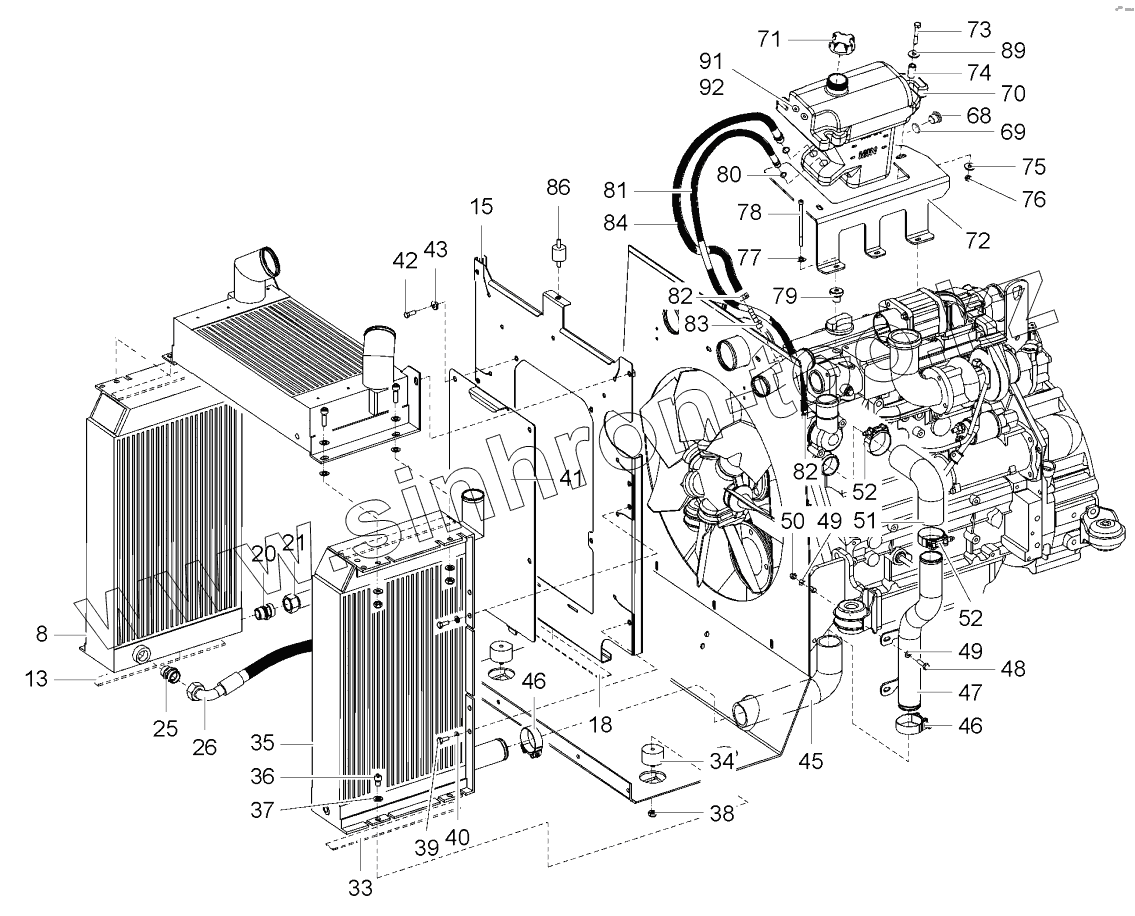

Каталог запасных частей к технике: HAMM GRW 24. COOLING (ENGINE/HYDRAULIC OIL)
8
13
15
18
20
21
25
26
33
34
35
36
37
38
39
40
41
42
43
45
46
46
47
48
49
49
50
51
52
52
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
82
83
84
86
89
91
92
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 8 | 1480901 | HYDRAULIC OIL COOLER | |
| 13 | 2035818 | SEALING TAPE | |
| 15 | 2054623 | METAL PLATE | |
| 18 | 2035818 | SEALING TAPE | |
| 20 | 315702 | STRAIGHT SCREWED SOCKET | |
| 21 | 1292293 | HOSE | |
| 25 | 315702 | STRAIGHT SCREWED SOCKET | |
| 26 | 1265814 | HOSE | |
| 33 | 2035818 | SEALING TAPE | |
| 34 | 200956 | RUBBER METAL BUFFER | |
| 35 | 1480898 | WATER COOLER | |
| 36 | 245569 | CHEESE-HEAD SCREW | |
| 37 | 2175174 | LOCKING WASHER | |
| 38 | 2127021 | HEXAGONAL NUT | |
| 39 | 2119339 | HEXAGON SCREW | |
| 40 | 231355 | WASHER | |
| 41 | 1488627 | LID | |
| 42 | 2119339 | HEXAGON SCREW | |
| 43 | 231355 | WASHER | |
| 45 | 1504460 | HOSE | |
| 46 | 1214357 | HOSE CLAMP | |
| 47 | 884960 | PIPE | |
| 48 | 2540236 | HEXAGON SCREW | |
| 49 | 231355 | WASHER | |
| 50 | 1209302 | SAFETY NUT | |
| 51 | 1504452 | HOSE | |
| 52 | 1214357 | HOSE CLAMP | |
| 68 | 242640 | LOCKING SCREW | |
| 69 | 272078 | O-RING SEAL | |
| 70 | 2039948 | COMPENSATOR TANK | |
| 71 | 1241648 | TANK CAP | |
| 72 | 1519115 | HOLDER | |
| 73 | 2540241 | HEXAGON SCREW | |
| 74 | 1501240 | PIPE | |
| 75 | 260983 | WASHER | |
| 76 | 1209302 | SAFETY NUT | |
| 77 | 1291335 | WASHER | |
| 78 | 231185 | CHEESE-HEAD SCREW | |
| 79 | 1519123 | DISTANCE BUSH | |
| 80 | 1226282 | O-RING SEAL | |
| 81 | 2039115 | HOSE | |
| 82 | 225770 | HOSE CLAMP | |
| 83 | 319678 | HOSE NOZZLE | |
| 84 | 2065480 | HOSE | |
| 86 | 200883 | RUBBER METAL BUFFER | |
| 89 | 2101536 | CLAMPING PIECE | |
| 91 | 341266 | LOCKING SCREW | |
| 92 | 1226282 | O-RING SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
