Каталог запасных частей к технике: HAMM GRW 24. AIR CONDITIONING
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
3410 (2015)
3410 (2021)
3411 (2015)
3411 (2021)
3516 (2008)
3518 (2008)
3520 (2008)
GRW 10
GRW 10 (2009)
GRW 15
GRW 15 (2009)
GRW 18
GRW 18 (2009)
GRW 21
GRW 21 (2009)
GRW 24
GRW 24 (2009)
HD110 (2021)
HD90 (2021)
Схема
>
Не выбрано
MAIN FRAME AND ASSEMBLIES
MAIN FRAME AND ASSEMBLIES
MAIN FRAME AND ASSEMBLIES
STICKER ARRANGEMENT
STICKER ARRANGEMENT
STICKER ARRANGEMENT
STICKER ARRANGEMENT
STICKER ARRANGEMENT
SOUND-INSULATION
SOUND-INSULATION
SOUND-INSULATION
ADDITIONAL LOAD VERSION, GRW15, GRW18
ADDITIONAL LOAD VERSION, GRW21, GRW24
ROLL OVER PROTECTION
ROLL OVER PROTECTION
FOPS
INSTRUMENT PANEL COVERING
OPERATOR'S CABIN
CABIN-HEATING
CABIN-HEATING
AIR CONDITIONING
AIR CONDITIONING
AIR CONDITIONING
ENGINE AND CONVERTER ASSEMBLY
ENGINE AND CONVERTER ASSEMBLY
ENGINE AND CONVERTER ASSEMBLY
ENGINE AND CONVERTER ASSEMBLY
FUEL SYSTEM
FUEL SYSTEM
FUEL FILTER
FUEL FILTER
ENGINE CONTROL
AIR FILTER SYSTEM
EXHAUST SYSTEM
COOLING (ENGINE/HYDRAULIC OIL)
COOLING (ENGINE/HYDRAULIC OIL)
COOLER (BOOST AIR)
CONVERTER
CONVERTER AND TRANSMISSION CASE
GEAR WHEELS AND MULTI-DISC CLUTCHES
MULTI-DISC CLUTCH - 1ST GEAR
MULTI-DISC CLUTCH - FORWARD SPEED
MULTI-DISC CLUTCH - 3RD GEAR
MULTI-DISC CLUTCH - REVERSE GEAR AND 2ND GEAR
CONTROL VALVE
DAMPING VALVE
VALVE BLOCK (PARKING BRAKE)
INSTRUMENT PANEL
ELECTRICAL SYSTEM (WITH LIGHTING)
ELECTRICAL SYSTEM (WITH LIGHTING)
ELECTRICAL SYSTEM (WITH LIGHTING)
ELECTRICAL SYSTEM (WITH LIGHTING)
ELECTRICAL SYSTEM (WITH LIGHTING)
ELECTRICAL SYSTEM (WITH LIGHTING)
ELECTRICAL SYSTEM (OPERATOR'S CABIN)
ELECTRICAL SYSTEM (RADIO)
FRONT WHEEL SUSPENSION - HYDRAULIC VERTICAL ADJUSTMENT VERSION WITHOUT BRAKE
FRONT WHEEL SUSPENSION - HYDRAULIC VERTICAL ADJUSTMENT VERSION WITH BRAKE
FRONT WHEEL SUSPENSION - HYDRAULIC VERTICAL ADJUSTMENT VERSION WITH BRAKE
FFRONT WHEEL SUSPENSION - HYDRAULIC VERTICAL ADJUSTMENT
DIFFERENTIAL
TIRE EQUIPMENT
ADVANCE DRIVE
DRIVE SHIFTING
FOOT BRAKE SINGLE-CIRCUIT
FOOT BRAKE SINGLE-CIRCUIT
FOOT BRAKE OPTIONAL
FOOT BRAKE OPTIONAL
FOOT BRAKE OPTIONAL
PARKING BRAKE
PARKING BRAKE
PARKING BRAKE
PARKING BRAKE
SERVO BRAKE
STEERING
STEERING
SPRINKLING
SPRINKLING
SPRINKLING
WATER FILTER
DOUBLE STEERING
TIRE FILLING SYSTEM
TIRE-HEATING
TIRE-HEATING
ELECTRICAL SYSTEM (TIRE-HEATING)
SCRAPER (FRONT) BRUSH
SCRAPER (REAR) BRUSH
SCRAPER (FRONT) PLASTIC
SCRAPER (REAR) PLASTIC
EDGE PRESSING AND CUTTING DEVICE
EDGE PRESSING AND CUTTING DEVICE
ADD-ON PIECES (EDGE PRESSING AND CUTTING DEVICE)
HYDRAULIC SYSTEM (EDGE PRESSING AND CUTTING DEVICE)
SPRINKLING (EDGE PRESSING AND CUTTING DEVICE)
THERMAL SCUFFLE
SIDE LAMP FOR THERMAL SCUFFLE
SUN ROOF VERSION WITH,ROPS
SUN ROOF VERSION WITHOUT,ROPS
SUN ROOF VERSION WITHOUT,ROPS
HANDLES
WATER PUMP
DOUBLE FOOT BRAKE
SPARE WHEEL WITH WHEEL CARRIER
FILLER CAP WITH C-COUPLING
DOUBLE DRIVE SHIFTING
DOUBLE ENGINE CONTROL
WARNING LIGHT CABIN
WARNING LIGHT SUN CANOPY
WARNING LIGHT ROPS
BACK-UP ALARM (BACK-UP)
SPEEDOMETER
ASPHALT THERMOMETER
WIFMS INTERFACE
FIRE EXTINGUISHER
HOMOLOGATION
MAINTENANCE KITS AND REPAIR KITS

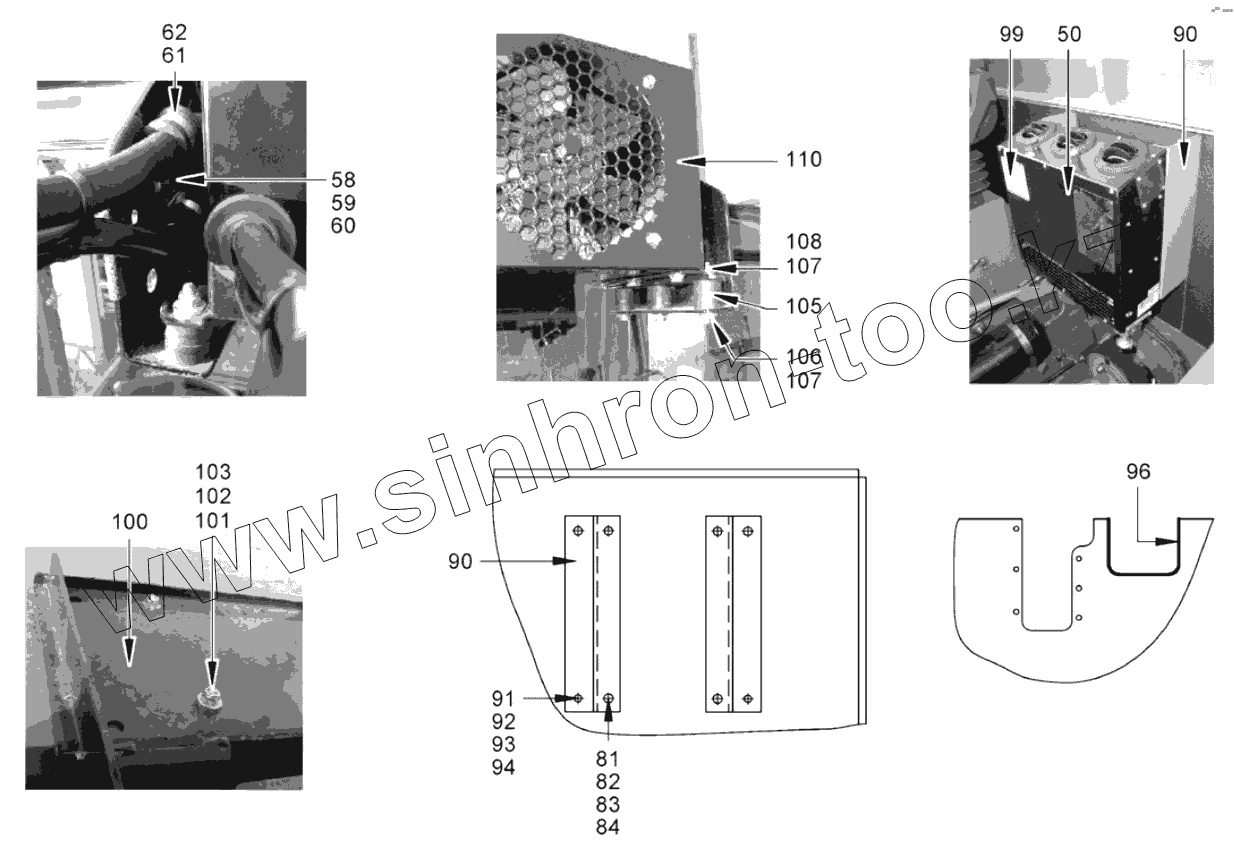

50
58
59
60
61
62
81
82
83
84
90
90
91
92
93
94
96
99
100
101
102
103
105
106
107
107
108
110
Позиция на иллюстрации
Заводской номер детали
Название детали
50
1248448
VAPORIZER
58
339180
HEXAGON SCREW
59
216593
WASHER
60
1209302
SAFETY NUT
61
1200305
PIPE CLIP
62
1208411
PIPE CLIP
81
228893
FILLISTER HEAD SCREW
82
354589
SERRATED LOCK WASHER
83
216054
HEXAGONAL NUT
84
284882
WASHER
90
1484893
METAL PLATE
91
213721
HEXAGON SCREW
92
350389
WASHER
93
231355
WASHER
94
2257942
HEXAGONAL NUT
96
269506
EDGE PROTECTION
99
1502301
LABEL
100
848727
HOLDER
101
231355
WASHER
102
213829
HEXAGON SCREW
103
1241672
BLIND RIVET NUT
105
364770
RUBBER METAL BUFFER
106
2119327
HEXAGON SCREW
107
216593
WASHER
108
2127020
HEXAGONAL NUT
110
1251856
CONDENSER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
