Каталог запасных частей к технике: HAMM GRW 18. THERMAL SCUFFLE
1
2
3
5
5
6
7
8
8
9
9
10
10
10
11
11
15
16
17
18
19
19
20
21
22
22
23
23
23
24
24
24
24
25
25
26
26
27
28
29
31
32
33
34
35
38
39
40
41
42
45
50
50
50
51
51
52
52
56
56
56
60

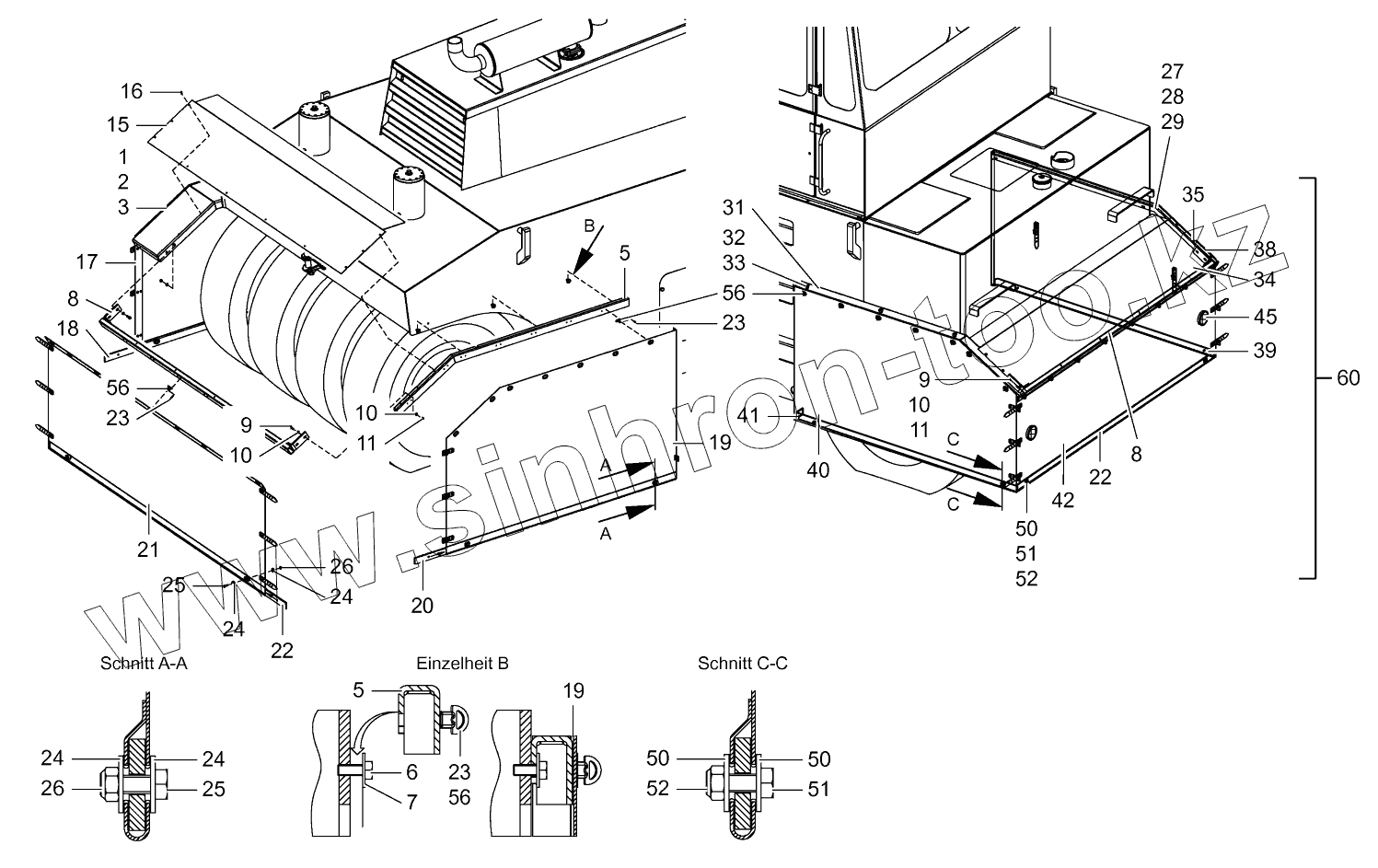

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 755087 | HOLDER | |
| 2 | 2119339 | HEXAGON SCREW | |
| 3 | 260983 | WASHER | |
| 5 | 755079 | HOLDER | |
| 6 | 2119339 | HEXAGON SCREW | |
| 7 | 260983 | WASHER | |
| 8 | 755125 | BRACE | |
| 9 | 213829 | HEXAGON SCREW | |
| 10 | 216593 | WASHER | |
| 11 | 2588139 | SAFETY NUT | |
| 15 | 416398 | COVER | |
| 16 | 249467 | SHEET METAL SCREW | |
| 17 | 755109 | THERMAL SCUFFLE | |
| 18 | 416517 | FLAT STEEL | |
| 19 | 755095 | THERMAL SCUFFLE | |
| 20 | 416495 | FLAT STEEL | |
| 21 | 755117 | THERMAL SCUFFLE | |
| 22 | 664324 | FLAT STEEL | |
| 23 | 262285 | BOLT RIVET | |
| 24 | 260983 | WASHER | |
| 25 | 213829 | HEXAGON SCREW | |
| 26 | 2588139 | SAFETY NUT | |
| 27 | 755141 | HOLDER | |
| 28 | 2119339 | HEXAGON SCREW | |
| 29 | 260983 | WASHER | |
| 31 | 755133 | HOLDER | |
| 32 | 2119339 | HEXAGON SCREW | |
| 33 | 260983 | WASHER | |
| 34 | 416452 | COVER | |
| 35 | 249467 | SHEET METAL SCREW | |
| 38 | 755184 | THERMAL SCUFFLE | |
| 39 | 416495 | FLAT STEEL | |
| 40 | 755176 | THERMAL SCUFFLE | |
| 41 | 416509 | FLAT STEEL | |
| 42 | 755168 | THERMAL SCUFFLE | |
| 45 | 221074 | REAR REFLECTOR | |
| 50 | 260983 | WASHER | |
| 51 | 213829 | HEXAGON SCREW | |
| 52 | 2588139 | SAFETY NUT | |
| 56 | 285080 | ROTARY LOCK | |
| 60 | 761192 | THERMAL APRONS |
