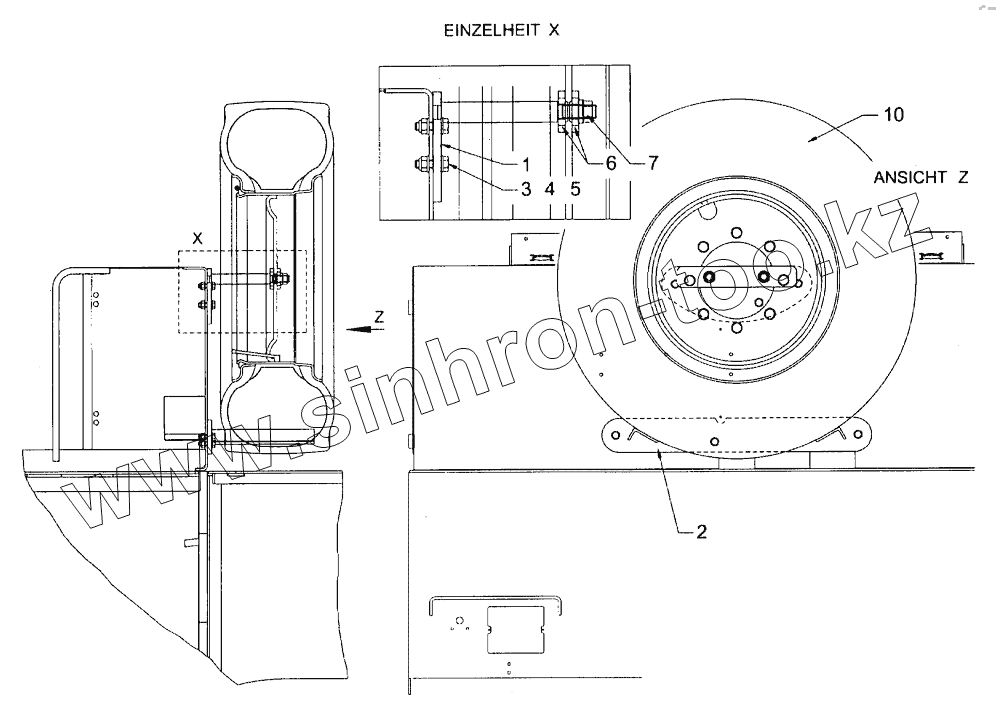

Каталог запасных частей к технике: HAMM GRW 15. SPARE WHEEL WITH WHEEL CARRIER

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 3410 (2015) 3410 (2021) 3411 (2015) 3411 (2021) 3516 (2008) 3518 (2008) 3520 (2008) GRW 10 GRW 10 (2009) GRW 15 GRW 15 (2009) GRW 18 GRW 18 (2009) GRW 21 GRW 21 (2009) GRW 24 GRW 24 (2009) HD110 (2021) HD90 (2021)

Схема > Не выбрано MAIN FRAME AND ASSEMBLIES MAIN FRAME AND ASSEMBLIES MAIN FRAME AND ASSEMBLIES STICKER ARRANGEMENT STICKER ARRANGEMENT SOUND-INSULATION SOUND-INSULATION SOUND-INSULATION ADDITIONAL LOAD VERSION GRW 15, GRW 18 ADDITIONAL LOAD VERSION GRW 21, GRW 24 ROLL OVER PROTECTION ROLL OVER PROTECTION FOPS INSTRUMENT PANEL COVERING OPERATOR'S CABIN CABIN-HEATING CABIN-HEATING AIR CONDITIONING AIR CONDITIONING ENGINE AND CONVERTER ASSEMBLY ENGINE AND CONVERTER ASSEMBLY ENGINE AND CONVERTER ASSEMBLY ENGINE AND CONVERTER ASSEMBLY FUEL SYSTEM FUEL FILTER ENGINE CONTROL AIR FILTER SYSTEM EXHAUST SYSTEM COOLING (ENGINE/HYDRAULIC OIL) COOLING (ENGINE/HYDRAULIC OIL) COOLER (BOOST AIR) CONVERTER CONVERTER AND TRANSMISSION CASE GEAR WHEELS AND MULTI-DISC CLUTCHES MULTI-DISC CLUTCH - 1ST GEAR MULTI-DISC CLUTCH - FORWARD SPEED MULTI-DISC CLUTCH - 3RD GEAR MULTI-DISC CLUTCH - REVERSE GEAR AND 2ND GEAR CONTROL VALVE DAMPING VALVE VALVE BLOCK (PARKING BRAKE) INSTRUMENT PANEL ELECTRICAL SYSTEM (WITH LIGHTING) ELECTRICAL SYSTEM (WITH LIGHTING) ELECTRICAL SYSTEM (WITH LIGHTING) ELECTRICAL SYSTEM (WITH LIGHTING) ELECTRICAL SYSTEM (WITH LIGHTING) ELECTRICAL SYSTEM (WITH LIGHTING) ELECTRICAL SYSTEM (OPERATOR'S CABIN) ELECTRICAL SYSTEM (RADIO) FRONT WHEEL SUSPENSION - HYDRAULIC VERTICAL ADJUSTMENT VERSION WITHOUT BRAKE FRONT WHEEL SUSPENSION - HYDRAULIC VERTICAL ADJUSTMENT VERSION WITH BRAKE FRONT WHEEL SUSPENSION - HYDRAULIC VERTICAL ADJUSTMENT VERSION WITH BRAKE FRONT WHEEL SUSPENSION - HYDRAULIC VERTICAL ADJUSTMENT DIFFERENTIAL TIRE EQUIPMENT DRIVE DRIVE SHIFTING FOOT BRAKE SINGLE-CIRCUIT FOOT BRAKE SINGLE-CIRCUIT FOOT BRAKE TWO-CIRCUIT OPTIONAL FOOT BRAKE TWO-CIRCUIT OPTIONAL FOOT BRAKE TWO-CIRCUIT OPTIONAL PARKING BRAKE PARKING BRAKE PARKING BRAKE PARKING BRAKE SERVO BRAKE STEERING STEERING SPRINKLING SPRINKLING SPRINKLING WATER FILTER DOUBLE STEERING TIRE FILLING SYSTEM TIRE-HEATING TIRE-HEATING ELECTRICAL SYSTEM (TIRE-HEATING) SCRAPER (FRONT) BRUSH SCRAPER(REAR) BRUSH SCRAPER (FRONT) PLASTIC SCRAPER (REAR) PLASTIC EDGE PRESSING AND CUTTING DEVICE EDGE PRESSING AND CUTTING DEVICE ADD-ON PIECES (EDGE PRESSING AND CUTTING DEVICE) HYDRAULIC SYSTEM (EDGE PRESSING AND CUTTING DEVICE) SPRINKLING (EDGE PRESSING AND CUTTING DEVICE) THERMAL SCUFFLE SIDE LAMP FOR THERMAL SCUFFLE SUN ROOF VERSION WITH ROPS SUN ROOF VERSION WITHOUT ROPS LAMP PROTECTION HANDLES DOUBLE FOOT BRAKE SPARE WHEEL WITH WHEEL CARRIER FILLER CAP WITH C-COUPLING DOUBLE DRIVE SHIFTING DOUBLE ENGINE CONTROL WARNING LIGHT CABIN WARNING LIGHT SUN ROOF WARNING LIGHT ROPS BACK-UP ALARM (BACK-UP) SPEEDOMETER ASPHALT THERMOMETER TUV ITALY

1

2

3

4

5

6

7

10

10

10

Позиция на иллюстрации	Заводской номер детали		Название детали
1	850810		HOLDER SYSTEM
2	850829		HOLDER SYSTEM
3	213985		HEXAGON SCREW
4	216461		HEXAGONAL NUT
5	216615		WASHER
6	1471929		FLAT STEEL
7	216429		WHEEL NUT
10	831905		WHEEL COMPL.,DUNLOP
10	850659		WHEEL COMPL.,MICHELIN
10	2095429		WHEEL COMPL.,MITAS

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
