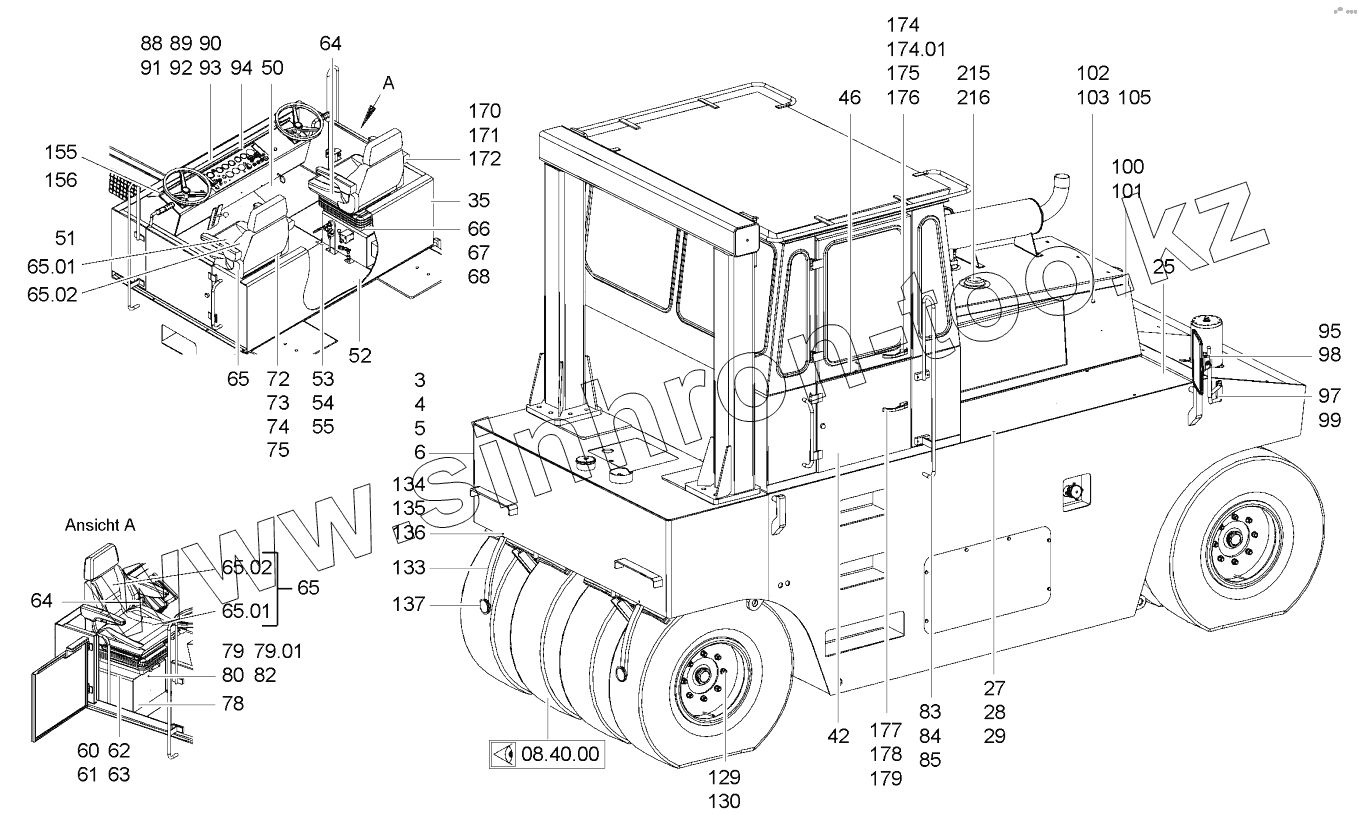

Каталог запасных частей к технике: HAMM GRW 15. MAIN FRAME AND ASSEMBLIES
3
4
5
6
25
27
28
29
35
42
46
50
51
52
53
54
55
60
61
62
63
64
64
65
65
65.01
65.01
65.02
65.02
66
67
68
72
73
74
75
78
78
79
79.01
80
82
82
83
84
85
88
89
90
91
92
93
94
95
97
98
99
100
101
102
103
105
129
130
133
134
135
136
137
155
156
170
171
172
174
174.01
175
176
177
178
179
215
216
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 3 | 813982 | REAR FRAME PART | |
| 4 | 388211 | HEXAGON SCREW | |
| 5 | 216607 | WASHER | |
| 6 | 2588141 | SAFETY NUT | |
| 25 | 754382 | COVER SHEET | |
| 27 | 1209965 | HEXAGON SCREW | |
| 28 | 276243 | LOCKING WASHER | |
| 29 | 216607 | WASHER | |
| 35 | 846538 | OPERATOR'S PLATFORM | |
| 42 | 766615 | DOOR RIGHT | |
| 46 | 276766 | SEALING PROFILE | |
| 50 | 411639 | METAL PLATE | |
| 51 | 754269 | BASE SHEET | |
| 52 | 411612 | METAL PLATE | |
| 53 | 1209965 | HEXAGON SCREW | |
| 54 | 216607 | WASHER | |
| 55 | 276243 | LOCKING WASHER | |
| 60 | 754242 | SEAT PEDESTAL | |
| 61 | 1209965 | HEXAGON SCREW | |
| 62 | 276243 | LOCKING WASHER | |
| 63 | 216607 | WASHER | |
| 64 | 1254413 | LAP BELT | |
| 65 | 2056436 | OPERATORґS SEAT | |
| 65.01 | 1227726 | SEAT CUSHION, IMITAT. LEATHER | |
| 65.02 | 2800952 | BACKREST CUSHION, IMI. LEATHER | |
| 66 | 213829 | HEXAGON SCREW | |
| 67 | 2588139 | SAFETY NUT | |
| 68 | 231355 | WASHER | |
| 72 | 754250 | SEAT PEDESTAL | |
| 73 | 1209965 | HEXAGON SCREW | |
| 74 | 276243 | LOCKING WASHER | |
| 75 | 216607 | WASHER | |
| 78 | 743771 | LID TOOL BOX | |
| 78 | 779326 | LID BATTERY BOX | |
| 79 | 2160023 | HOUSING | |
| 79.01 | 211885 | KEY | |
| 80 | 2160027 | ACTUATING BOLT | |
| 82 | 211737 | TONGUE BATTERY BOX | |
| 82 | 445657 | TONGUE | |
| 83 | 755419 | STAY BAR | |
| 84 | 2119339 | HEXAGON SCREW | |
| 85 | 216593 | WASHER | |
| 88 | 850454 | PLACE OF DEPOSIT | |
| 89 | 1403486 | METAL PLATE | |
| 90 | 213667 | HEXAGON SCREW | |
| 91 | 216577 | WASHER | |
| 92 | 2127017 | HEXAGONAL NUT | |
| 93 | 250228 | EDGE PROTECTION | |
| 94 | 269506 | EDGE PROTECTION | |
| 95 | 1240609 | STAY BAR | |
| 97 | 2119339 | HEXAGON SCREW | |
| 98 | 1240625 | MIRROR | |
| 99 | 353426 | FILLER CAP | |
| 100 | 884855 | LID LEFT | |
| 101 | 884847 | LID RIGHT | |
| 102 | 2160023 | HOUSING | |
| 103 | 2160027 | ACTUATING BOLT | |
| 105 | 445657 | TONGUE | |
| 129 | 216429 | WHEEL NUT | |
| 130 | 216631 | SPRING RING | |
| 133 | 505277 | HOLDER | |
| 134 | 213829 | HEXAGON SCREW | |
| 135 | 2175172 | LOCKING WASHER | |
| 136 | 2127020 | HEXAGONAL NUT | |
| 137 | 221074 | REAR REFLECTOR | |
| 155 | 1490400 | METAL PLATE | |
| 156 | 245720 | COUNTERSUNK SCREW | |
| 170 | 263753 | ELBOW-REST | |
| 171 | 216593 | WASHER | |
| 172 | 2119339 | HEXAGON SCREW | |
| 174 | 320994 | LOCK OUTSIDE HANDLE | |
| 174.01 | 323802 | KEY | |
| 175 | 350389 | WASHER | |
| 176 | 2128328 | HEXAGON SCREW | |
| 177 | 320994 | LOCK OUTSIDE HANDLE | |
| 178 | 350389 | WASHER | |
| 179 | 2128328 | HEXAGON SCREW | |
| 215 | 1523015 | LID | |
| 216 | 391484 | KNURLED HEAD SCREW |
