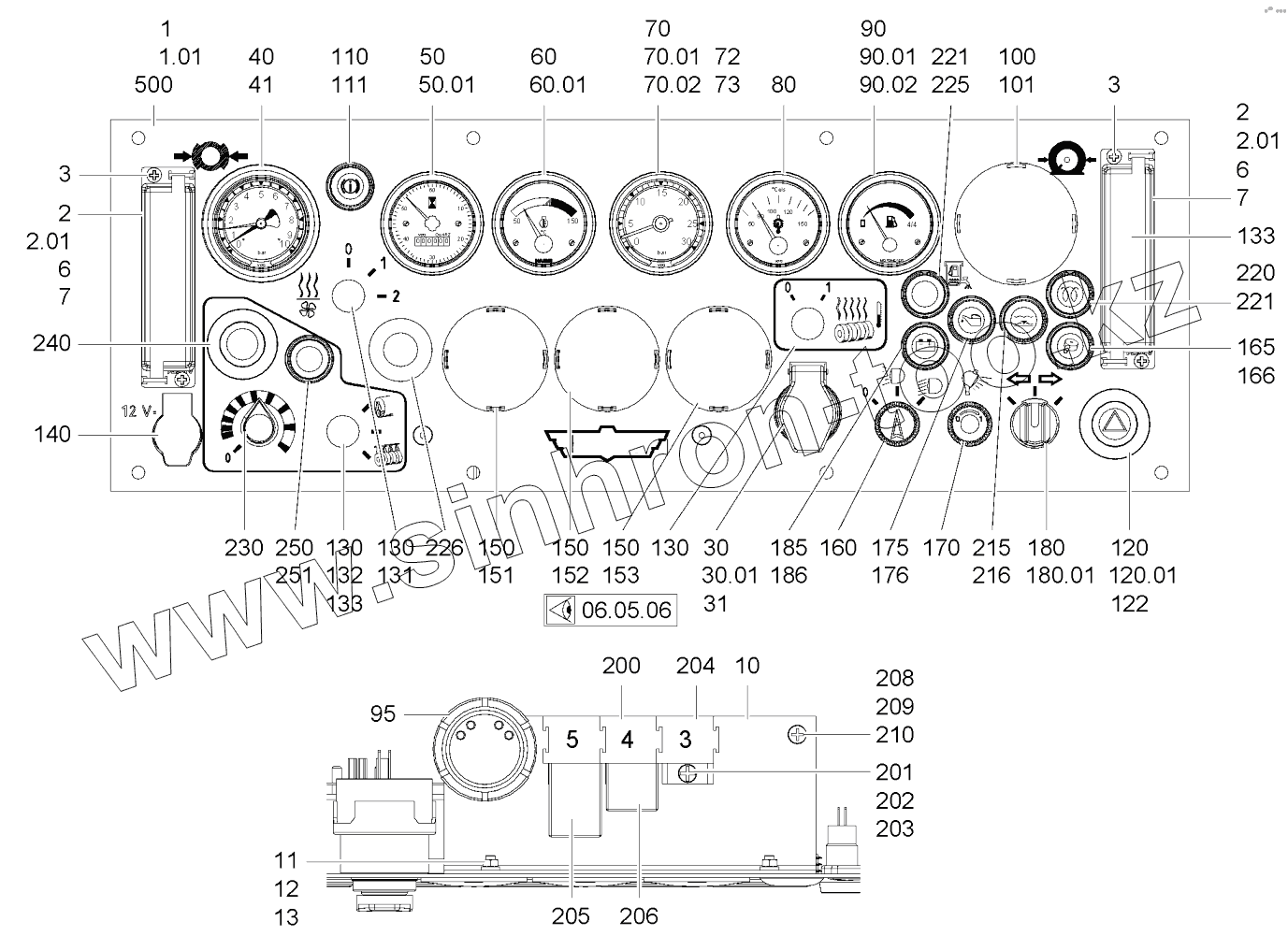

Каталог запасных частей к технике: HAMM GRW 15. INSTRUMENT PANEL
1
1.01
2
2
2.01
2.01
3
3
6
6
7
7
10
11
12
13
30
30.01
31
40
41
50
50.01
60
60.01
70
70.01
70.02
72
73
80
90
90.01
90.02
95
100
101
110
111
120
120.01
122
130
130
130
131
132
133
133
140
150
150
150
151
152
153
160
165
166
170
175
176
180
180.01
185
186
200
201
202
203
204
205
206
208
209
210
215
216
220
221
221
225
226
230
240
250
251
500
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 891258 | INSTRUMENT PANEL COMPL. | |
| 1.01 | 1523082 | METAL PLATE | |
| 2 | 1244043 | FUSE SOCKET | |
| 2.01 | 2368808 | LID | |
| 3 | 339202 | FILLISTER HEAD SCREW | |
| 6 | 1244078 | CONTACT BRIDGE | |
| 7 | 384054 | BLADE-TYPE FUSE 10A | |
| 10 | 1444352 | METAL PLATE | |
| 11 | 387460 | COUNTERSUNK SCREW | |
| 12 | 354589 | SERRATED LOCK WASHER | |
| 13 | 216054 | HEXAGONAL NUT | |
| 30 | 380296 | IGNITION SWITCH | |
| 30.01 | 367125 | KEY | |
| 31 | 335983 | FOLDING LID | |
| 40 | 210056 | DISPLAY UNIT | |
| 41 | 231746 | LAMP | |
| 50 | 384208 | HOURMETER | |
| 50.01 | 384089 | INSULATION SLEEVE | |
| 60 | 1216783 | TEMPERATURE INDICATOR, ENGINE | |
| 60.01 | 209643 | LAMP | |
| 70 | 1255304 | OIL PRESSURE GAUGE | |
| 70.01 | 1255312 | RING | |
| 70.02 | 1256432 | LAMP SOCKET | |
| 72 | 1256432 | LAMP SOCKET | |
| 73 | 1258532 | LAMP | |
| 80 | 1220012 | TEMPERATURE DISPLAY | |
| 90 | 383155 | LEVEL INDICATOR | |
| 90.01 | 384100 | CONNECTOR HOUSING | |
| 90.02 | 384089 | INSULATION SLEEVE | |
| 95 | 833525 | AUDIO SIGNAL TRANSMITTER | |
| 100 | 250236 | BLIND PLUG | |
| 101 | 210048 | MANOMETER | |
| 110 | 385344 | PILOT LIGHT, BRAKE | |
| 111 | 209643 | LAMP | |
| 120 | 282634 | PUSH BUTTON SWITCH | |
| 120.01 | 231754 | LAMP | |
| 122 | 231746 | LAMP | |
| 130 | 351849 | FILLER CAP | |
| 131 | 1232487 | ROTARY SWITCH | |
| 132 | 384275 | ROTARY SWITCH | |
| 133 | 850942 | CABLE HARNESS KAG | |
| 140 | 207705 | BUILT-IN SOCKET | |
| 150 | 376760 | BLIND PLUG | |
| 151 | 395323 | OIL PRESSURE INDICATOR | |
| 152 | 350044 | REVOLUTION COUNTER | |
| 153 | 1297333 | AMMETER | |
| 160 | 351865 | ROTARY SWITCH | |
| 165 | 385301 | PILOT LIGHT, AIR FILTER | |
| 166 | 209643 | LAMP | |
| 170 | 332402 | ROTARY SWITCH | |
| 175 | 385336 | PILOT LIGHT, OIL PRESSURE | |
| 176 | 209643 | LAMP | |
| 180 | 387541 | ROTARY SWITCH | |
| 180.01 | 354414 | CENTRAL PLUG | |
| 185 | 385328 | PILOT LIGHT, CHARGE CURRENT | |
| 186 | 209643 | LAMP | |
| 200 | 323020 | RELAY SOCKET | |
| 201 | 215430 | FILLISTER HEAD SCREW | |
| 202 | 216054 | HEXAGONAL NUT | |
| 203 | 354589 | SERRATED LOCK WASHER | |
| 204 | 1409840 | LABEL | |
| 205 | 810304 | PULSE GENERATOR | |
| 206 | 282618 | FLASHER RELAY | |
| 208 | 215449 | FILLISTER HEAD SCREW | |
| 209 | 216054 | HEXAGONAL NUT | |
| 210 | 354589 | SERRATED LOCK WASHER | |
| 215 | 1208691 | PILOT LIGHT, WATER LEVEL | |
| 216 | 209643 | LAMP | |
| 220 | 386308 | PILOT LIGHT, GLOW | |
| 221 | 209643 | LAMP | |
| 225 | 232408 | PILOT LIGHT, YELLOW | |
| 226 | 353434 | FILLER CAP | |
| 230 | 843008 | INTERVAL SWITCH | |
| 240 | 386030 | PUSH BUTTON | |
| 250 | 220949 | CONTROL LIGHT | |
| 251 | 209643 | LAMP | |
| 500 | 891266 | CABLE HARNESS |
