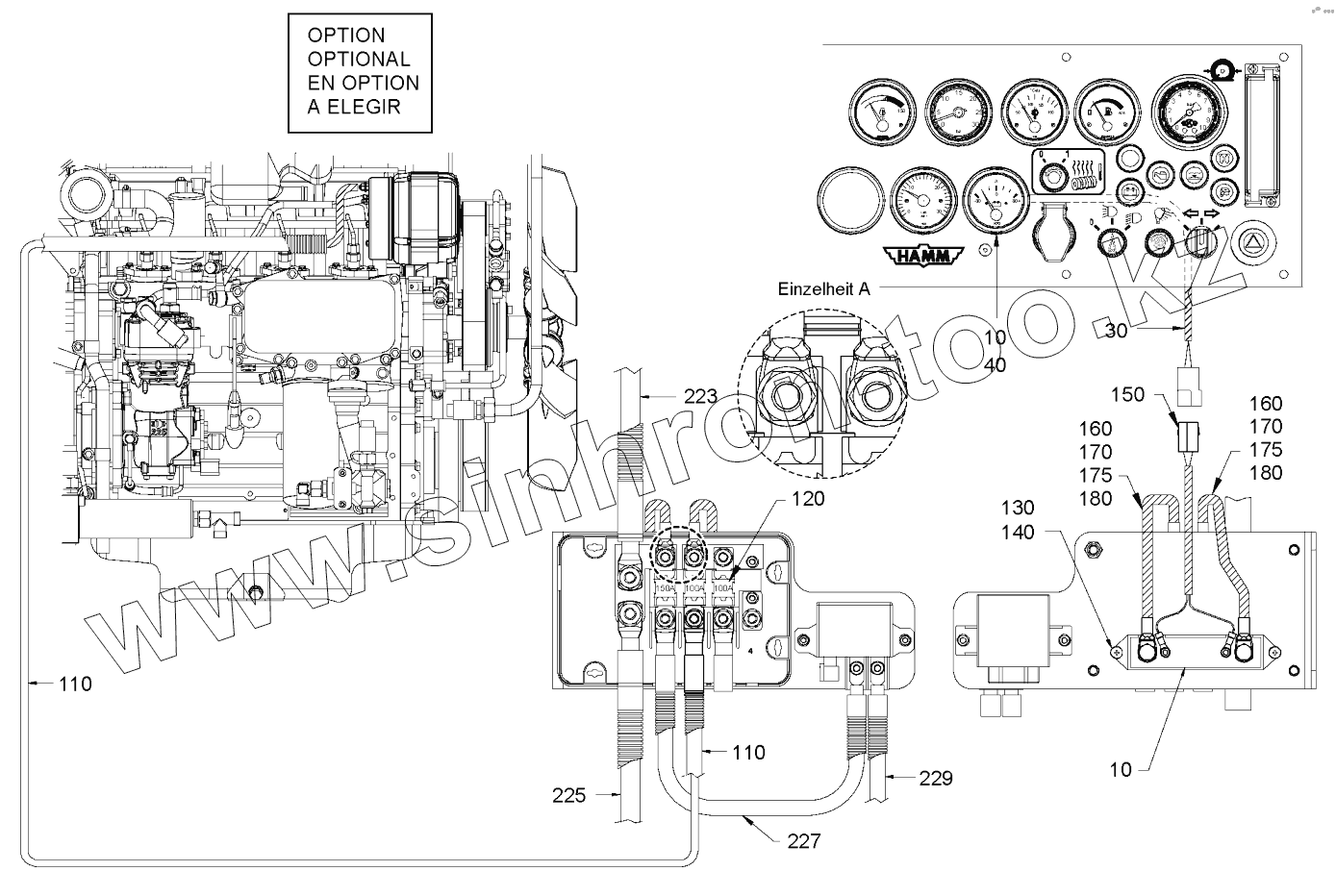

Каталог запасных частей к технике: HAMM GRW 15. ELECTRICAL SYSTEM (WITH LIGHTING)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
3410 (2015)
3410 (2021)
3411 (2015)
3411 (2021)
3516 (2008)
3518 (2008)
3520 (2008)
GRW 10
GRW 10 (2009)
GRW 15
GRW 15 (2009)
GRW 18
GRW 18 (2009)
GRW 21
GRW 21 (2009)
GRW 24
GRW 24 (2009)
HD110 (2021)
HD90 (2021)
Схема
>
Не выбрано
MAIN FRAME AND ASSEMBLIES
MAIN FRAME AND ASSEMBLIES
MAIN FRAME AND ASSEMBLIES
STICKER ARRANGEMENT
STICKER ARRANGEMENT
STICKER ARRANGEMENT
STICKER ARRANGEMENT
STICKER ARRANGEMENT
SOUND-INSULATION
SOUND-INSULATION
SOUND-INSULATION
ADDITIONAL LOAD VERSION, GRW15, GRW18
ADDITIONAL LOAD VERSION, GRW21, GRW24
ROLL OVER PROTECTION
ROLL OVER PROTECTION
FOPS
INSTRUMENT PANEL COVERING
OPERATOR'S CABIN
CABIN-HEATING
CABIN-HEATING
AIR CONDITIONING
AIR CONDITIONING
AIR CONDITIONING
ENGINE AND CONVERTER ASSEMBLY
ENGINE AND CONVERTER ASSEMBLY
ENGINE AND CONVERTER ASSEMBLY
ENGINE AND CONVERTER ASSEMBLY
FUEL SYSTEM
FUEL SYSTEM
FUEL FILTER
FUEL FILTER
ENGINE CONTROL
AIR FILTER SYSTEM
EXHAUST SYSTEM
COOLING (ENGINE/HYDRAULIC OIL)
COOLING (ENGINE/HYDRAULIC OIL)
COOLER (BOOST AIR)
CONVERTER
CONVERTER AND TRANSMISSION CASE
GEAR WHEELS AND MULTI-DISC CLUTCHES
MULTI-DISC CLUTCH - 1ST GEAR
MULTI-DISC CLUTCH - FORWARD SPEED
MULTI-DISC CLUTCH - 3RD GEAR
MULTI-DISC CLUTCH - REVERSE GEAR AND 2ND GEAR
CONTROL VALVE
DAMPING VALVE
VALVE BLOCK (PARKING BRAKE)
INSTRUMENT PANEL
ELECTRICAL SYSTEM (WITH LIGHTING)
ELECTRICAL SYSTEM (WITH LIGHTING)
ELECTRICAL SYSTEM (WITH LIGHTING)
ELECTRICAL SYSTEM (WITH LIGHTING)
ELECTRICAL SYSTEM (WITH LIGHTING)
ELECTRICAL SYSTEM (WITH LIGHTING)
ELECTRICAL SYSTEM (OPERATOR'S CABIN)
ELECTRICAL SYSTEM (RADIO)
FRONT WHEEL SUSPENSION - HYDRAULIC VERTICAL ADJUSTMENT VERSION WITHOUT BRAKE
FRONT WHEEL SUSPENSION - HYDRAULIC VERTICAL ADJUSTMENT VERSION WITH BRAKE
FRONT WHEEL SUSPENSION - HYDRAULIC VERTICAL ADJUSTMENT VERSION WITH BRAKE
FFRONT WHEEL SUSPENSION - HYDRAULIC VERTICAL ADJUSTMENT
DIFFERENTIAL
TIRE EQUIPMENT
ADVANCE DRIVE
DRIVE SHIFTING
FOOT BRAKE SINGLE-CIRCUIT
FOOT BRAKE SINGLE-CIRCUIT
FOOT BRAKE OPTIONAL
FOOT BRAKE OPTIONAL
FOOT BRAKE OPTIONAL
PARKING BRAKE
PARKING BRAKE
PARKING BRAKE
PARKING BRAKE
SERVO BRAKE
STEERING
STEERING
SPRINKLING
SPRINKLING
SPRINKLING
WATER FILTER
DOUBLE STEERING
TIRE FILLING SYSTEM
TIRE-HEATING
TIRE-HEATING
ELECTRICAL SYSTEM (TIRE-HEATING)
SCRAPER (FRONT) BRUSH
SCRAPER (REAR) BRUSH
SCRAPER (FRONT) PLASTIC
SCRAPER (REAR) PLASTIC
EDGE PRESSING AND CUTTING DEVICE
EDGE PRESSING AND CUTTING DEVICE
ADD-ON PIECES (EDGE PRESSING AND CUTTING DEVICE)
HYDRAULIC SYSTEM (EDGE PRESSING AND CUTTING DEVICE)
SPRINKLING (EDGE PRESSING AND CUTTING DEVICE)
THERMAL SCUFFLE
SIDE LAMP FOR THERMAL SCUFFLE
SUN ROOF VERSION WITH,ROPS
SUN ROOF VERSION WITHOUT,ROPS
SUN ROOF VERSION WITHOUT,ROPS
HANDLES
WATER PUMP
DOUBLE FOOT BRAKE
SPARE WHEEL WITH WHEEL CARRIER
FILLER CAP WITH C-COUPLING
DOUBLE DRIVE SHIFTING
DOUBLE ENGINE CONTROL
WARNING LIGHT CABIN
WARNING LIGHT SUN CANOPY
WARNING LIGHT ROPS
BACK-UP ALARM (BACK-UP)
SPEEDOMETER
ASPHALT THERMOMETER
WIFMS INTERFACE
FIRE EXTINGUISHER
HOMOLOGATION
MAINTENANCE KITS AND REPAIR KITS
10
10
30
40
110
110
120
130
140
150
160
160
170
170
175
175
180
180
223
225
227
229
Позиция на иллюстрации
Заводской номер детали
Название детали
10
1297333
AMMETER
30
2092126
CABLE HARNESS
40
384089
INSULATION SLEEVE
110
2092129
CABLE HARNESS
120
1293001
FUSE
130
215449
FILLISTER HEAD SCREW
140
354589
SERRATED LOCK WASHER
150
898422
CABLE HARNESS
160
278734
CABLE TERMINAL
170
614138
CABLE
175
224677
SLEEVING
180
1204556
SHRINKDOWN PLASTIC TUBING
223
892262
BATTERY CABLE
225
892165
CABLE
227
892866
CABLE HARNESS
229
892467
CABLE HARNESS
