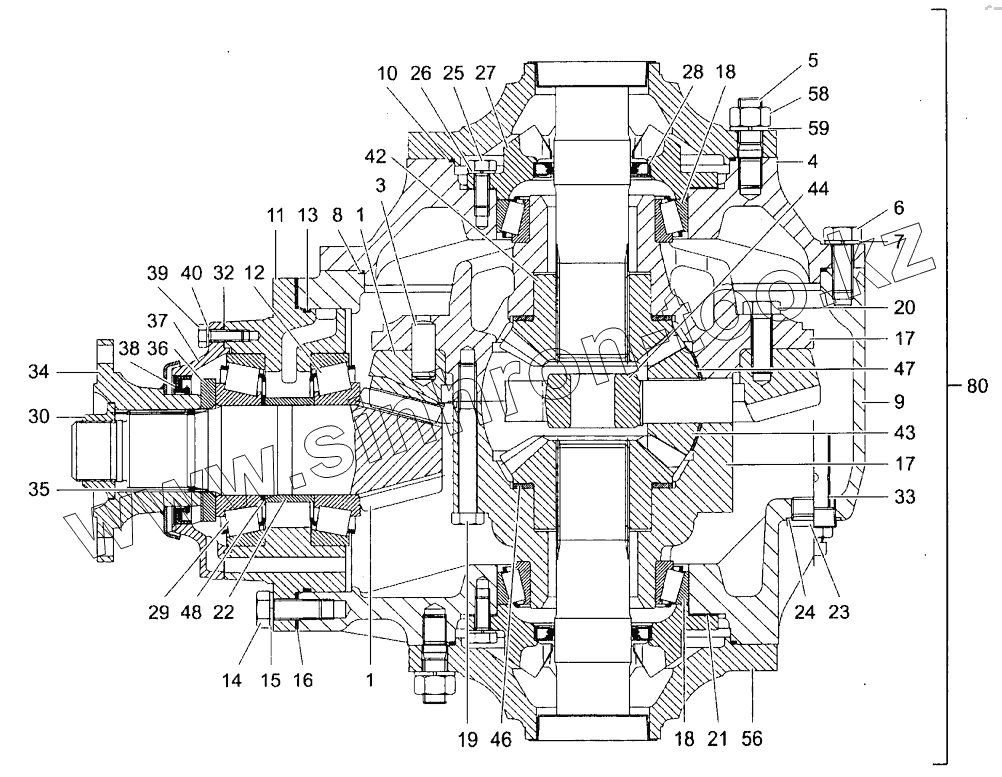

Каталог запасных частей к технике: HAMM GRW 10. DIFFERENTIAL
1
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
32
33
34
35
36
37
38
39
40
42
43
44
46
47
48
56
58
59
80
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2039760 | CROWN WHEEL | |
| 3 | 251070 | STRAIGHT PIN | |
| 4 | 2039759 | DIFFERENTIAL COVER | |
| 5 | 288322 | STUD SCREW | |
| 6 | 213934 | HEXAGON SCREW | |
| 7 | 2039725 | CIRCLIP | |
| 8 | 276081 | O-RING SEAL | |
| 9 | 2039757 | DIFFERENTIAL CASE | |
| 10 | 1301799 | O-RING SEAL | |
| 11 | 276138 | HOUSING | |
| 12 | 276154 | TAPER ROLLER BEARING | |
| 13 | 276146 | O-RING SEAL | |
| 14 | 213934 | HEXAGON SCREW | |
| 15 | 2039725 | CIRCLIP | |
| 16 | 276170 | ADJUSTING DISC SET | |
| 17 | 2039763 | DIFFERENTIAL CAGE | |
| 18 | 260185 | TAPER ROLLER BEARING | |
| 19 | 276200 | HEXAGON SCREW | |
| 20 | 213977 | HEXAGON SCREW | |
| 21 | 276219 | ADJUSTING DISC SET | |
| 22 | 2034068 | DISTANCE BUSH | |
| 23 | 2039767 | LOCKING SCREW | |
| 24 | 219568 | SEALING RING | |
| 25 | 1209965 | HEXAGON SCREW | |
| 26 | 2039768 | CIRCLIP | |
| 27 | 2039769 | LID | |
| 28 | 276251 | SHAFT SEAL | |
| 29 | 276154 | TAPER ROLLER BEARING | |
| 30 | 2034157 | HEXAGONAL NUT | |
| 32 | 288349 | SEALING | |
| 33 | 288357 | AIR VENT | |
| 34 | 305383 | FLANGE | |
| 35 | 2034049 | O-RING SEAL | |
| 36 | 305375 | WASHER | |
| 37 | 276316 | LID | |
| 38 | 202959 | SHAFT SEAL | |
| 39 | 213829 | HEXAGON SCREW | |
| 40 | 2039771 | CIRCLIP | |
| 42 | 2039772 | DIFFERENTIAL SPUR GEAR | |
| 43 | 2039773 | BEVEL WHEEL | |
| 44 | 2039758 | BOLT | |
| 46 | 2034160 | ADJUSTING DISC SET | |
| 47 | 2045270 | THRUST WASHER | |
| 48 | 2045286 | ADJUSTING DISC SET | |
| 56 | 1269429 | FLANGE | |
| 58 | 345946 | HEXAGONAL NUT | |
| 59 | 2039774 | CIRCLIP | |
| 80 | 1269410 | DIFFERENTIAL COMPL.,POS. 1-59 |
