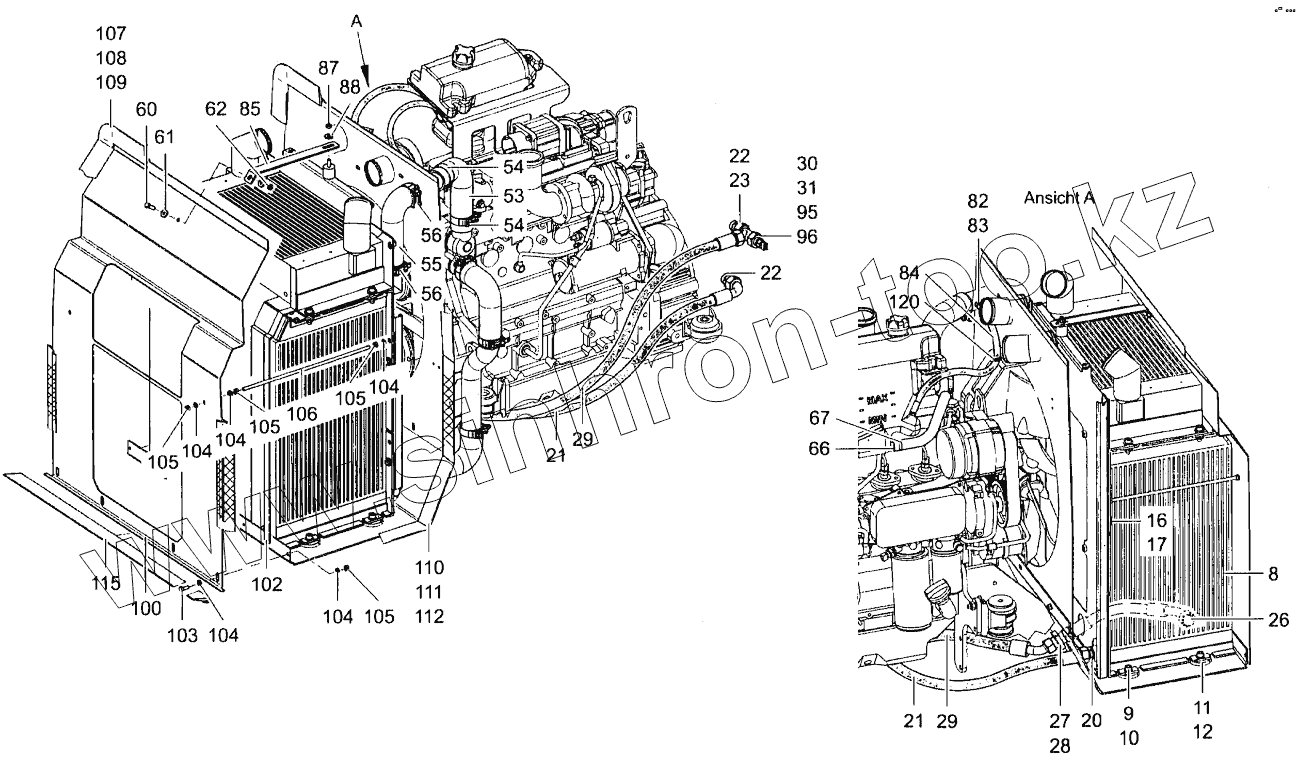

Каталог запасных частей к технике: HAMM GRW 10. COOLING (ENGINE/HYDRAULIC OIL)
8
9
10
11
12
16
17
20
21
21
22
22
23
26
27
28
29
29
30
31
53
54
54
55
56
56
60
61
62
66
67
82
83
84
85
87
88
95
96
100
102
103
104
104
104
104
104
105
105
105
105
106
107
108
109
110
111
112
115
120
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 8 | 1480901 | HYDRAULIC OIL COOLER | |
| 9 | 245569 | CHEESE-HEAD SCREW | |
| 10 | 216607 | WASHER | |
| 11 | 216453 | HEXAGONAL NUT | |
| 12 | 200956 | RUBBER METAL BUFFER | |
| 16 | 213748 | HEXAGON SCREW | |
| 17 | 231355 | WASHER | |
| 20 | 315702 | STRAIGHT SCREWED SOCKET | |
| 21 | 1292293 | HOSE | |
| 22 | 280232 | STRAIGHT SCREWED SOCKET | |
| 23 | 350621 | ELBOW ADJUSTABLE | |
| 26 | 1265814 | HOSE | |
| 27 | 387843 | BULKHEAD SOCKET STRAIGHT | |
| 28 | 318043 | HEXAGONAL NUT | |
| 29 | 354287 | HOSE | |
| 30 | 1454730 | FITTING | |
| 31 | 206865 | UNION NUT | |
| 53 | 2054413 | HOSE | |
| 54 | 1214357 | HOSE CLAMP | |
| 55 | 2054411 | HOSE | |
| 56 | 1214357 | HOSE CLAMP | |
| 60 | 213799 | HEXAGON SCREW | |
| 61 | 231355 | WASHER | |
| 62 | 216445 | HEXAGONAL NUT | |
| 66 | 1519131 | HOSE | |
| 67 | 284459 | HOSE CLAMP | |
| 82 | 1214497 | HOSE CLAMP | |
| 83 | 319678 | HOSE NOZZLE | |
| 84 | 2065480 | HOSE | |
| 85 | 1507761 | HOLDER | |
| 87 | 216445 | HEXAGONAL NUT | |
| 88 | 231355 | WASHER | |
| 95 | 1215477 | TEMPERATURE SENSOR, ENG. COOL. | |
| 96 | 219398 | SEALING RING | |
| 100 | 1507613 | AIR PLATE | |
| 102 | 600254 | SEALING TAPE | |
| 103 | 213799 | HEXAGON SCREW | |
| 104 | 231355 | WASHER | |
| 105 | 216445 | HEXAGONAL NUT | |
| 106 | 1524275 | SETSCREW | |
| 107 | 2092385 | SEALING | |
| 108 | 2092386 | SEALING | |
| 109 | 2087402 | SEALING | |
| 110 | 2093694 | SEALING | |
| 111 | 2087423 | SEAL | |
| 112 | 2093689 | SEALING | |
| 115 | 2096911 | SEALING | |
| 120 | 267341 | WIRE FASTENER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
