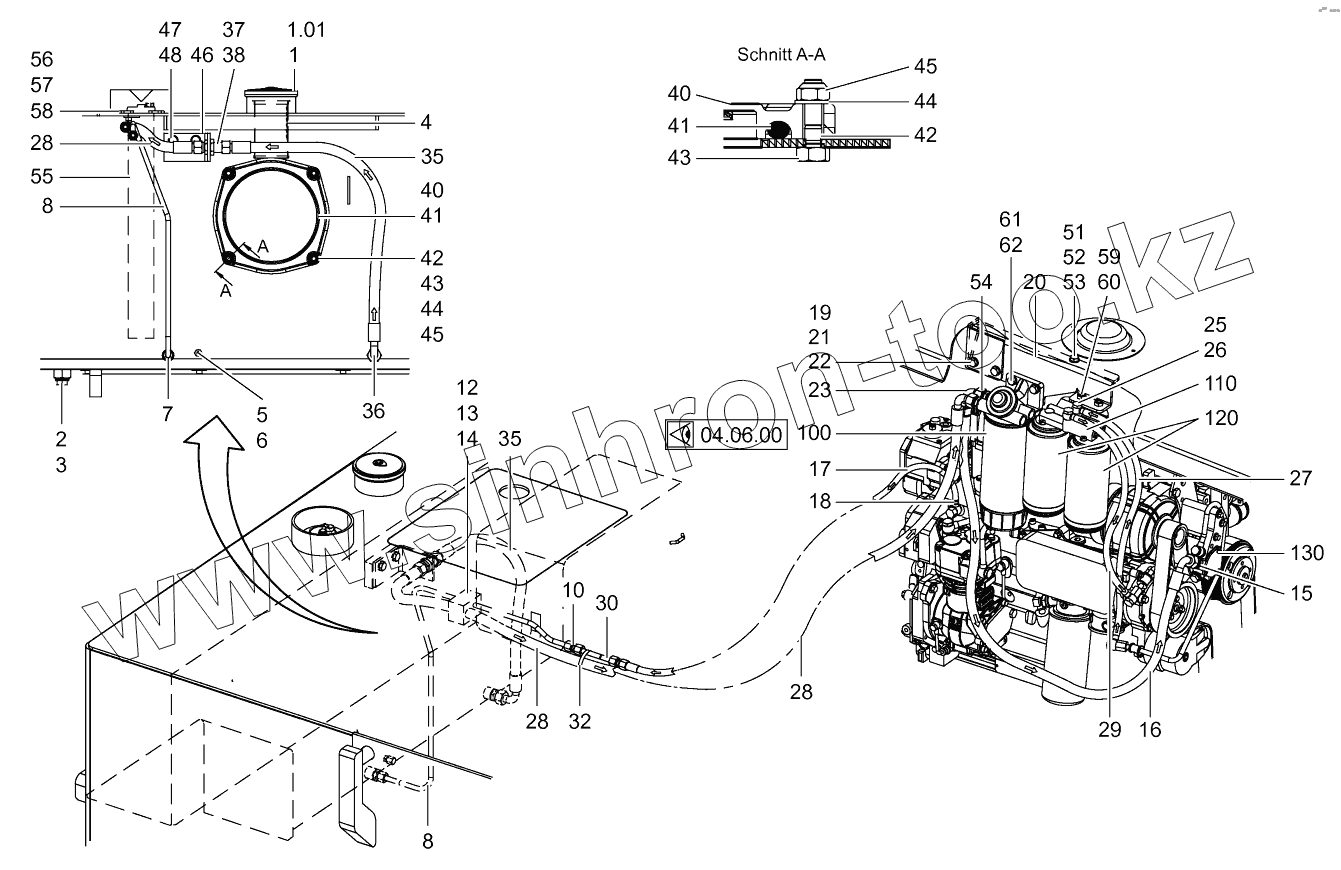

Каталог запасных частей к технике: HAMM GRW 10. FUEL SYSTEM
1
1.01
2
3
4
5
6
7
8
8
10
12
13
14
15
16
17
18
19
20
21
22
23
25
26
27
28
28
28
29
30
32
35
35
36
37
38
40
40
41
41
42
42
43
43
44
44
45
45
46
47
48
51
52
53
54
55
56
57
58
59
60
61
62
100
110
120
130
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 228060 | TANK CAP, WITH LOCK | |
| 1.01 | 266000 | KEY | |
| 2 | 205842 | LOCKING SCREW | |
| 3 | 219495 | SEALING RING | |
| 4 | 327522 | FUEL SCREEN | |
| 5 | 206806 | UNION NUT | |
| 6 | 208612 | BALL | |
| 7 | 382493 | STRAIGHT SCREWED SOCKET | |
| 8 | 1454617 | PIPE | |
| 10 | 322512 | STRAIGHT COUPLING | |
| 12 | 314129 | HALF-CLIP | |
| 13 | 313998 | TOP COVER | |
| 14 | 314064 | HEXAGON SCREW | |
| 15 | 381063 | STRAIGHT SCREWED SOCKET | |
| 16 | 1294423 | HOSE | |
| 17 | 1242660 | HOSE | |
| 18 | 225770 | HOSE CLAMP | |
| 19 | 216801 | SPRING RING | |
| 20 | 2148445 | HOLDER | |
| 21 | 216607 | WASHER | |
| 22 | 213888 | HEXAGON SCREW | |
| 23 | 231584 | INTERMEDIATE PIECE | |
| 25 | 206741 | HOLLOW-CORE SCREW | |
| 26 | 219398 | SEALING RING | |
| 27 | 2051785 | HOSE | |
| 28 | 388831 | HOSE | |
| 29 | 2051750 | HOSE | |
| 30 | 896888 | PIPE | |
| 32 | 267341 | WIRE FASTENER | |
| 35 | 1241621 | HOSE | |
| 36 | 381063 | STRAIGHT SCREWED SOCKET | |
| 37 | 397709 | BULKHEAD SOCKET STRAIGHT | |
| 38 | 317993 | HEXAGONAL NUT | |
| 40 | 571148 | LID | |
| 41 | 576476 | O-RING SEAL | |
| 42 | 2179926 | STUD SCREW | |
| 43 | 2127021 | HEXAGONAL NUT | |
| 44 | 216607 | WASHER | |
| 45 | 2588141 | SAFETY NUT | |
| 46 | 1523546 | ANGLE | |
| 47 | 2119445 | HEXAGON SCREW | |
| 48 | 216607 | WASHER | |
| 51 | 276243 | LOCKING WASHER | |
| 52 | 216607 | WASHER | |
| 53 | 213888 | HEXAGON SCREW | |
| 54 | 381063 | STRAIGHT SCREWED SOCKET | |
| 55 | 1206664 | LEVEL TRANSMITTER | |
| 56 | 1206680 | SEALING | |
| 57 | 1202359 | CHEESE-HEAD SCREW | |
| 58 | 216577 | WASHER | |
| 59 | 216607 | WASHER | |
| 60 | 252980 | HEXAGON SCREW | |
| 61 | 216607 | WASHER | |
| 62 | 252980 | HEXAGON SCREW | |
| 100 | 1292226 | FUEL FILTER COMPL. | |
| 110 | 2035659 | FILTER HEAD | |
| 120 | 2043673 | FILTER CARTRIDGE, FUEL | |
| 130 | 1294822 | FUEL PUMP |
