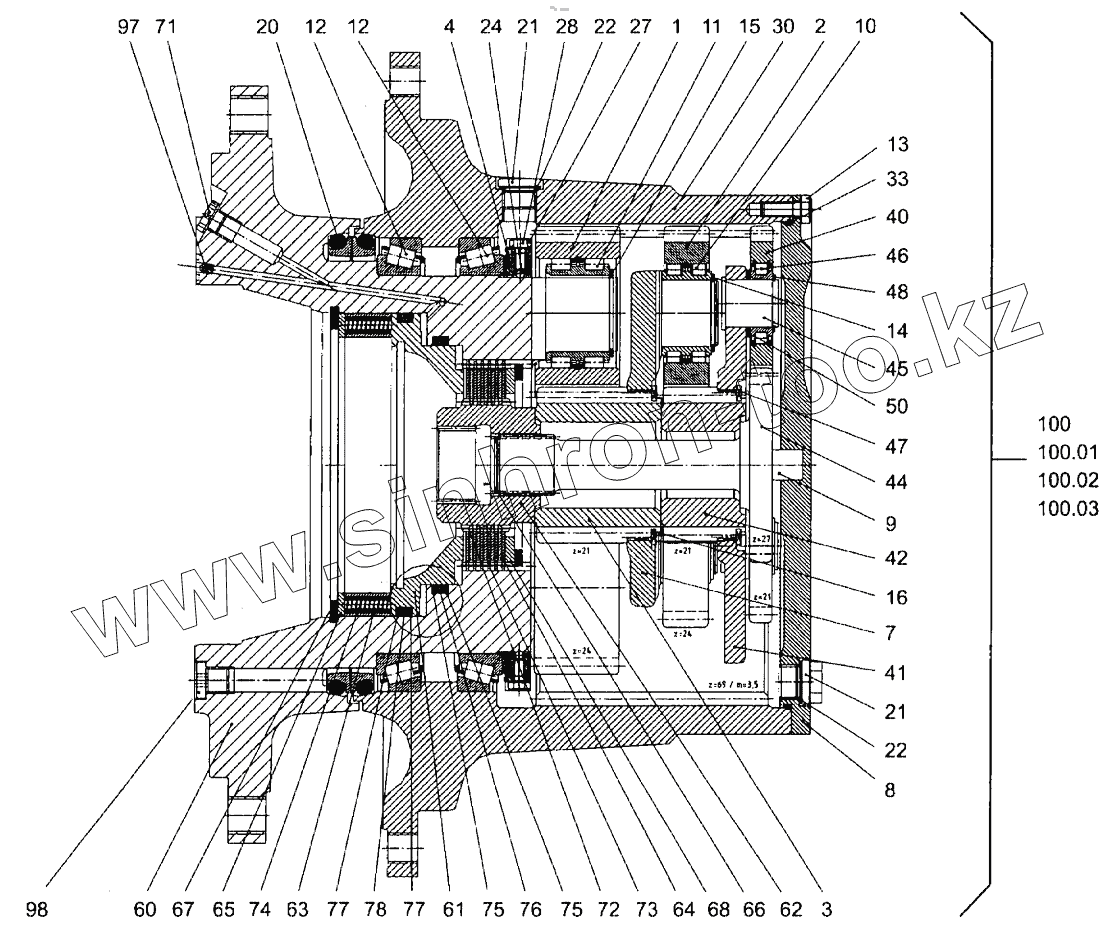

Каталог запасных частей к технике: HAMM 3520. WHEEL GEAR (DRUM DRIVE) VERSION 3516/3516P
1
2
3
4
7
8
9
10
11
12
12
13
14
15
16
20
21
21
22
22
24
27
28
30
33
40
41
42
44
45
46
47
48
50
60
61
62
63
64
65
66
67
68
71
72
73
74
75
75
76
77
77
78
97
98
100
100.01
100.02
100.03
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1286072 | PLANET WHEEL | |
| 2 | 1286080 | PLANET WHEEL | |
| 3 | 1286099 | SUN WHEEL | |
| 4 | 1286293 | SHAFT NUT | |
| 7 | 1286102 | PLANET CARRIER | |
| 8 | 1286110 | COVER | |
| 9 | 1282220 | CYLINDRICAL ROLLER | |
| 10 | 1286218 | CYLINDRICAL ROLLER BEARING | |
| 11 | 1281917 | CYLINDRICAL ROLLER BEARING | |
| 12 | 1286226 | TAPER ROLLER BEARING | |
| 13 | 213748 | HEXAGON SCREW | |
| 14 | 217123 | LOCKING RING | |
| 15 | 217166 | CIRCLIP | |
| 16 | 217255 | LOCKING RING | |
| 20 | 1283685 | AXIAL FACE SEAL | |
| 21 | 389595 | SCREW PLUG | |
| 22 | 1283596 | SEALING RING | |
| 24 | 1283693 | BALL | |
| 27 | 283568 | HEXAGON SCREW | |
| 28 | 1283715 | LOCKING PLATE | |
| 30 | 1286129 | RING GEAR | |
| 33 | 1283022 | O-RING SEAL | |
| 40 | 1286137 | PLANET WHEEL | |
| 41 | 1286145 | PLANET CARRIER | |
| 42 | 1286153 | SUN WHEEL | |
| 44 | 1286161 | SHAFT | |
| 45 | 1286242 | BOLT | |
| 46 | 1286234 | CYLINDRICAL ROLLER BEARING | |
| 47 | 217255 | LOCKING RING | |
| 48 | 217387 | CIRCLIP | |
| 50 | 1286250 | SUPPORTING RING | |
| 60 | 1286188 | AXLE | |
| 61 | 1283790 | PISTON | |
| 62 | 1286196 | DRIVER | |
| 63 | 1283812 | INTERMEDIATE RING | |
| 64 | 1282131 | SPACER WASHER | |
| 65 | 1286269 | SUPPORTING RING | |
| 66 | 217697 | LOCKING RING | |
| 67 | 217689 | CIRCLIP | |
| 68 | 1283928 | CIRCLIP | |
| 71 | 1286307 | PLUG | |
| 72 | 1283197 | BRAKE DISC INTERNAL | |
| 73 | 1283189 | BRAKE DISC EXTERNAL | |
| 74 | 1283847 | COMPRESSION SPRING | |
| 75 | 1283855 | SUPPORTING RING | |
| 76 | 1283863 | QUADRING | |
| 77 | 1283871 | SUPPORTING RING | |
| 78 | 1283898 | QUADRING | |
| 97 | 1286277 | EXPANDER | |
| 98 | 1286285 | SCREW PLUG | |
| 100 | 1254758 | WHEEL GEAR COMPL. | |
| 100.01 | 1268961 | SEALING SET | |
| 100.02 | 1268988 | SEALING SET | |
| 100.03 | 1268996 | BRAKE DISC |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
