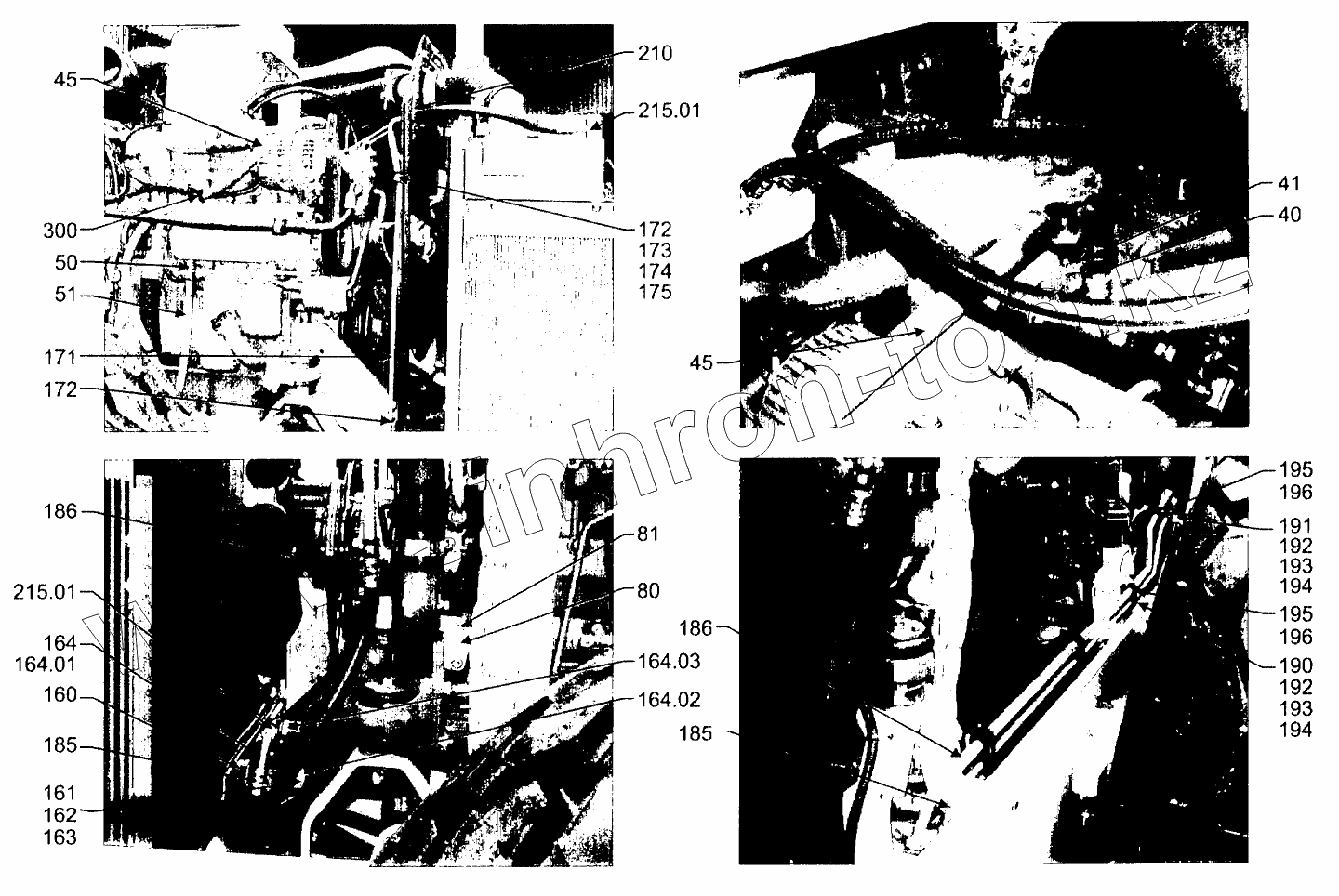

Каталог запасных частей к технике: HAMM 3520. HEATING AND AIR CONDITIONING
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
3410 (2015)
3410 (2021)
3411 (2015)
3411 (2021)
3516 (2008)
3518 (2008)
3520 (2008)
GRW 10
GRW 10 (2009)
GRW 15
GRW 15 (2009)
GRW 18
GRW 18 (2009)
GRW 21
GRW 21 (2009)
GRW 24
GRW 24 (2009)
HD110 (2021)
HD90 (2021)
Схема
>
Не выбрано
MAIN FRAME AND ASSEMBLIES VERSION 3516
MAIN FRAME AND ASSEMBLIES VERSION 3518/3520
CANOPIES AND COVERS
CANOPIES AND COVERS
CANOPIES AND COVERS
CANOPIES AND COVERS
BATTERY BOX
TOOL BOX
STICKER ARRANGEMENT
STICKER ARRANGEMENT
SOUND-INSULATION
OPERATOR PLATFORM
OPERATOR'S SEAT WITH ADJUSTMENT
ROLL OVER PROTECTION
FOPS
HANDLES
INSTRUMENT PANEL CASE
INSTRUMENT PANEL COVERING
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
CABIN-HEATING
CABIN-HEATING
PUMP DRIVE AND ENGINE ASSEMBLY
PUMP DRIVE AND ENGINE ASSEMBLY
FUEL SYSTEM 1-692
FUEL SYSTEM 693-9999
FUEL SYSTEM 1-9999
FUEL FILTER
ENGINE CONTROL
AIR FILTER SYSTEM
EXHAUST SYSTEM
COOLING (ENGINE/HYDRAULIC OIL)
COOLING (ENGINE/HYDRAULIC OIL)
COOLING {ENGINE/HYDRAULIC OIL)
COOLING (ENGINE/HYDRAULIC OIL)
TILTING HYDRAULIC
TILTING HYDRAULIC
VARIABLE DISPLACEMENT PUMP (DRIVE)
VARIABLE DISPLACEMENT PUMP (VIBRATION) 1-96
VARIABLE DISPLACEMENT PUMP (VIBRATION) 97-9999
VARIABLE DISPLACEMENT MOTOR (AXLE DRIVE)
CONSTANT MOTOR (VIBRATION DRIVE) VERSION 3516/3516P
CONSTANT MOTOR (VIBRATION DRIVE) VERSION 3518/3520/3518P/3520P /1-9999
WHEEL GEAR (DRUM DRIVE) VERSION 3516/3516P
WHEEL GEAR (DRUM DRIVE) VERSION 3518/3520/3518P/3520P
VARIABLE DISPLACEMENT MOTOR (DRUM DRIVE) VERSION 3516/3518/3520/3516P
VARIABLE DISPLACEMENT MOTOR (DRUM DRIVE) VERSION 3518P/3520P
VALVE BLOCK (PARKING BRAKE)
FILTER (HYDRAULIC OIL)
FILTER (HYDRAULIC STEERING SYSTEM)
PUMP (HYDRAULIC STEERING SYSTEM, VERSION WITHOUT BLADE)
PUMP (HYDRAULIC STEERING SYSTEM, VERSION WITH BLADE)
COLLECTING BLOCK (HYDRAULIC OIL)
OIL TANK
OIL FILTER SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM (LIGHTING)
ELECTRICAL SYSTEM (LIGHTING)
ELECTRICAL SYSTEM (RADIO)
PLANETARY AXLE AND SUSPENSION
DIFFERENTIAL CASE AND AXLE BODY
DIFFERENTIAL CASE AND AXLE BODY
DIFFERENTIAL WITH DIFFERENTIAL LOCK
PARKING BRAKE
PLANETARY GEAR
TIRE EQUIPMENT
DRIVE VERSION 3516
DRIVE VERSION 3516
DRIVE VERSION 3516
DRIVE VERSION 3518/3520
DRIVE VERSION 3518/3520
DRIVE VERSION 3518/3520
DRIVE SHIFTING
DRIVE SHIFTING
DRIVE SHIFTING
DRIVE SHIFTING
PARKING BRAKE
CENTRE PIVOT ASSEMBLY VERSION 3516/3516P
CENTRE PIVOT ASSEMBLY VERSION 3516/3516P
CENTRE PIVOT ASSEMBLY VERSION 3518/3520/3518P/3520P
CENTRE PIVOT ASSEMBLY VERSION 3518/3520
STEERING
STEERING
STEERING
STEERING
BLADE VERSION 3516P
BLADE VERSION 3518P/3520P
HYDRAULIC SYSTEM (BLADE) VERSION 3516P
HYDRAULIC SYSTEM (BLADE) VERSION 3516P
HYDRAULIC SYSTEM (BLADE) VERSION 3518P/3520P
HYDRAULIC SYSTEM (BLADE) VERSION 3518P/3520P
ELECTRICAL SYSTEM (BLADE)
SUN ROOF
SUN ROOF
SAFETY BUMPER
LAMP PROTECTION
GRID (TUV FRANCE)
TUV ITALY
PADFOOT SEGMENTS VERSION 3516
PADFOOT SEGMENTS VERSION 3518/3520
ADDITIONAL LIGHTING, ROPS
ADDITIONAL LIGHTING, FOPS
VIBRO AUTOMATIC
HEATING AND AIR CONDITIONING
HEATING AND AIR CONDITIONING
HEATING AND AIR CONDITIONING
HEATING AND AIR CONDITIONING
SEAT CONTACT SWITCH (TUV FRANCE)
ROTARY BEACON (DRIVER'S CABIN)
ROTARY BEACON (ROPS)
WARNING LIGHT SUN ROOF
FREQUENCY METER (VIBRATION)
BACK-UP ALARM (BACK-UP)
SPEEDOMETER
COMPACTOMETER HCQ
COMPACTION DOCUMENTATION 1-343
COMPACTION DOCUMENTATION 1-9999
COMPACTION DOCUMENTATION 344-9999
COMPACTION DOCUMENTATION 1-9999
COMPACTION INDICATOR, CDS 1-9999
TACHOGRAPH
TACHOGRAPH
HOSE PROTECTION (FRONT FRAME)
SUSPENSION (ROLLER DRUM) VERSION 3516/3516P
SUSPENSION (ROLLER DRUM) VERSION 3518/3520
SUSPENSION (PADFOOT DRUM) VERSION 3518P/3520P
SCRAPER (SMOOTH ROLLER DRUM) VERSION 3516
SCRAPER (SMOOTH ROLLER DRUM) VERSION 3518/3520
SCRAPER (PADFOOT DRUM) VERSION 3516P/3518P/3520P
SCRAPER (SPRING STEEL) VERSION 3516
SCRAPER (SPRING STEEL) VERSION 3518/3520
SCRAPER (L-STEEL, SMOOTH ROLLER DRUM) VERSION 3516
SCRAPER (L-STEEL, SMOOTH ROLLER DRUM) VERSION 3518/20
DRUM WITH VIBRATOR (WITH DRUM DRIVE) VERSION 3516/3516P
DRUM WITH VIBRATOR (WITH DRUM DRIVE) VERSION 3516/3516P
DRUM WITH VIBRATOR (WITH DRUM DRIVE) VERSION 3516/3516P
DRUM WITH VIBRATOR (WITH DRUM DRIVE) VERSION 3518/3520/3518P/3520P
DRUM WITH VIBRATOR (WITH DRUM DRIVE) VERSION 3518/3520/3518P/3520P
DRUM WITH VIBRATOR (WITH DRUM DRIVE) VERSION 3518/3520/3518P/3520P
VIBRATION DRIVE VERSION 3516
VIBRATION DRIVE VERSION 3518/3520
40
41
45
45
50
51
80
81
160
161
162
163
164
164.01
164.02
164.03
171
172
172
173
174
175
185
185
186
186
190
191
192
192
193
193
194
194
195
195
196
196
210
215.01
215.01
300
Позиция на иллюстрации
Заводской номер детали
Название детали
40
206369
STRAIGHT SCREWED SOCKET
41
317632
REDUCING CONNECTOR
45
2039117
FLEXIBLE TUBING
50
317098
STRAIGHT SCREWED SOCKET
51
1274368
FLEXIBLE TUBING
80
1519069
HOLDER
81
214469
CHEESE-HEAD SCREW
160
875627
DISTANCE PIECE
161
1209914
HEXAGON SCREW
162
216445
HEXAGONAL NUT
163
216593
WASHER
164
1510266
DRYER WITH PRESSURE SWITCH COMPL.
164.01
1272950
DRYER
164.02
1278290
HOLDER
164.03
1278304
PRESSURE SWITCH
171
1527355
FLEXIBLE TUBING
172
1207571
PIPE CLIP
173
213748
HEXAGON SCREW
174
216445
HEXAGONAL NUT
175
216593
WASHER
185
1527371
FLEXIBLE TUBING
186
1527398
FLEXIBLE TUBING
190
1527037
METAL PLATE
191
1527045
METAL PLATE
192
211850
HEXAGON SCREW
193
216445
HEXAGONAL NUT
194
216593
WASHER
195
1527924
HALF-CLIP
196
242535
CHEESE-HEAD SCREW
210
1265873
CABLE SUPPORT SLEEVE
215.01
2022480
O-RING SEAL NW6
300
267341
WIRE FASTENER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
