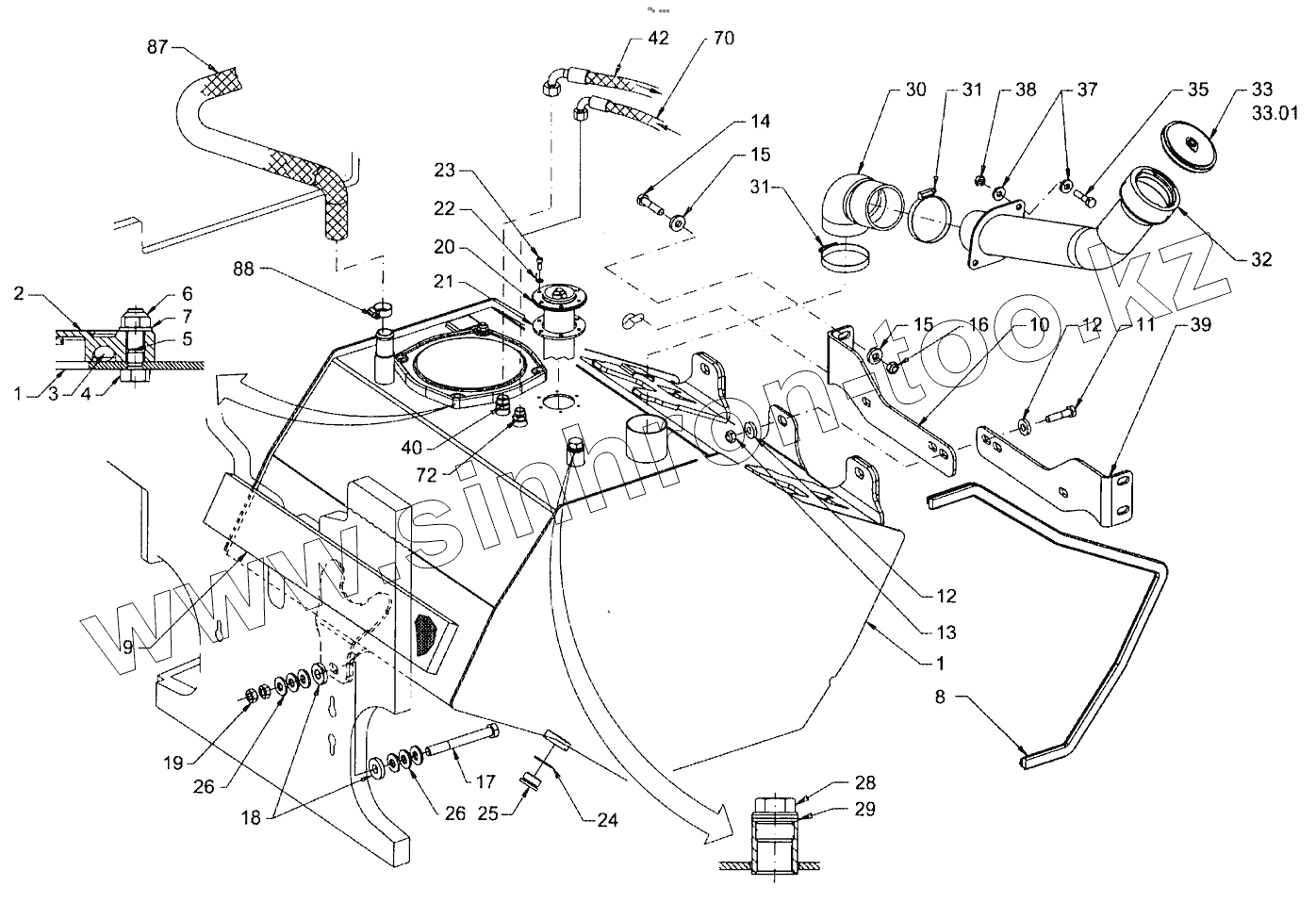

Каталог запасных частей к технике: HAMM 3520. FUEL SYSTEM 693-9999
1
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
26
28
29
30
31
31
32
33
33.01
35
37
38
39
40
42
70
72
87
88
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2085669 | FUEL TANK | |
| 2 | 571148 | LID | |
| 3 | 576476 | O-RING SEAL | |
| 4 | 216097 | HEXAGONAL NUT | |
| 5 | 242675 | STUD SCREW | |
| 6 | 216453 | HEXAGONAL NUT | |
| 7 | 216607 | WASHER | |
| 8 | 276766 | SEALING PROFILE | |
| 9 | 1509454 | INSULATION PLATE | |
| 10 | 1509071 | METAL PLATE | |
| 11 | 212024 | HEXAGON SCREW | |
| 12 | 293873 | WASHER | |
| 13 | 216461 | HEXAGONAL NUT | |
| 14 | 212024 | HEXAGON SCREW | |
| 15 | 293873 | WASHER | |
| 16 | 216461 | HEXAGONAL NUT | |
| 17 | 2081342 | HEXAGON SCREW | |
| 18 | 1481436 | U-WASHER | |
| 19 | 2080567 | HEXAGONAL NUT | |
| 20 | 886092 | FUEL LEVEL SENSOR | |
| 21 | 1206680 | SEALING | |
| 22 | 332437 | SEALING RING | |
| 23 | 1202359 | CHEESE-HEAD SCREW | |
| 24 | 233986 | SEALING RING | |
| 25 | 231398 | SCREW PLUG | |
| 26 | 2079725 | STRAIN WASHER | |
| 28 | 205907 | LOCKING SCREW | |
| 29 | 219509 | SEALING RING | |
| 30 | 1488791 | HOSE | |
| 31 | 233315 | HOSE CLAMP | |
| 32 | 860352 | FILLER NECK | |
| 33 | 228060 | TANK CAP, WITH LOCK | |
| 33.01 | 266000 | KEY | |
| 35 | 1209787 | HEXAGON SCREW | |
| 37 | 345490 | WASHER | |
| 38 | 216453 | HEXAGONAL NUT | |
| 39 | 1509098 | METAL PLATE | |
| 40 | 381063 | STRAIGHT SCREWED SOCKET | |
| 42 | 1200151 | HOSE | |
| 70 | 2043521 | HOSE | |
| 72 | 315710 | STRAIGHT SCREWED SOCKET | |
| 87 | 1504274 | CONNECTION HOSE | |
| 88 | 2083129 | HOSE CLAMP |
