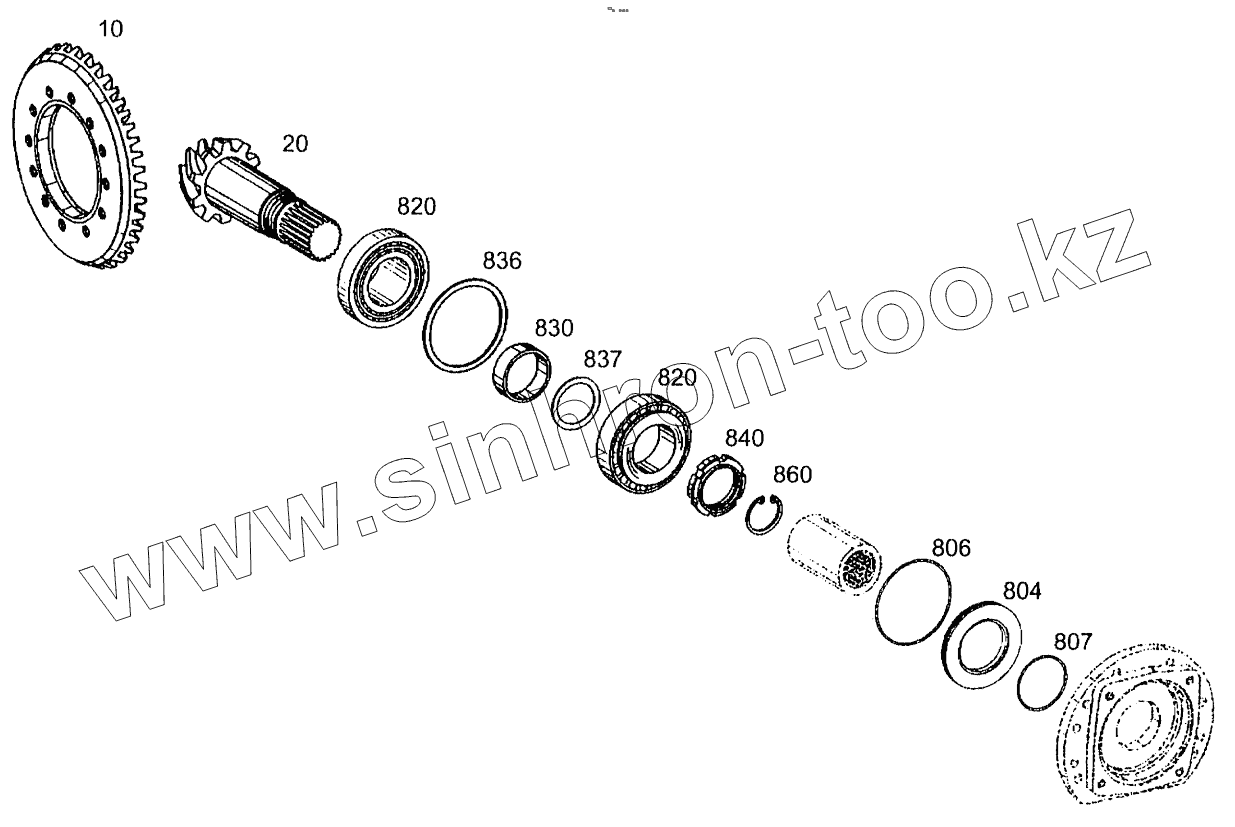

Каталог запасных частей к технике: HAMM 3518. DIFFERENTIAL CASE AND AXLE BODY
10
20
804
806
807
820
820
830
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
840
860
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 2065128 | RING GEAR | |
| 20 | 2066129 | PINION | |
| 804 | 1277707 | SPACER SHIM | |
| 806 | 1277693 | O-RING SEAL | |
| 807 | 201820 | O-RING SEAL | |
| 820 | 1282948 | TAPER ROLLER BEARING | |
| 830 | 1282956 | BUSHING | |
| 836 | 1281992 | SPACER WASHER | |
| 836 | 1281895 | SPACER WASHER | |
| 836 | 1281984 | SPACER WASHER | |
| 836 | 1281976 | SPACER WASHER | |
| 836 | 1281968 | SPACER WASHER | |
| 836 | 1281941 | SPACER WASHER | |
| 836 | 1281933 | SPACER WASHER | |
| 836 | 1281925 | SPACER WASHER | |
| 836 | 1281909 | SPACER WASHER | |
| 836 | 1281887 | SPACER WASHER | |
| 836 | 1281879 | SPACER WASHER | |
| 836 | 1281852 | SPACER WASHER | |
| 836 | 1281844 | SPACER WASHER | |
| 836 | 1281836 | SPACER WASHER | |
| 836 | 1281828 | SPACER WASHER | |
| 836 | 1281801 | SPACER WASHER | |
| 836 | 1281798 | SPACER WASHER | |
| 836 | 1281771 | SPACER WASHER | |
| 836 | 1281860 | SPACER WASHER | |
| 836 | 1281763 | SPACER WASHER | |
| 836 | 1281755 | SPACER WASHER | |
| 836 | 1281003 | SPACER WASHER | |
| 837 | 1281135 | SPACER WASHER | |
| 837 | 1281038 | SPACER WASHER | |
| 837 | 1281127 | SPACER WASHER | |
| 837 | 1281119 | SPACER WASHER | |
| 837 | 1281100 | SPACER WASHER | |
| 837 | 1281097 | SPACER WASHER | |
| 837 | 1281089 | SPACER WASHER | |
| 837 | 1281070 | SPACER WASHER | |
| 837 | 1281062 | SPACER WASHER | |
| 837 | 1281054 | SPACER WASHER | |
| 837 | 1281046 | SPACER WASHER | |
| 837 | 1281143 | SPACER WASHER | |
| 837 | 1281151 | SPACER WASHER | |
| 837 | 1281178 | SPACER WASHER | |
| 837 | 1281186 | SPACER WASHER | |
| 837 | 1281194 | SPACER WASHER | |
| 837 | 1281208 | SPACER WASHER | |
| 837 | 1281216 | SPACER WASHER | |
| 837 | 1281224 | SPACER WASHER | |
| 837 | 1281453 | SPACER WASHER | |
| 837 | 1281461 | SPACER WASHER | |
| 837 | 1281488 | SPACER WASHER | |
| 837 | 1281313 | SPACER WASHER | |
| 837 | 1281232 | SPACER WASHER | |
| 837 | 1282018 | SPACER WASHER | |
| 837 | 1281496 | SPACER WASHER | |
| 837 | 1281240 | SPACER WASHER | |
| 837 | 1281259 | SPACER WASHER | |
| 837 | 1281267 | SPACER WASHER | |
| 837 | 1281275 | SPACER WASHER | |
| 837 | 1281283 | SPACER WASHER | |
| 837 | 1281291 | SPACER WASHER | |
| 837 | 1281305 | SPACER WASHER | |
| 837 | 1281321 | SPACER WASHER | |
| 837 | 1281348 | SPACER WASHER | |
| 837 | 1281356 | SPACER WASHER | |
| 837 | 1281364 | SPACER WASHER | |
| 837 | 1281372 | SPACER WASHER | |
| 837 | 1281380 | SPACER WASHER | |
| 837 | 1281399 | SPACER WASHER | |
| 837 | 1281402 | SPACER WASHER | |
| 837 | 1281410 | SPACER WASHER | |
| 837 | 1281429 | SPACER WASHER | |
| 837 | 1281437 | SPACER WASHER | |
| 837 | 1281445 | SPACER WASHER | |
| 837 | 1281011 | SPACER WASHER | |
| 840 | 1282549 | GROOVE NUT | |
| 860 | 240915 | CIRCLIP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
