Каталог запасных частей к технике: HAMM 3516. STEERING
2
3
4
4.01
4.02
4.03
4.04
4.04
5
5.01
6
7
8
9
10
11
20
20
51
52
53
54
55
55
56
57
58
59
60
61
62
90
90.01
91
92
93
95
96
97
98
99
99
109
110

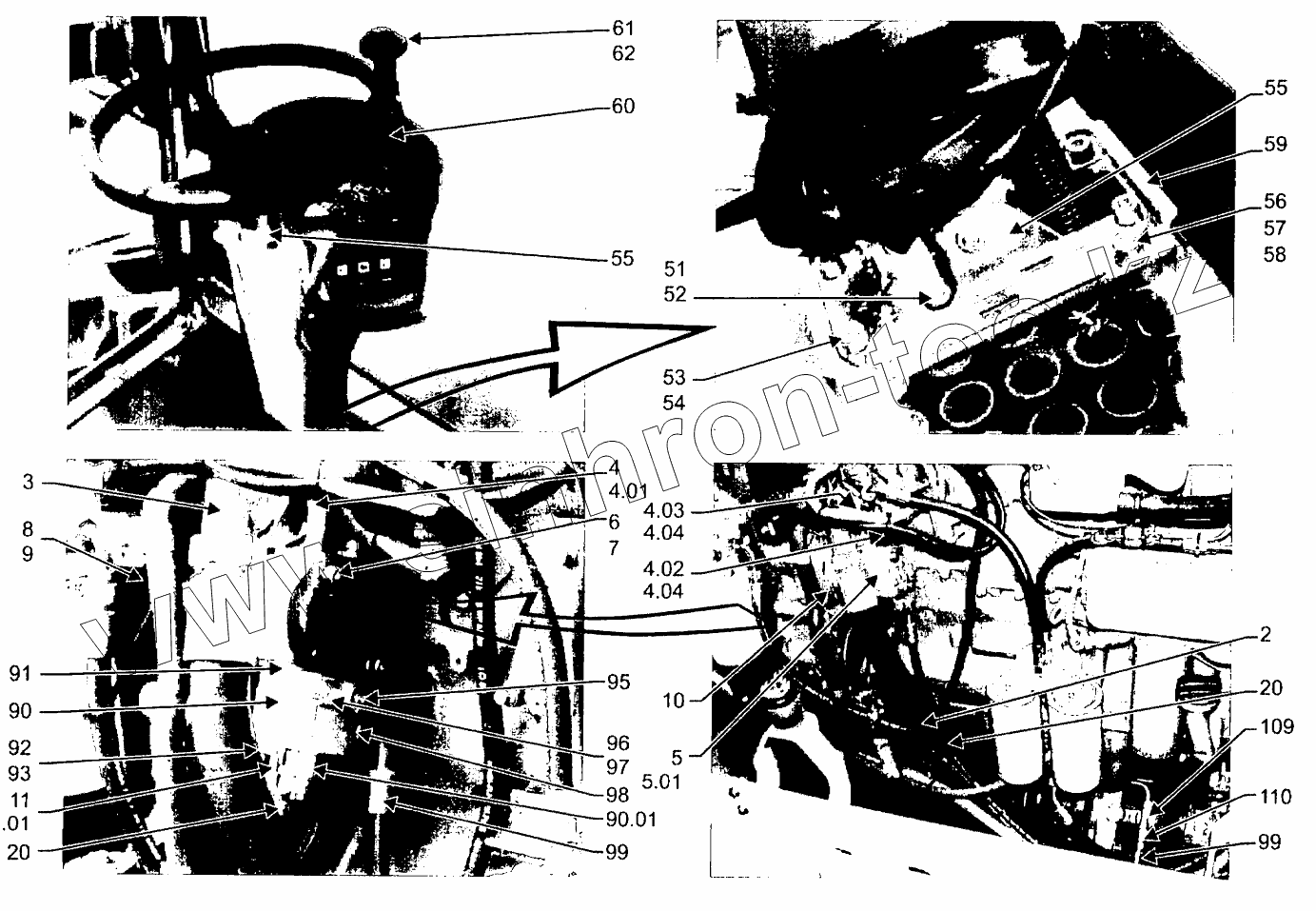

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 2014222 | HOSE | |
| 3 | 317861 | ELBOW ADJUSTABLE | |
| 4 | 2024037 | ANGLE FLANGE SCREWING | |
| 4.01 | 1280368 | O-RING SEAL | |
| 4.02 | 214469 | CHEESE-HEAD SCREW | |
| 4.03 | 340499 | CHEESE-HEAD SCREW | |
| 4.04 | 216674 | SPRING RING | |
| 5 | 2014247 | GEAR PUMP | |
| 5.01 | 2033989 | SET OF SEALS | |
| 6 | 1302825 | CHEESE-HEAD SCREW | |
| 7 | 216860 | LOCKING WASHER | |
| 8 | 1207377 | TOOTHED WHEEL | |
| 9 | 388343 | SAFETY NUT | |
| 10 | 262323 | SEALING | |
| 11 | 206695 | STRAIGHT FLANGE JOINT | |
| 11.01 | 396532 | O-RING SEAL | |
| 20 | 2039107 | FLEXIBLE TUBING | |
| 51 | 214434 | CHEESE-HEAD SCREW | |
| 52 | 276243 | LOCKING WASHER | |
| 53 | 245569 | CHEESE-HEAD SCREW | |
| 54 | 276243 | LOCKING WASHER | |
| 55 | 1256971 | STEERING COLUMN | |
| 56 | 214639 | CHEESE-HEAD SCREW | |
| 57 | 216607 | WASHER | |
| 58 | 216453 | HEXAGONAL NUT | |
| 59 | 870153 | STEERING CONSOLE | |
| 60 | 358363 | STEERING WHEEL | |
| 61 | 358398 | TURNING HANDLE | |
| 62 | 358371 | COVER | |
| 90 | 2030383 | VALVE BLOCK | |
| 90.01 | 2034414 | PRESSURE-RELIEF VALVE | |
| 91 | 396532 | O-RING SEAL | |
| 92 | 351393 | CHEESE-HEAD SCREW | |
| 93 | 216771 | SPRING RING | |
| 95 | 225355 | BANJO | |
| 96 | 366633 | FILLER CAP | |
| 97 | 206822 | UNION NUT | |
| 98 | 397610 | STRAIGHT SCREWED SOCKET | |
| 99 | 1249959 | HOSE | |
| 109 | 317810 | T-PIECE ADJUSTABLE | |
| 110 | 317624 | REDUCING CONNECTOR |
