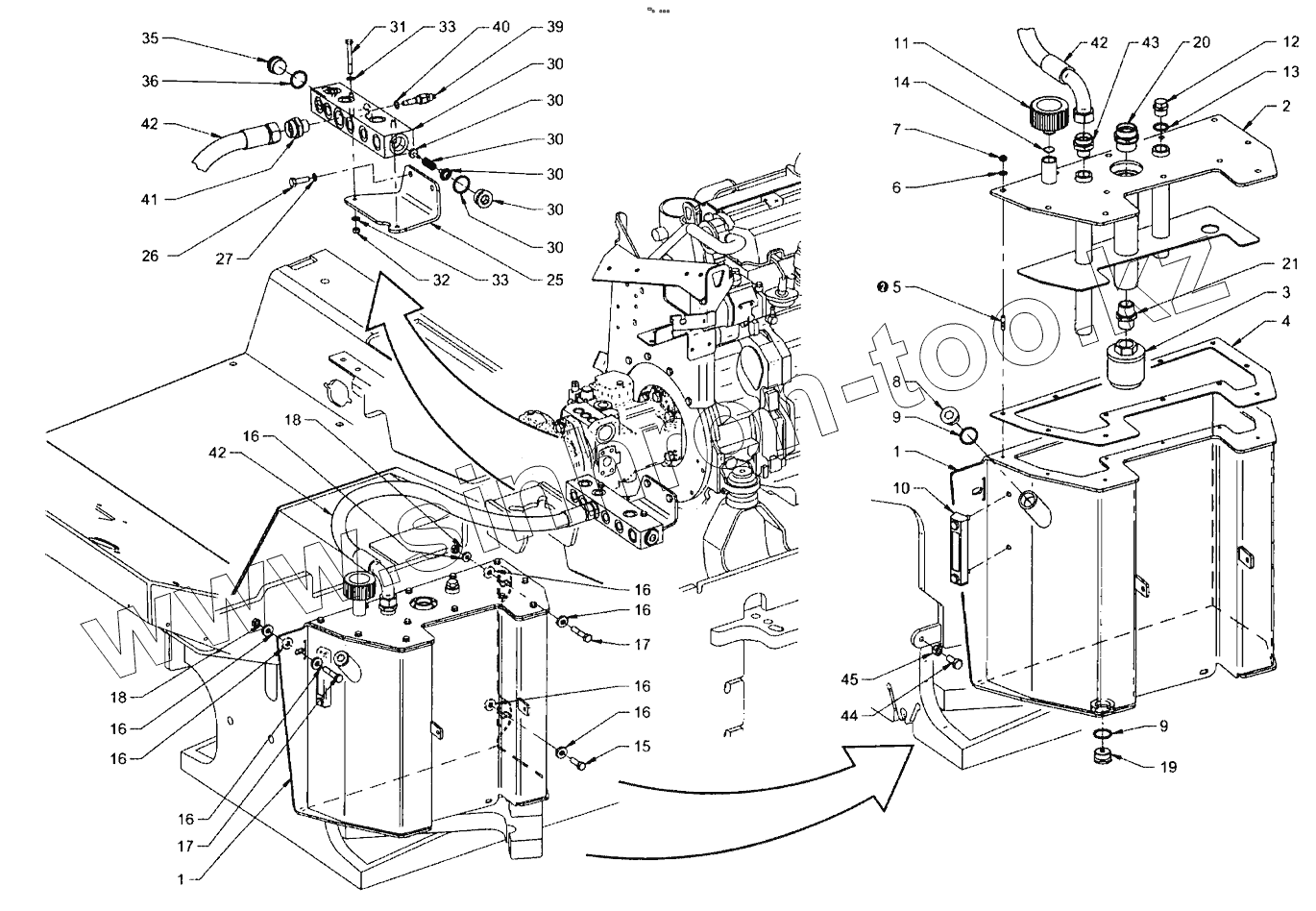

Каталог запасных частей к технике: HAMM 3516. OIL TANK
1
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
16
16
16
16
16
16
16
17
17
18
18
19
20
21
25
26
27
30
30
30
30
30
30
31
32
33
33
35
36
39
40
41
42
42
42
43
44
45
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 891940 | HYDRAULIC OIL TANK | |
| 2 | 2024555 | LID | |
| 3 | 1236199 | SUCTION FILTER | |
| 4 | 1501534 | SEALING | |
| 5 | 1208489 | STUD SCREW | |
| 6 | 216593 | WASHER | |
| 7 | 216445 | HEXAGONAL NUT | |
| 8 | 231398 | SCREW PLUG | |
| 9 | 233986 | SEALING RING | |
| 10 | 274178 | OIL LEVEL INDICATOR | |
| 11 | 1259334 | VENT FILTER | |
| 12 | 205850 | LOCKING SCREW | |
| 13 | 219509 | SEALING RING | |
| 14 | 1489534 | WASHER | |
| 15 | 211877 | HEXAGON SCREW | |
| 16 | 293873 | WASHER | |
| 17 | 212067 | HEXAGON SCREW | |
| 18 | 216461 | HEXAGONAL NUT | |
| 19 | 1259326 | SCREW PLUG | |
| 20 | 317128 | STRAIGHT SCREWED SOCKET | |
| 21 | 223522 | TWIN NIPPLE | |
| 25 | 1488643 | HOLDER | |
| 26 | 213926 | HEXAGON SCREW | |
| 27 | 276243 | LOCKING WASHER | |
| 30 | 1488635 | CONNECTING BLOCK COMPL. | |
| 31 | 1213822 | HEXAGON SCREW | |
| 32 | 216445 | HEXAGONAL NUT | |
| 33 | 216593 | WASHER | |
| 35 | 231398 | SCREW PLUG | |
| 36 | 233986 | SEALING RING | |
| 39 | 282308 | THERMO COUPLE | |
| 40 | 219398 | SEALING RING | |
| 41 | 317101 | STRAIGHT SCREWED SOCKET | |
| 42 | 1258850 | HOSE | |
| 43 | 358452 | STRAIGHT SCREWED SOCKET | |
| 44 | 211826 | HEXAGON SCREW | |
| 45 | 215996 | HEXAGONAL NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
