1
2
3
3
4
4
4
4
5
5
6
7
7
8
9
10
11
11
12
13
13.01
14
14
14
15
16
17
18

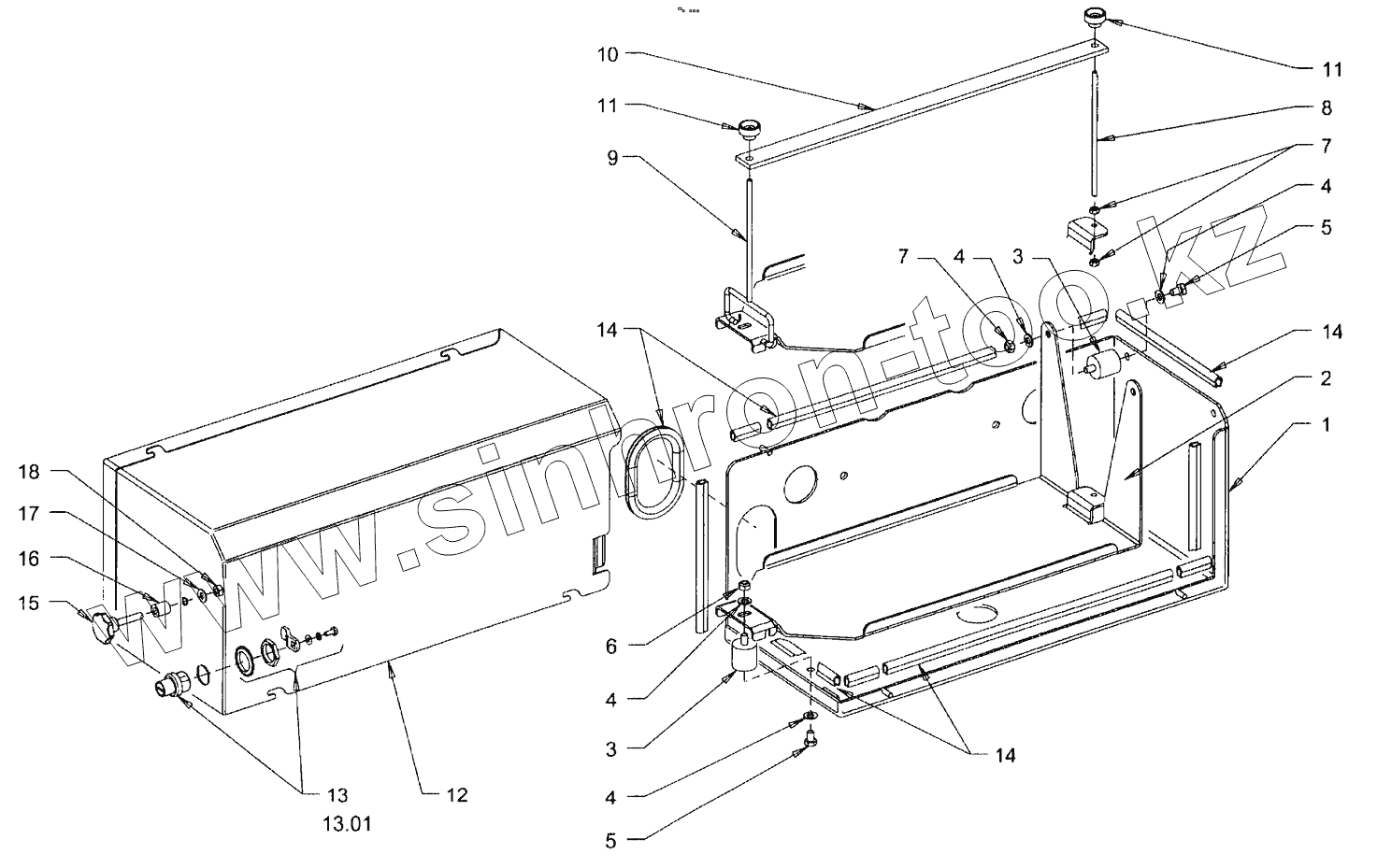

Позиция на иллюстрации
Заводской номер детали
Название детали
1
853682
BATTERY BOX
2
1468855
METAL PLATE
3
1488295
RUBBER METAL BUFFER
4
216593
WASHER
5
294942
HEXAGON SCREW
6
216445
HEXAGONAL NUT
7
216062
HEXAGONAL NUT
8
1464833
THREADED ROD
9
860058
TENSION CLAMP
10
1445626
FLAT STEEL
11
1234250
KNURLED NUT
12
1479156
HOOD
13
386570
BUILT-IN LOCK
13.01
367125
KEY
14
250228
EDGE PROTECTION
15
392863
HANDLE SCREW
16
1454072
DISTANCE PIECE
17
216593
WASHER
18
216445
HEXAGONAL NUT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
