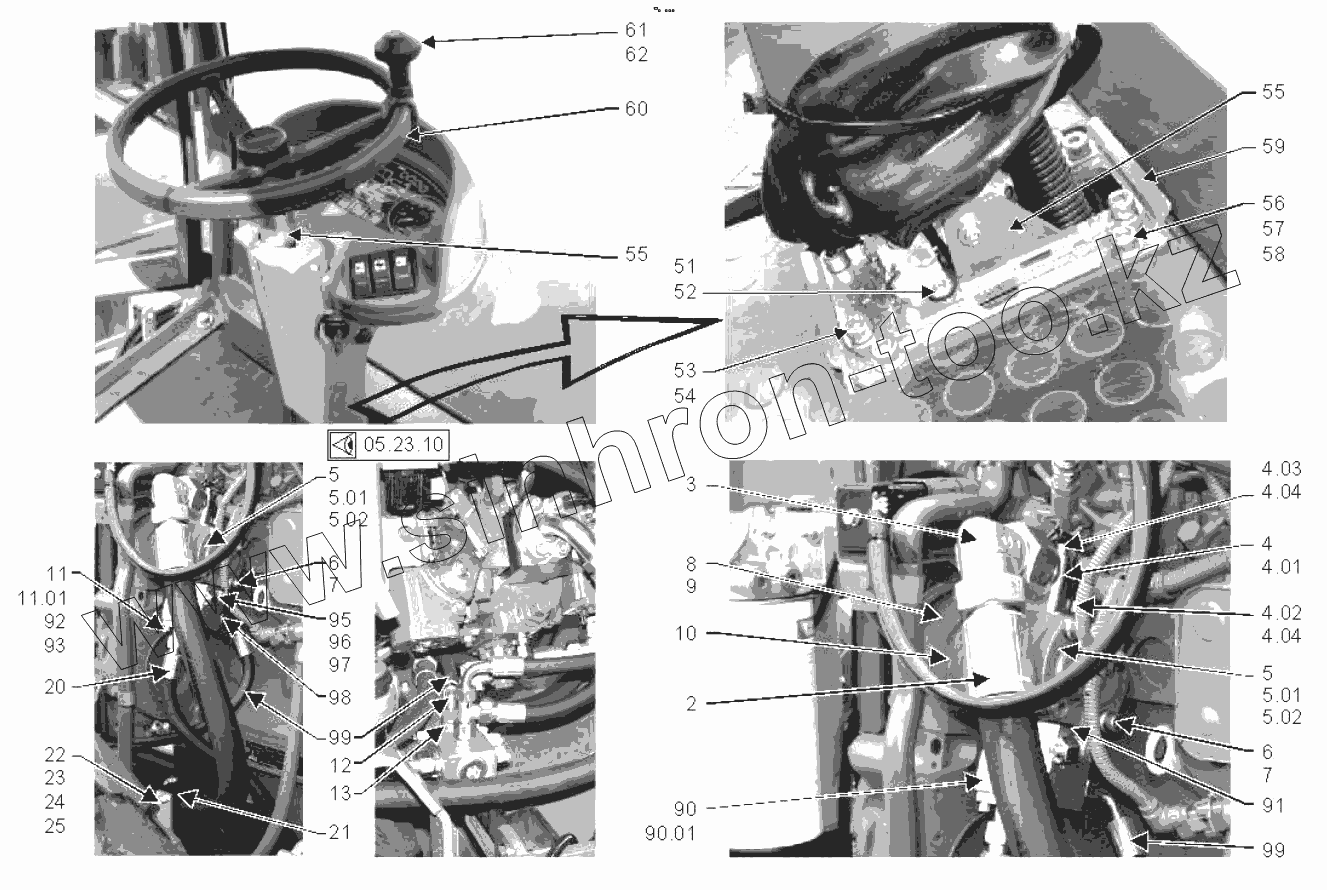

Каталог запасных частей к технике: HAMM 3411. STEERING
2
2
3
4
4.01
4.02
4.03
4.04
4.04
5
5
5.01
5.01
5.02
6
6
7
7
8
9
10
11
11.01
12
13
20
21
21
22
22
23
24
25
51
52
53
54
55
55
56
57
58
59
60
61
62
90
90.01
91
92
93
95
96
97
98
99
99
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 2014222 | HOSE | |
| 3 | 317861 | ELBOW ADJUSTABLE | |
| 4 | 1297538 | ANGLE FLANGE SCREWING | |
| 4.01 | 1215426 | O-RING SEAL | |
| 4.02 | 214418 | CHEESE-HEAD SCREW | |
| 4.03 | 325449 | CHEESE-HEAD SCREW | |
| 4.04 | 216666 | SPRING RING | |
| 5 | 240974 | GEAR PUMP | |
| 5.01 | 1231286 | SET OF SEALS | |
| 5.02 | 354457 | SHAFT KEY | |
| 6 | 341991 | CHEESE-HEAD SCREW | |
| 7 | 1485245 | U-WASHER | |
| 8 | 1207377 | TOOTHED WHEEL | |
| 9 | 388343 | SAFETY NUT | |
| 10 | 262323 | SEALING | |
| 11 | 206695 | STRAIGHT FLANGE JOINT | |
| 11.01 | 396532 | O-RING SEAL | |
| 12 | 317837 | ELBOW ADJUSTABLE | |
| 13 | 1249908 | STRAIGHT SCREW-IN CONNECTION | |
| 20 | 304182 | HOSE | |
| 21 | 1535420 | HALF-CLIP VERSION WITHOUT BLADE | |
| 21 | 1504622 | HALF-CLIP VERSION WITH BLADE | |
| 22 | 1486756 | FLAT STEEL | |
| 22 | 1499963 | TOP COVER VERSION WITH BLADE | |
| 23 | 359270 | STUD SCREW | |
| 24 | 216593 | WASHER | |
| 25 | 1209302 | SAFETY NUT | |
| 51 | 215015 | CHEESE-HEAD SCREW | |
| 52 | 276243 | LOCKING WASHER | |
| 53 | 245569 | CHEESE-HEAD SCREW | |
| 54 | 276243 | LOCKING WASHER | |
| 55 | 1256971 | STEERING COLUMN | |
| 56 | 214639 | CHEESE-HEAD SCREW | |
| 57 | 216607 | WASHER | |
| 58 | 388220 | SAFETY NUT | |
| 59 | 870153 | STEERING CONSOLE | |
| 60 | 358363 | STEERING WHEEL | |
| 61 | 358398 | TURNING HANDLE | |
| 62 | 358371 | COVER | |
| 90 | 2030383 | VALVE BLOCK | |
| 90.01 | 2034414 | PRESSURE-RELIEF VALVE | |
| 91 | 396532 | O-RING SEAL | |
| 92 | 351393 | CHEESE-HEAD SCREW | |
| 93 | 216771 | SPRING RING | |
| 95 | 225355 | BANJO | |
| 96 | 366633 | FILLER CAP | |
| 97 | 206822 | UNION NUT | |
| 98 | 397610 | STRAIGHT SCREWED SOCKET | |
| 99 | 396478 | HOSE |
