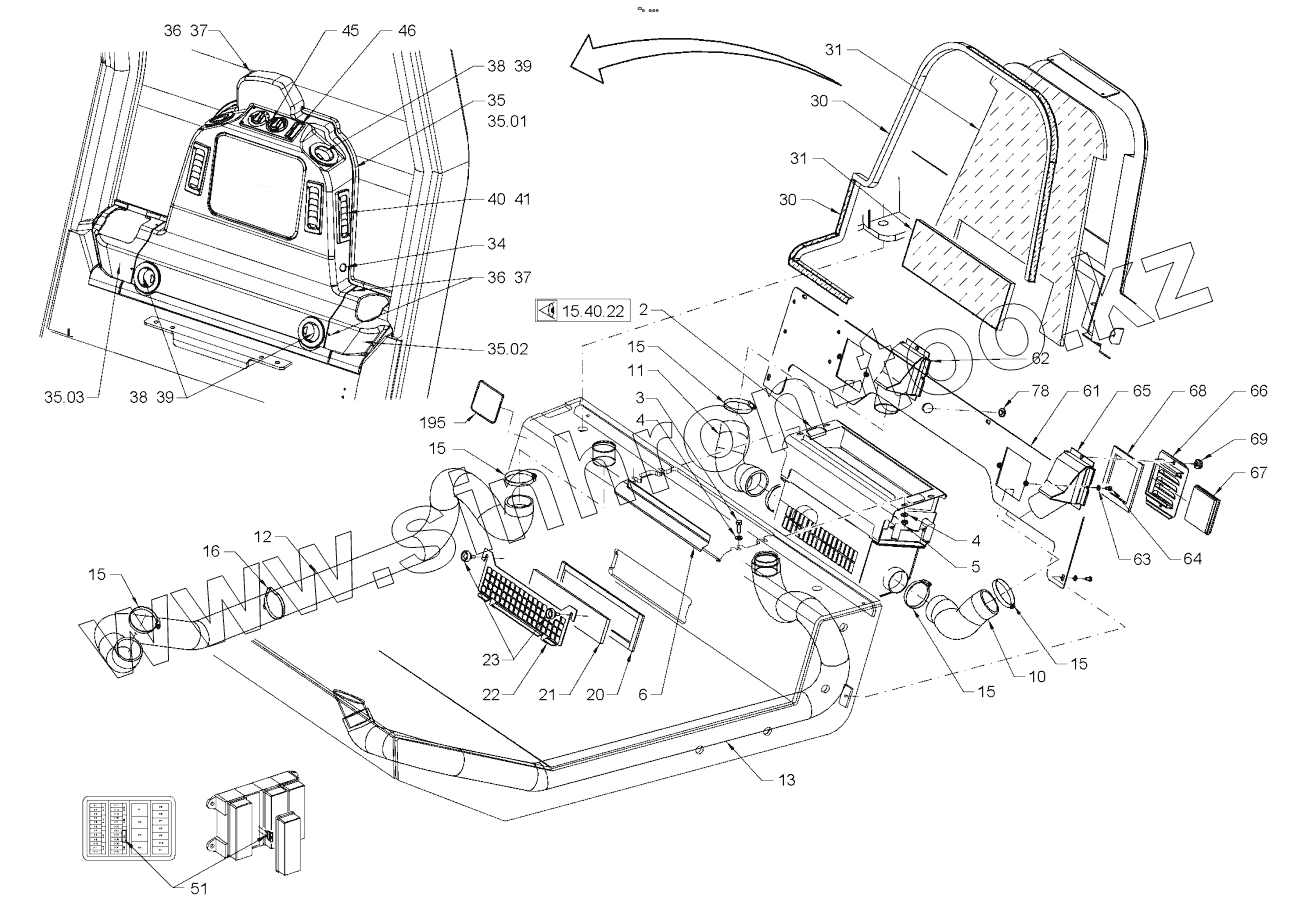

Каталог запасных частей к технике: HAMM 3411. HEATING AND AIR CONDITIONING
2
3
4
4
5
6
10
11
12
13
15
15
15
15
15
16
20
21
22
23
30
30
31
31
34
35
35.01
35.02
35.03
36
36
37
37
38
38
39
39
40
41
45
46
51
61
62
63
64
65
66
67
68
69
78
195
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 2095591 | BLOWER UNIT COMPL. | |
| 3 | 213799 | HEXAGON SCREW | |
| 4 | 216593 | WASHER | |
| 5 | 216445 | HEXAGONAL NUT | |
| 6 | 1271113 | SEALING TAPE | |
| 10 | 615312 | HOT AIR HOSE | |
| 11 | 615312 | HOT AIR HOSE | |
| 12 | 615312 | HOT AIR HOSE | |
| 13 | 615312 | HOT AIR HOSE | |
| 15 | 2057873 | HOSE CLAMP | |
| 16 | 267341 | WIRE FASTENER | |
| 20 | 255769 | SEALING TAPE | |
| 21 | 1274325 | PREFILTER | |
| 22 | 1502719 | METAL PLATE | |
| 23 | 391484 | KNURLED HEAD SCREW | |
| 30 | 615444 | SEALING TAPE | |
| 31 | 875562 | INSULATION PLATE SET | |
| 34 | 2108673 | FILLER CAP | |
| 35 | 2179327 | COVERING PART COMPL. | |
| 35.01 | 2179296 | COVERING PART | |
| 35.02 | 2179326 | COVERING PART LEFT | |
| 35.03 | 2179325 | COVERING PART RIGHT | |
| 36 | 232513 | FILLISTER HEAD SCREW | |
| 37 | 274356 | WASHER | |
| 38 | 385719 | ROUND NOZZLE | |
| 39 | 384771 | SHEET METAL SCREW | |
| 40 | 1263153 | DIFFUSER | |
| 41 | 384771 | SHEET METAL SCREW | |
| 45 | 1263137 | SWITCH HEATING-VENTILATING | |
| 46 | 384771 | SHEET METAL SCREW | |
| 51 | 384062 | BLADE-TYPE FUSE 15A | |
| 61 | 875546 | COVER SHEET | |
| 62 | 875635 | FILTER HOUSING RIGHT | |
| 63 | 216577 | WASHER | |
| 64 | 234605 | CHEESE-HEAD SCREW | |
| 65 | 875422 | FILTER HOUSING LEFT | |
| 66 | 875392 | FAN GRILLE | |
| 67 | 1502751 | FILTER | |
| 68 | 255769 | SEALING TAPE | |
| 69 | 1274317 | KNURLED NUT | |
| 78 | 1264168 | FILLER CAP | |
| 195 | 2108651 | LABEL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
