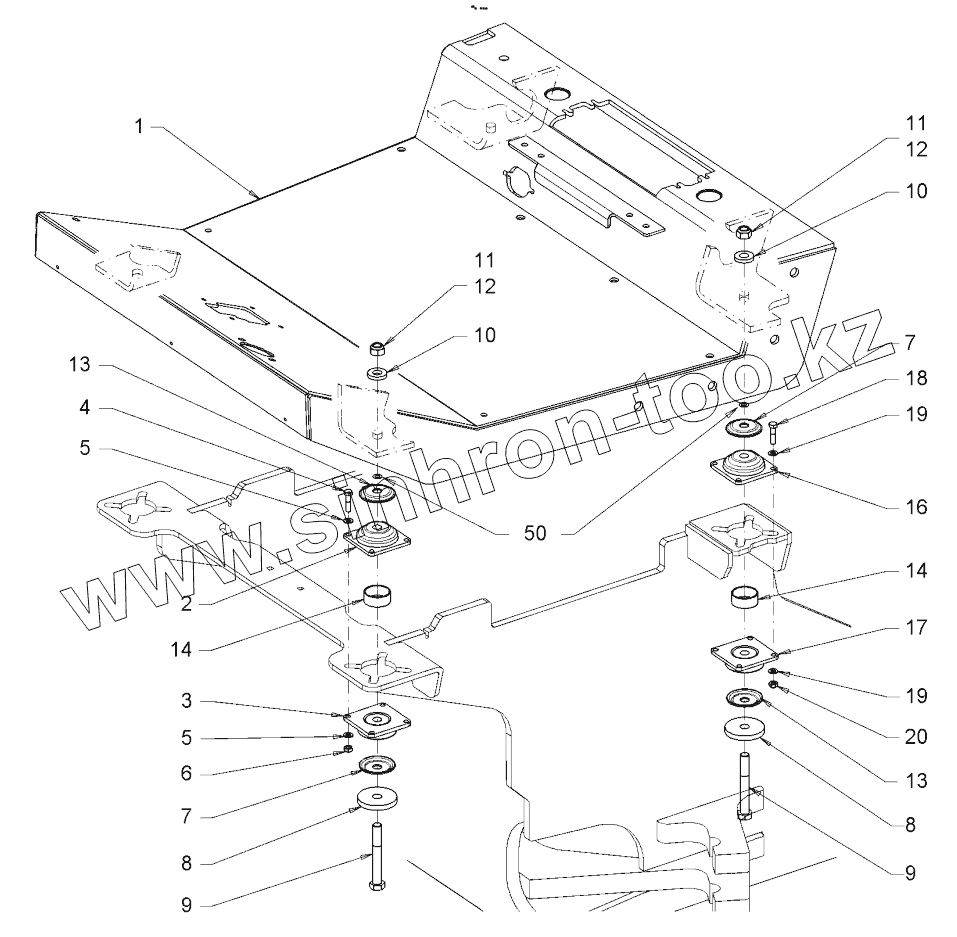

Каталог запасных частей к технике: HAMM 3411. DRIVER'S CAB
1
2
2
3
3
4
5
5
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
16
16
17
17
18
19
19
20
50
50
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 860069 | OPERATOR'S PLATFORM | |
| 2 | 1255339 | RUBBER METAL BUFFER VERSION WITH ROPS/CABIN,50SH | |
| 2 | 2053721 | RUBBER METAL BUFFER VERSION WITHOUT ROPS/CABIN,40SH | |
| 3 | 1255320 | RUBBER METAL BUFFER VERSION WITH ROPS/CABIN,50SH | |
| 3 | 2053722 | RUBBER METAL BUFFER VERSION WITHOUT ROPS/CABIN,40SH | |
| 4 | 1209787 | HEXAGON SCREW | |
| 5 | 216607 | WASHER | |
| 6 | 388220 | SAFETY NUT | |
| 7 | 1443356 | WASHER | |
| 8 | 1449672 | WASHER | |
| 9 | 1302183 | HEXAGON SCREW | |
| 10 | 383120 | WASHER | |
| 11 | 361763 | SAFETY NUT | |
| 12 | 1268430 | PROTECTIVE CAP | |
| 13 | 1537229 | WASHER | |
| 14 | 1537210 | RING | |
| 16 | 1255339 | RUBBER METAL BUFFER VERSION WITH ROPS/CABIN,50SH | |
| 16 | 2053721 | RUBBER METAL BUFFER VERSION WITHOUT ROPS/CABIN,40SH | |
| 17 | 1255320 | RUBBER METAL BUFFER VERSION WITH ROPS/CABIN,50SH | |
| 17 | 2053722 | RUBBER METAL BUFFER VERSION WITHOUT ROPS/CABIN,40SH | |
| 18 | 1209787 | HEXAGON SCREW | |
| 19 | 216607 | WASHER | |
| 20 | 388220 | SAFETY NUT | |
| 50 | 233269 | WASHER | |
| 50 | 233625 | WASHER | |
| 50 | 358436 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
