Каталог запасных частей к технике: HAMM 3411. BANDAGE WITH VIBRATOR (WITH BANDAGE DRIVE)
2
2
3
4
5
8
9
11
11
12
12
50
51
52
52
97
100
101
102
103
104
105
106
110
111
112
113
114
115
116
117
118
119
120
121
122
123
125
126
126
130
131

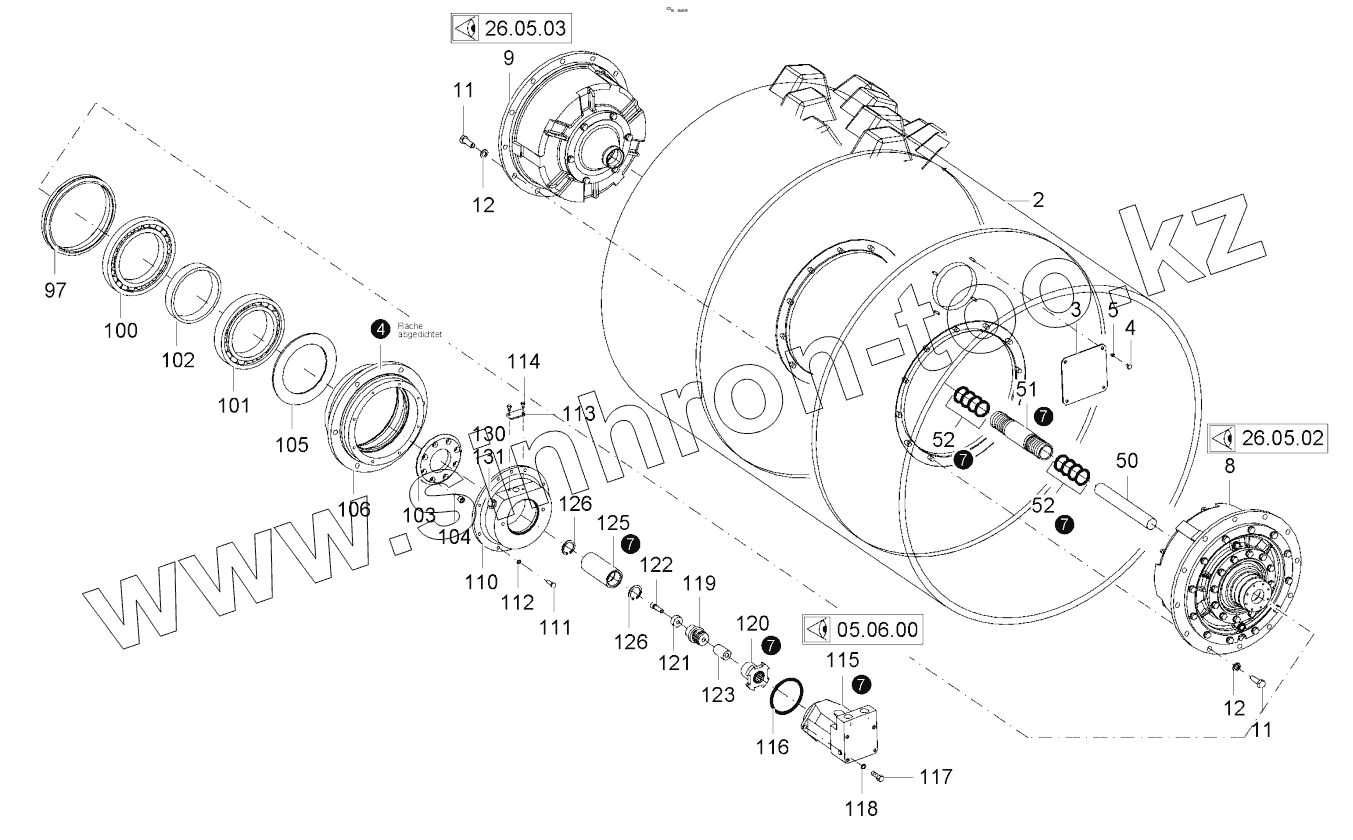

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 2058519 | PADFOOT DRUM | |
| 2 | 2058518 | SMOOTH ROLLER DRUM | |
| 3 | 446033 | LID | |
| 4 | 213683 | HEXAGON SCREW | |
| 5 | 276243 | LOCKING WASHER | |
| 8 | 2208068 | VIBRATOR | |
| 9 | 2208071 | VIBRATOR | |
| 11 | 2119468 | HEXAGON SCREW | |
| 12 | 2173175 | LOCKING WASHER | |
| 50 | 873896 | COUPLING SHAFT | |
| 51 | 1524305 | PIPE | |
| 52 | 385859 | O-RING SEAL | |
| 97 | 383260 | AXIAL FACE SEAL | |
| 100 | 288268 | GROOVED BALL BEARING | |
| 101 | 370665 | GROOVED BALL BEARING | |
| 102 | 477494 | RING | |
| 103 | 477486 | LID | |
| 104 | 312886 | CHEESE-HEAD SCREW | |
| 105 | 1232932 | SPACER SHIM | |
| 106 | 486922 | FLANGE | |
| 110 | 1524437 | FLANGE | |
| 111 | 213799 | HEXAGON SCREW | |
| 112 | 276332 | LOCKING WASHER | |
| 113 | 1464868 | COVER SHEET | |
| 114 | 213624 | HEXAGON SCREW | |
| 115 | 1298445 | HYDRAULIC MOTOR | |
| 116 | 337609 | O-RING SEAL | |
| 117 | 2119582 | HEXAGON SCREW | |
| 118 | 2175175 | LOCKING WASHER | |
| 119 | 1524488 | LOCKING SCREW | |
| 120 | 873985 | DRIVER | |
| 121 | 231355 | WASHER | |
| 122 | 1298488 | HEXAGON SCREW | |
| 123 | 1524461 | DISTANCE PIECE | |
| 125 | 422258 | SPLINE BUSH | |
| 126 | 217735 | CIRCLIP | |
| 130 | 205850 | LOCKING SCREW | |
| 131 | 219509 | SEALING RING |
