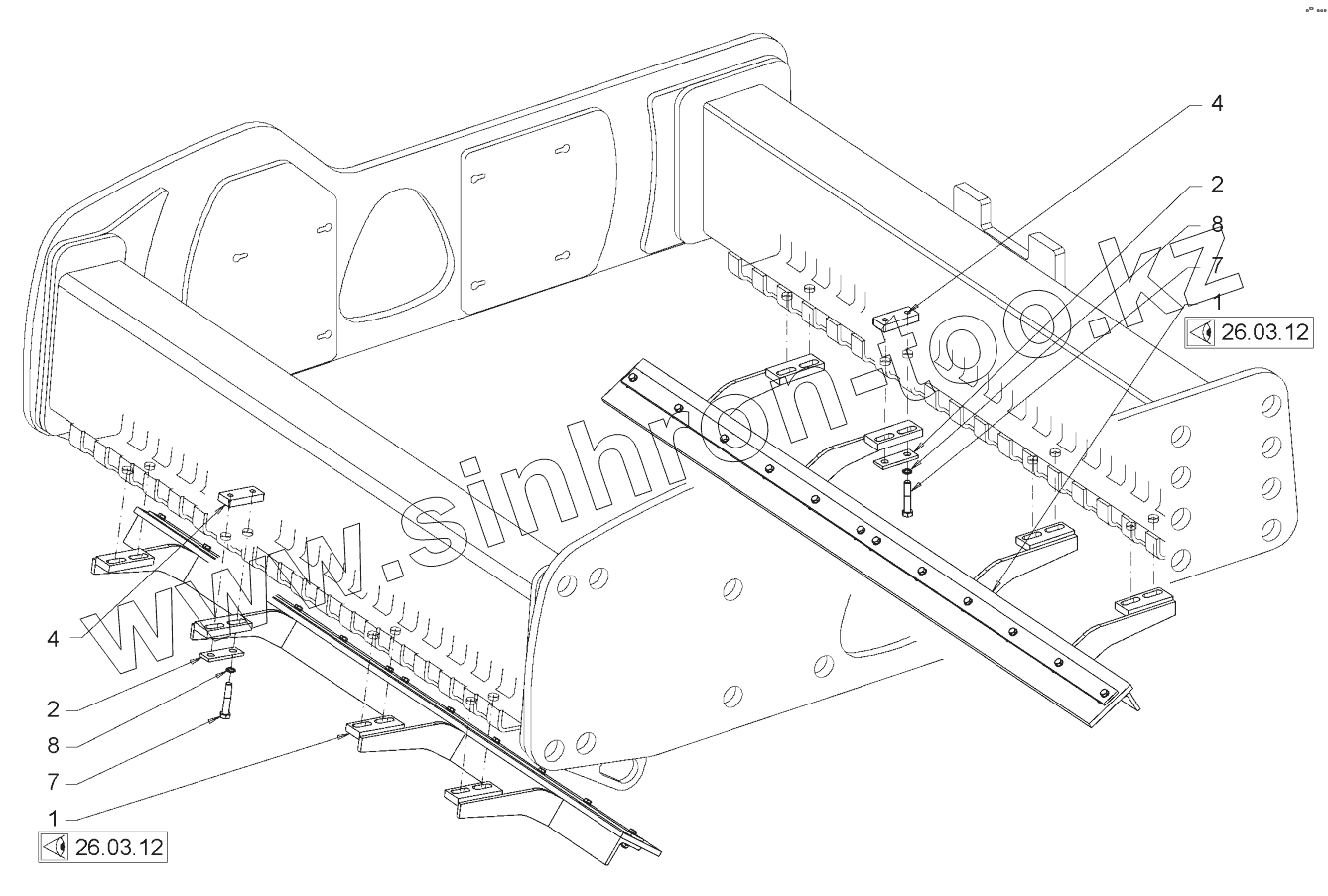

Каталог запасных частей к технике: HAMM 3411. SCRAPER (SMOOTH ROLLER DRUM)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 3410 (2015) 3410 (2021) 3411 (2015) 3411 (2021) 3516 (2008) 3518 (2008) 3520 (2008) GRW 10 GRW 10 (2009) GRW 15 GRW 15 (2009) GRW 18 GRW 18 (2009) GRW 21 GRW 21 (2009) GRW 24 GRW 24 (2009) HD110 (2021) HD90 (2021)

Схема > Не выбрано MAIN FRAME AND ASSEMBLIES CANOPIES AND COVERS CANOPIES AND COVERS CANOPIES AND COVERS BATTERY BOX TOOL BOX STICKER ARRANGEMENT STICKER ARRANGEMENT STICKER ARRANGEMENT STICKER ARRANGEMENT STICKER ARRANGEMENT SOUND-INSULATION OPERATOR PLATFORM OPERATOR'S SEAT WITH ADJUSTMENT ROLL OVER PROTECTION ROLL OVER PROTECTION FOPS HANDLES INSTRUMENT PANEL CASE INSTRUMENT PANEL COVERING OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING OPERATOR'S CABIN VERSION WITH AIR CONDITIONING OPERATOR'S CABIN VERSION WITH AIR CONDITIONING OPERATOR'S CABIN VERSION WITH AIR CONDITIONING OPERATOR'S CABIN VERSION WITH AIR CONDITIONING OPERATOR'S CABIN VERSION WITH AIR CONDITIONING OPERATOR'S CABIN VERSION WITH AIR CONDITIONING OPERATOR'S CABIN VERSION WITH AIR CONDITIONING OPERATOR'S CABIN VERSION WITH AIR CONDITIONING OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN OPERATOR'S CABIN CABIN-HEATING STANDARD CABIN-HEATING STANDARD CABIN-HEATING ENHANCED CABIN-HEATING ENHANCED CABIN-HEATING ENHANCED PUMP DRIVE AND ENGINE ASSEMBLY PUMP DRIVE AND ENGINE ASSEMBLY PUMP DRIVE AND ENGINE ASSEMBLY FUEL SYSTEM FUEL SYSTEM FUEL SYSTEM FUEL SYSTEM FUEL SYSTEM FUEL FILTER FUEL FILTER ENGINE CONTROL ENGINE CONTROL AIR FILTER SYSTEM STANDARD AIR FILTER WITH PRE-CLEANER EXHAUST SYSTEM EXHAUST SYSTEM COOLING (ENGINE/HYDRAULIC OIL) COOLING (ENGINE/HYDRAULIC OIL) COOLING (ENGINE/HYDRAULIC OIL) COOLING (ENGINE/HYDRAULIC OIL) TILTING HYDRAULIC (ENGINE COWLING) TILTING HYDRAULIC (ENGINE COWLING) DRIVING GEAR (VARIABLE DISPLACEMENT PUMP - DRIVE) DRIVING GEAR (VARIABLE DISPLACEMENT PUMP - VIBRATION DRIVE) VARIABLE DISPLACEMENT MOTOR (AXLE DRIVE) CONSTANT MOTOR (VIBRATION DRIVE) WHEEL GEAR (DRUM DRIVE) WHEEL GEAR DRUM DRIVE VARIABLE DISPLACEMENT MOTOR (DRUM DRIVE) VARIABLE DISPLACEMENT MOTOR GEAR HUB MOTOR VALVE BLOCK (GEAR SHIFTING) VALVE BLOCK (PARKING BRAKE) FILTER (HYDRAULIC OIL) FILTER (HYDRAULIC OIL) FILTER (HYDRAULIC STEERING SYSTEM) FILTER (HYDRAULIC STEERING SYSTEM) PUMP (HYDRAULIC STEERING SYSTEM) PUMP (BLADE) COLLECTING BLOCK (HYDRAULIC OIL) OIL TANK OIL FILTER SYSTEM OIL FILTER SYSTEM ELECTRICAL SYSTEM ELECTRICAL SYSTEM ELECTRICAL SYSTEM ELECTRICAL SYSTEM ELECTRICAL SYSTEM ELECTRICAL SYSTEM ELECTRICAL SYSTEM ELECTRICAL SYSTEM (LIGHTING) ELECTRICAL SYSTEM (LIGHTING) ELECTRICAL SYSTEM (RADIO) PLANETARY AXLE AND SUSPENSION DIFFERENTIAL CASE AND AXLE BODY DIFFERENTIAL CASE AND AXLE BODY DIFFERENTIAL WITH DIFFERENTIAL LOCK PARKING BRAKE PLANETARY GEAR PLANETARY AXLE AND SUSPENSION DIFFERENTIAL CASE AND AXLE BODY DIFFERENTIAL CASE AND AXLE BODY DIFFERENTIAL WITH DIFFERENTIAL LOCK PARKING BRAKE PLANETARY GEAR TIRE EQUIPMENT TIRE EQUIPMENT TIRE EQUIPMENT ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE ADVANCE DRIVE DRIVE SHIFTING PARKING BRAKE PARKING BRAKE CENTRE PIVOT ASSEMBLY CENTRE PIVOT ASSEMBLY STEERING STEERING STEERING STEERING BLADE HYDRAULIC SYSTEM (BLADE) HYDRAULIC SYSTEM (BLADE) ELECTRICAL SYSTEM (BLADE) SUN ROOF SUN ROOF SUN ROOF PROTECTIVE ROOF PROTECTIVE ROOF SAFETY BUMPER LAMP PROTECTION GRID (TUV FRANCE) PADFOOT SEGMENTS BYPASS OIL FILTER ADDITIONAL LIGHTING, ROPS ADDITIONAL LIGHTING, FOPS ADDITIONAL LIGHTING LED ADDITIONAL LIGHTING ADDITIONAL LIGHTING VIBRO AUTOMATIC HEATING AND AIR CONDITIONING STANDARD HEATING AND AIR CONDITIONING STANDARD HEATING AND AIR CONDITIONING STANDARD HEATING AND AIR CONDITIONING STANDARD HEATING AND AIR CONDITIONING TROPICAL VERSION HEATING AND AIR CONDITIONING TROPICAL VERSION HEATING AND AIR CONDITIONING TROPICAL VERSION HEATING AND AIR CONDITIONING TROPICAL VERSION HEATING AND AIR CONDITIONING TROPICAL VERSION HEATING AND AIR CONDITIONING TROPICAL VERSION HEATING AND AIR CONDITIONING TROPICAL VERSION HEATING AND AIR CONDITIONING TROPICAL VERSION HEATING AND AIR CONDITIONING TROPICAL VERSION SEAT CONTACT SWITCH (TUV FRANCE) ROTARY BEACON (DRIVER'S CABIN) ROTARY BEACON (ROPS) ROTARY BEACON WARNING LIGHT (SUN ROOF) ROTARY BEACON FREQUENCY METER (VIBRATION) BACK-UP ALARM (BACK-UP) SPEEDOMETER COMPACTOMETER HCQ COMPACTION DOCUMENTATION COMPACTION DOCUMENTATION TACHOGRAPH TACHOGRAPH FIRE EXTINGUISHER HOSE PROTECTION (FRONT FRAME) TUV ITALY TUV ITALY HOMOLOGATION RUSSIA SUSPENSION (ROLLER DRUM) SUSPENSION (ROLLER DRUM) MOUNTING MOUNTING SCRAPER (SMOOTH ROLLER DRUM) SCRAPER (SMOOTH ROLLER DRUM) SCRAPER (PADFOOT DRUM) SCRAPER (SPRING STEEL) SCRAPER (L-STEEL, SMOOTH ROLLER DRUM) SMOOTH ROLLER DRUM WITH VIBRATOR (WITH DRUM DRIVE) DRUM WITH VIBRATOR (WITH DRUM DRIVE) SMOOTH ROLLER DRUM WITH VIBRATOR (WITH DRUM DRIVE) VIBRATION DRIVE VIBRATION DRIVE ADDITIONAL STORAGE CAMERA SYSTEM HCQ PREPARATION, KAB HCQ PREPARATION, KAB HCQ PREPARATION, ROPS HCQ PREPARATION, ROPS HCQ-PREPARATION HCQ PREPARATION HCQ PREPARATION HCQ-PREPARATION WIFMS INTERFACE WIFMS INTERFACE WITOS WITOS PARK HEATING PARK HEATING HOMOLOGATION AUSTRALIA HOMOLOGATION BRAZIL MAINTENANCE KITS AND REPAIR KITS

1

1

2

2

4

4

7

7

8

8

Позиция на иллюстрации	Заводской номер детали		Название детали
1	869430		SCRAPER COMPL.
2	1485199		FLAT STEEL
4	1495542		FLAT STEEL
7	2119321		HEXAGON SCREW
8	1237608		LOCKING WASHER

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
