Каталог запасных частей к технике: HAMM 3411. PUMP DRIVE AND ENGINE ASSEMBLY
2
3
4
5
6
6.01
7
7.01
8
8
9
9
10
11
12
13
15
15.01
15.02
16
20
21
22
24
25
26
27
27
30
31
32
35
35
35.01
35.01
35.02
35.02
35.03
36
37
38
39
41
41
42
43
43
44
45
46
47
47
48
49
50
51
52
53
70
71
72
73
80
81
82
171
172
174
175

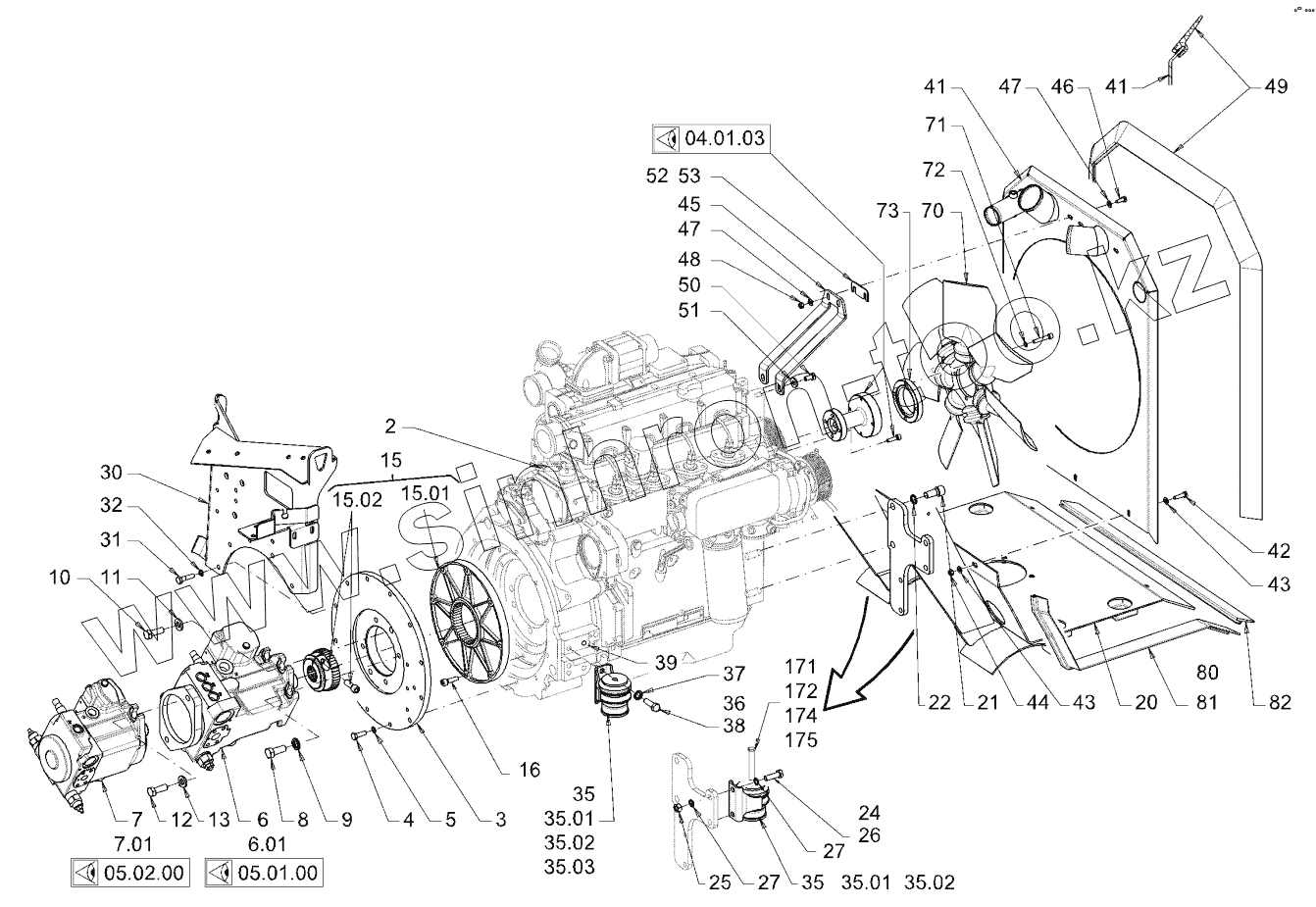

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 2043451 | DIESEL ENGINE | |
| 3 | 1489208 | FLANGE | |
| 4 | 213888 | HEXAGON SCREW | |
| 5 | 276243 | LOCKING WASHER | |
| 6 | 1297449 | VARIABLE DISPLAC. PUMP | |
| 6.01 | 2034192 | SET OF SEALS | |
| 7 | 1298437 | VARIABLE DISPLAC. PUMP | |
| 7.01 | 2020546 | SET OF SEALS | |
| 8 | 1209973 | HEXAGON SCREW | |
| 8 | 213985 | HEXAGON SCREW | |
| 9 | 557234 | WASHER | |
| 9 | 2175175 | LOCKING WASHER | |
| 10 | 1208721 | HEXAGON SCREW | |
| 11 | 250473 | WASHER VERSION 3411 | |
| 12 | 1208721 | HEXAGON SCREW | |
| 13 | 250473 | WASHER VERSION 3411 | |
| 15 | 866180 | COUPLING | |
| 15.01 | 1269666 | ELASTIC PART | |
| 15.02 | 1269674 | HUB | |
| 16 | 214639 | CHEESE-HEAD SCREW | |
| 20 | 2362638 | HOLDER SYSTEM | |
| 21 | 2119297 | CHEESE-HEAD SCREW | |
| 22 | 1237608 | LOCKING WASHER | |
| 24 | 213985 | HEXAGON SCREW | |
| 25 | 2534252 | SAFETY NUT | |
| 26 | 214051 | HEXAGON SCREW | |
| 27 | 2175175 | LOCKING WASHER | |
| 30 | 891118 | CONSOLE | |
| 31 | 2119450 | HEXAGON SCREW | |
| 32 | 276243 | LOCKING WASHER | |
| 35 | 341649 | ENGINE MOUNTING FOOT | |
| 35.01 | 344621 | RUBBER RING | |
| 35.02 | 388327 | PROTECTING COVER | |
| 35.03 | 344648 | RUBBER RING | |
| 36 | 214094 | HEXAGON SCREW | |
| 37 | 381543 | WASHER | |
| 38 | 213942 | HEXAGON SCREW | |
| 39 | 2573361 | FILLER CAP | |
| 41 | 891487 | AIR PLATE | |
| 42 | 339180 | HEXAGON SCREW | |
| 43 | 216593 | WASHER | |
| 44 | 1209302 | SAFETY NUT | |
| 45 | 1519093 | RETAINING SHEET | |
| 46 | 339180 | HEXAGON SCREW | |
| 47 | 216593 | WASHER | |
| 48 | 1209302 | SAFETY NUT | |
| 49 | 615290 | SEALING PROFILE | |
| 50 | 2119445 | HEXAGON SCREW | |
| 51 | 345490 | WASHER | |
| 52 | 2038795 | DISTANCE SHEET | |
| 53 | 2038796 | DISTANCE SHEET | |
| 70 | 1273221 | FAN | |
| 71 | 376485 | CHEESE-HEAD SCREW | |
| 72 | 276332 | LOCKING WASHER | |
| 73 | 2067619 | DISTANCE RING | |
| 80 | 2087400 | SEALING | |
| 81 | 2087402 | SEALING | |
| 82 | 2087401 | SEALING | |
| 171 | 276200 | HEXAGON SCREW | |
| 172 | 381543 | WASHER | |
| 174 | 293873 | WASHER | |
| 175 | 2534252 | SAFETY NUT |
