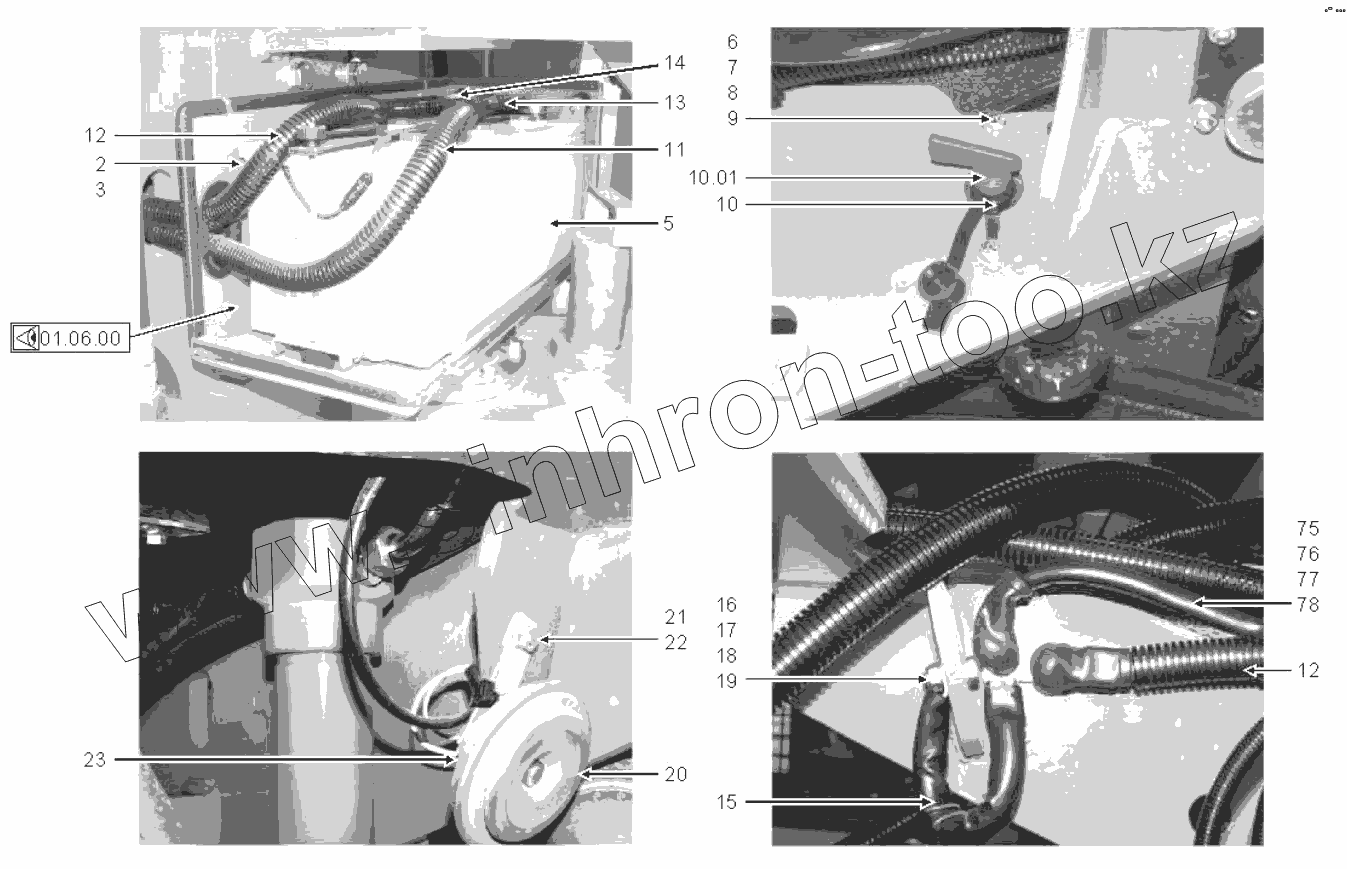

2
3
5
5
6
7
8
9
10
10.01
11
12
12
13
14
15
16
17
18
19
20
21
22
23
75
76
77
78
Позиция на иллюстрации
Заводской номер детали
Название детали
2
2119339
HEXAGON SCREW
3
216593
WASHER
5
207330
BATTERY
5
2071511
BATTERY (GEL) OPTIONAL
6
314080
HEXAGON SCREW
7
350389
WASHER
8
216577
WASHER
9
2257942
HEXAGONAL NUT
10
394319
BATTERY ISOLATING SWITCH
10.01
1203894
KEY
11
892246
BATTERY CABLE
12
866636
BATTERY CABLE
13
1258737
PROTECTING CAP
14
226017
PROTECTING CAP
15
824674
BATTERY CABLE
16
2358663
HEXAGON SCREW
17
2041843
SPRING RING
18
2041837
HEXAGONAL NUT
19
2041843
SPRING RING
20
207365
SIGNAL HORN
21
339180
HEXAGON SCREW
22
216593
WASHER
23
821136
DIODE
75
739529
GROUND CABLE
76
2358661
HEXAGON SCREW
77
2041836
HEXAGONAL NUT
78
2041841
SPRING RING
