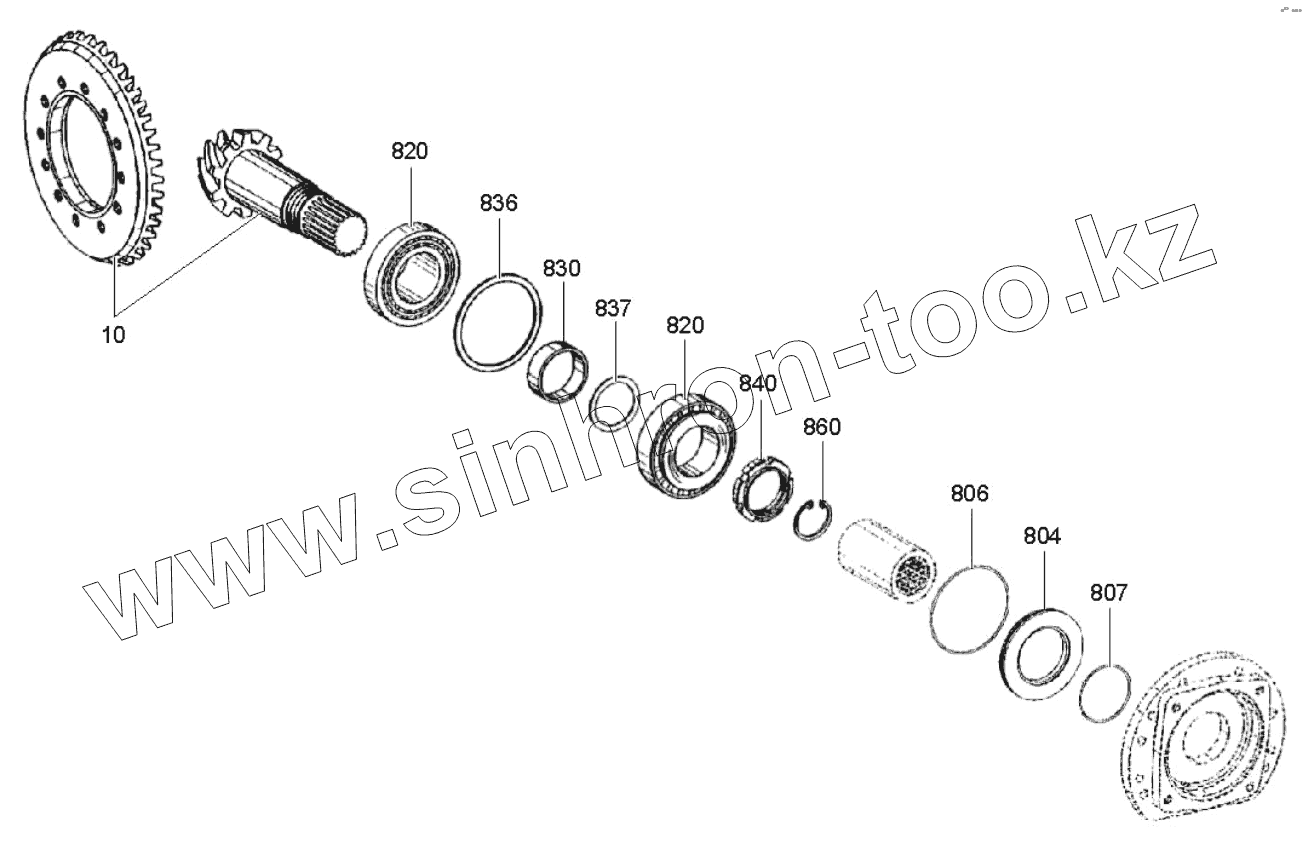

Каталог запасных частей к технике: HAMM 3411. DIFFERENTIAL CASE AND AXLE BODY
10
804
806
807
820
820
830
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
836
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
837
840
860
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 1282921 | SET OF BEVEL WHEELS | |
| 804 | 1277707 | SPACER SHIM | |
| 806 | 1277693 | O-RING SEAL | |
| 807 | 201820 | O-RING SEAL | |
| 820 | 1282948 | TAPER ROLLER BEARING | |
| 830 | 1282956 | BUSHING | |
| 836 | 1281879 | SPACER WASHER | |
| 836 | 1281976 | SPACER WASHER | |
| 836 | 1281887 | SPACER WASHER | |
| 836 | 1281895 | SPACER WASHER | |
| 836 | 1281909 | SPACER WASHER | |
| 836 | 1281925 | SPACER WASHER | |
| 836 | 1281933 | SPACER WASHER | |
| 836 | 1281941 | SPACER WASHER | |
| 836 | 1281968 | SPACER WASHER | |
| 836 | 1281984 | SPACER WASHER | |
| 836 | 1281992 | SPACER WASHER | |
| 836 | 1281852 | SPACER WASHER | |
| 836 | 1281003 | SPACER WASHER | |
| 836 | 1281755 | SPACER WASHER | |
| 836 | 1281763 | SPACER WASHER | |
| 836 | 1281860 | SPACER WASHER | |
| 836 | 1281771 | SPACER WASHER | |
| 836 | 1281798 | SPACER WASHER | |
| 836 | 1281801 | SPACER WASHER | |
| 836 | 1281828 | SPACER WASHER | |
| 836 | 1281836 | SPACER WASHER | |
| 836 | 1281844 | SPACER WASHER | |
| 837 | 1281283 | SPACER WASHER | |
| 837 | 1281291 | SPACER WASHER | |
| 837 | 1281305 | SPACER WASHER | |
| 837 | 1281313 | SPACER WASHER | |
| 837 | 1281321 | SPACER WASHER | |
| 837 | 1281348 | SPACER WASHER | |
| 837 | 1281356 | SPACER WASHER | |
| 837 | 1281364 | SPACER WASHER | |
| 837 | 1281372 | SPACER WASHER | |
| 837 | 1281380 | SPACER WASHER | |
| 837 | 1281275 | SPACER WASHER | |
| 837 | 1281399 | SPACER WASHER | |
| 837 | 1281402 | SPACER WASHER | |
| 837 | 1281410 | SPACER WASHER | |
| 837 | 1281429 | SPACER WASHER | |
| 837 | 1281437 | SPACER WASHER | |
| 837 | 1281445 | SPACER WASHER | |
| 837 | 1281453 | SPACER WASHER | |
| 837 | 1281461 | SPACER WASHER | |
| 837 | 1281488 | SPACER WASHER | |
| 837 | 1281496 | SPACER WASHER | |
| 837 | 1282018 | SPACER WASHER | |
| 837 | 1281127 | SPACER WASHER | |
| 837 | 1281259 | SPACER WASHER | |
| 837 | 1281011 | SPACER WASHER | |
| 837 | 1281038 | SPACER WASHER | |
| 837 | 1281046 | SPACER WASHER | |
| 837 | 1281054 | SPACER WASHER | |
| 837 | 1281062 | SPACER WASHER | |
| 837 | 1281070 | SPACER WASHER | |
| 837 | 1281089 | SPACER WASHER | |
| 837 | 1281097 | SPACER WASHER | |
| 837 | 1281100 | SPACER WASHER | |
| 837 | 1281119 | SPACER WASHER | |
| 837 | 1281135 | SPACER WASHER | |
| 837 | 1281143 | SPACER WASHER | |
| 837 | 1281151 | SPACER WASHER | |
| 837 | 1281178 | SPACER WASHER | |
| 837 | 1281186 | SPACER WASHER | |
| 837 | 1281194 | SPACER WASHER | |
| 837 | 1281208 | SPACER WASHER | |
| 837 | 1281216 | SPACER WASHER | |
| 837 | 1281224 | SPACER WASHER | |
| 837 | 1281232 | SPACER WASHER | |
| 837 | 1281240 | SPACER WASHER | |
| 837 | 1281267 | SPACER WASHER | |
| 840 | 1282549 | GROOVE NUT | |
| 860 | 240915 | CIRCLIP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
