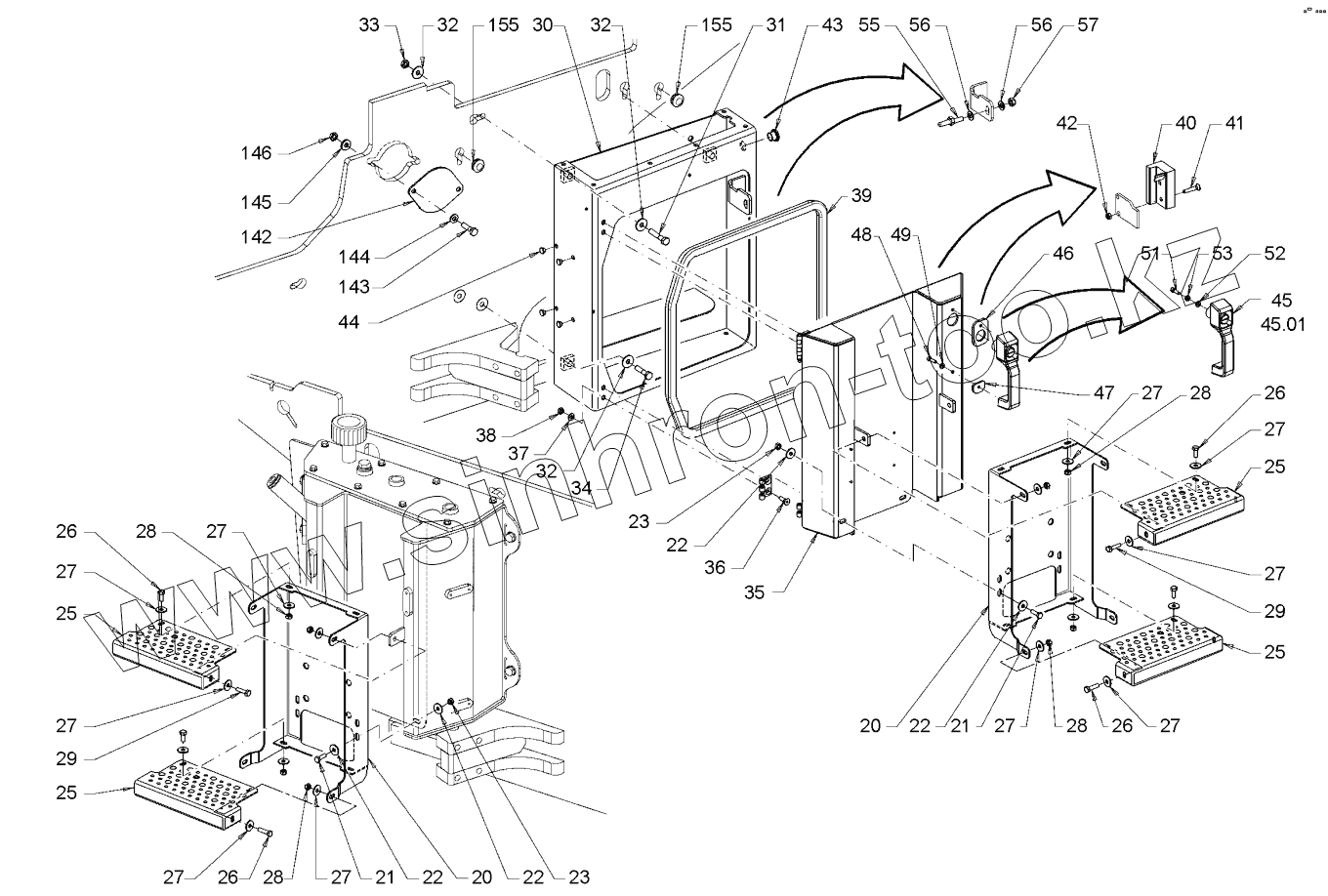

Каталог запасных частей к технике: HAMM 3411. CANOPIES AND COVERS
20
20
21
21
22
22
22
22
23
23
25
25
25
25
26
26
26
26
27
27
27
27
27
27
27
27
27
27
28
28
28
28
29
29
30
31
32
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45.01
46
47
48
49
51
52
53
55
56
56
57
142
143
144
145
146
155
155
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 20 | 1480847 | METAL PLATE | |
| 21 | 213829 | HEXAGON SCREW | |
| 22 | 260983 | WASHER | |
| 23 | 2588139 | SAFETY NUT | |
| 25 | 1480634 | METAL PLATE | |
| 26 | 213829 | HEXAGON SCREW | |
| 27 | 260983 | WASHER | |
| 28 | 2588139 | SAFETY NUT | |
| 29 | 339180 | HEXAGON SCREW | |
| 30 | 1707647 | HOUSING | |
| 31 | 213497 | HEXAGON SCREW | |
| 32 | 293873 | WASHER | |
| 33 | 2534252 | SAFETY NUT | |
| 34 | 213942 | HEXAGON SCREW | |
| 35 | 860239 | LID | |
| 36 | 2605416 | COUNTERSUNK SCREW | |
| 37 | 216593 | WASHER | |
| 38 | 2588139 | SAFETY NUT | |
| 39 | 276766 | SEALING PROFILE | |
| 40 | 2208579 | CABINET BOLT | |
| 41 | 2539661 | COUNTERSUNK SCREW | |
| 42 | 2588139 | SAFETY NUT | |
| 43 | 1245945 | FILLER CAP | |
| 44 | 1202162 | FILLER CAP | |
| 45 | 386243 | LOCK OUTSIDE HANDLE | |
| 45.01 | 367125 | KEY | |
| 46 | 386260 | SUPPORTING PLATE | |
| 47 | 386251 | SUPPORTING PLATE | |
| 48 | 213667 | HEXAGON SCREW | |
| 49 | 216577 | WASHER | |
| 51 | 242535 | CHEESE-HEAD SCREW | |
| 52 | 216577 | WASHER | |
| 53 | 2127017 | HEXAGONAL NUT | |
| 55 | 430374 | CLOSING BOLT | |
| 56 | 2175174 | LOCKING WASHER | |
| 57 | 2127021 | HEXAGONAL NUT | |
| 142 | 1485873 | METAL PLATE | |
| 143 | 2538193 | HEXAGON SCREW | |
| 144 | 216607 | WASHER | |
| 145 | 345490 | WASHER | |
| 146 | 2588141 | SAFETY NUT | |
| 155 | 353434 | FILLER CAP |
