Каталог запасных частей к технике: HAMM 3410. TRAVEL DRIVE
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
12
13
14
15
16
17
18
19
20
21
21
25
26
27
28
30
31
87
88
90
91
93
94
109
110

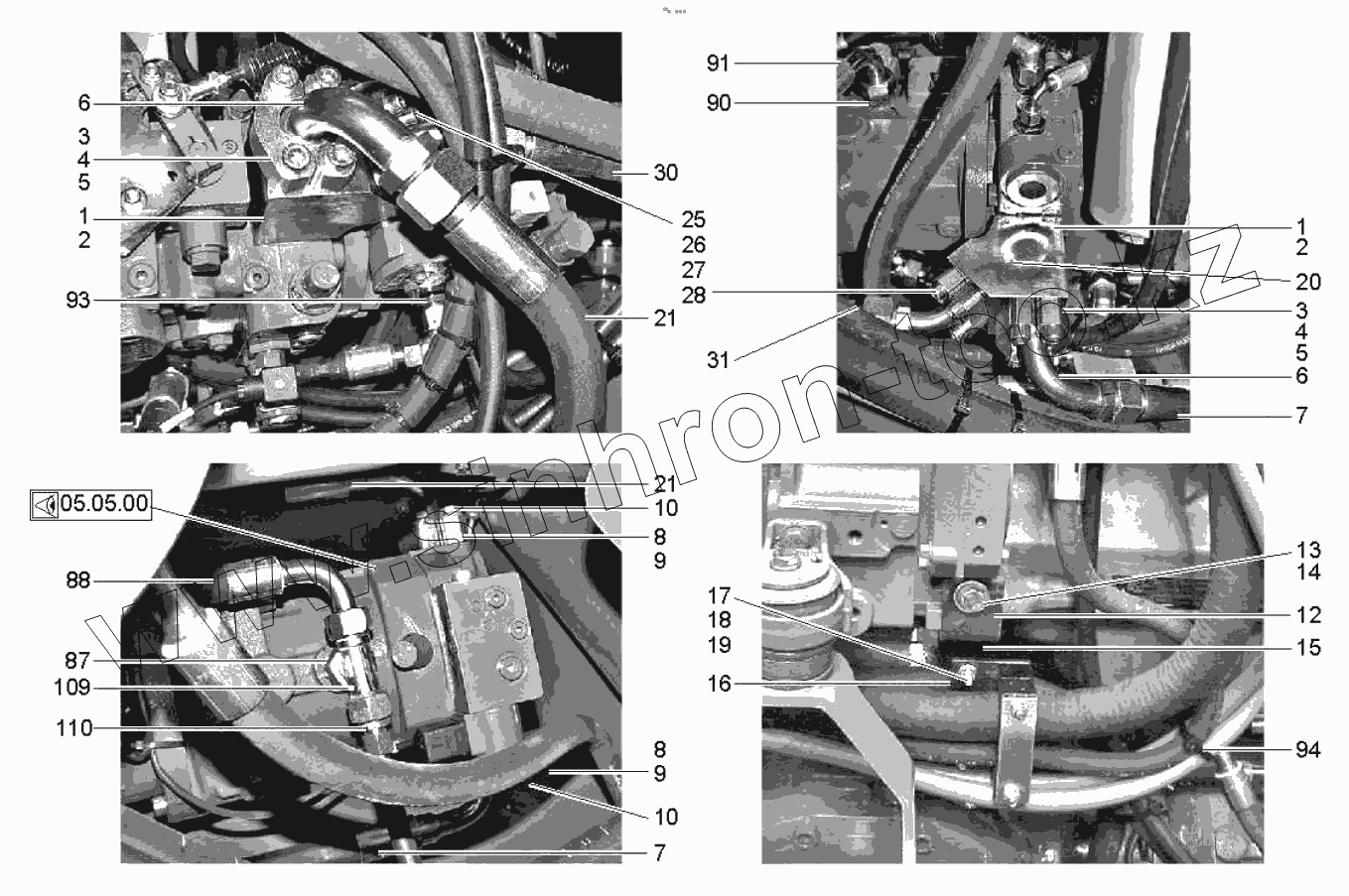

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1486586 | CONNECTING BLOCK | |
| 2 | 228516 | O-RING SEAL | |
| 3 | 287199 | SAE-FLANGE HALF | |
| 4 | 228516 | O-RING SEAL | |
| 5 | 1268856 | CHEESE-HEAD SCREW | |
| 6 | 1291726 | PIPE ELBOW | |
| 7 | 1302094 | HOSE | |
| 8 | 228516 | O-RING SEAL | |
| 9 | 287199 | SAE-FLANGE HALF | |
| 10 | 1260774 | SAFETY SCREW | |
| 12 | 2038679 | METAL PLATE | |
| 13 | 211826 | HEXAGON SCREW | |
| 14 | 293873 | WASHER | |
| 15 | 1486772 | HALF-CLIP | |
| 16 | 2110183 | METAL PLATE | |
| 17 | 359270 | STUD SCREW | |
| 18 | 216593 | WASHER | |
| 19 | 216445 | HEXAGONAL NUT | |
| 20 | 1273078 | LOCKING SCREW | |
| 21 | 1302108 | HOSE | |
| 25 | 389269 | INTERMEDIATE PIECE | |
| 26 | 267465 | O-RING SEAL | |
| 27 | 267457 | SAE-FLANGE HALF | |
| 28 | 214639 | CHEESE-HEAD SCREW | |
| 30 | 1259806 | HOSE | |
| 31 | 1302132 | HOSE | |
| 87 | 206369 | STRAIGHT SCREWED SOCKET | |
| 88 | 1242466 | HOSE | |
| 90 | 315702 | STRAIGHT SCREWED SOCKET | |
| 91 | 387738 | HOSE | |
| 93 | 327832 | STRAIGHT SCREWED SOCKET | |
| 94 | 267341 | WIRE FASTENER | |
| 109 | 317810 | T-PIECE ADJUSTABLE | |
| 110 | 317624 | REDUCING CONNECTOR |
