Каталог запасных частей к технике: HAMM 3410. ELECTRICAL SYSTEM
10
10
13
14
15
16
17
18
19
20
21
22
30
31
33
34
40
40
50
51
52
53
60
61
70
71
72
80
89
90
91
92
93
94
95
96
96
97
97
98
98
110
111
112
114
200
200
201
202
203
204
205
206
207
208
240

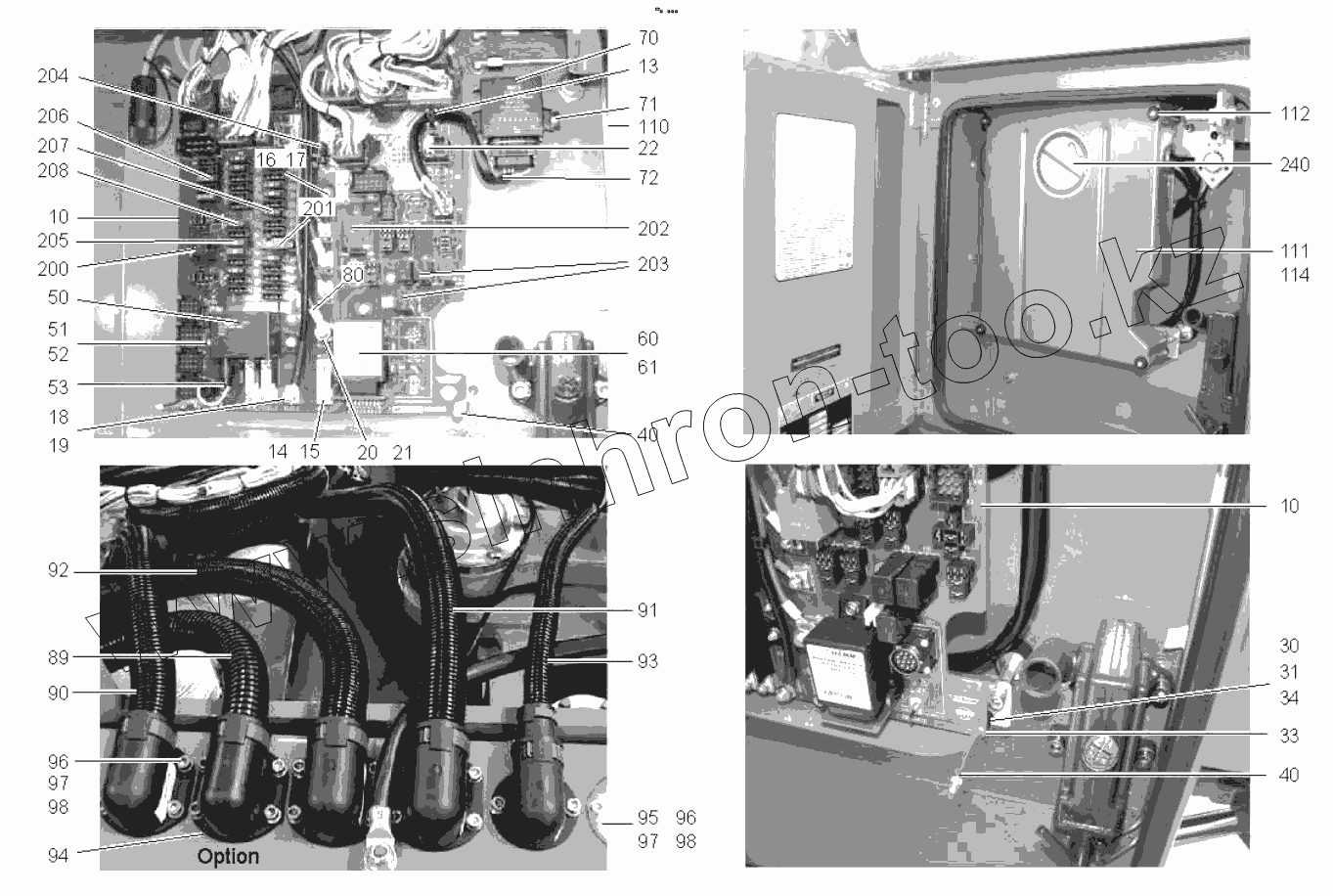

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 2042055 | CENTRAL ELECTRICAL SYSTEM | |
| 13 | 380687 | WIRE FASTENER | |
| 14 | 2041840 | SERRATED LOCK WASHER | |
| 15 | 2041835 | HEXAGONAL NUT | |
| 16 | 2041838 | SERRATED LOCK WASHER | |
| 17 | 2041834 | HEXAGONAL NUT | |
| 18 | 2041841 | SPRING RING | |
| 19 | 2041836 | HEXAGONAL NUT | |
| 20 | 2041843 | SPRING RING | |
| 21 | 2041837 | HEXAGONAL NUT | |
| 22 | 2041830 | ELECTRIC PLUG | |
| 30 | 1300334 | RUBBER METAL BUFFER | |
| 31 | 387223 | SAFETY SCREW | |
| 33 | 354589 | SERRATED LOCK WASHER | |
| 34 | 216054 | HEXAGONAL NUT | |
| 40 | 2042057 | BOLT | |
| 50 | 1289829 | RELAY | |
| 51 | 2041838 | SERRATED LOCK WASHER | |
| 52 | 2041834 | HEXAGONAL NUT | |
| 53 | 898880 | HARNESS | |
| 60 | 1706217 | RELAY | |
| 61 | 387223 | SAFETY SCREW | |
| 70 | 1284037 | CONTROL DEVICE | |
| 71 | 387223 | SAFETY SCREW | |
| 72 | 898260 | HARNESS | |
| 80 | 898278 | GROUND CABLE | |
| 89 | 898163 | WIRING HARNESS (OPTIONS, CLIMATE) | |
| 90 | 898759 | WIRING HARNESS (MOTOR) | |
| 91 | 2024461 | HARNESS | |
| 92 | 2082141 | WIRING HARNESS (DASHBOARD) | |
| 93 | 898066 | WIRE HARNESS FRONT FRAME | |
| 94 | 1485253 | LID | |
| 95 | 1537121 | METAL PLATE | |
| 96 | 214418 | CHEESE-HEAD SCREW | |
| 97 | 216577 | WASHER | |
| 98 | 216437 | HEXAGONAL NUT | |
| 110 | 396052 | FILLER CAP | |
| 111 | 2029079 | COVER | |
| 112 | 2042056 | KNURLED NUT | |
| 114 | 2138557 | PROTECTIVE COVERING OF CABLES | |
| 200 | 1263986 | RELAY | |
| 201 | 2043699 | FLACHSICHERUNG | |
| 202 | 1283391 | RELAY | |
| 203 | 1263986 | RELAY | |
| 204 | 2027966 | FLACHSICHERUNG | |
| 205 | 384070 | BLADE-TYPE FUSE 25A | |
| 206 | 386197 | BLADE-TYPE FUSE | |
| 207 | 384046 | BLADE-TYPE FUSE | |
| 208 | 384054 | BLADE-TYPE FUSE 10A | |
| 240 | 1524631 | LABEL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
