  5. DRIVER'S SEAT WITH ADJUSTMENT

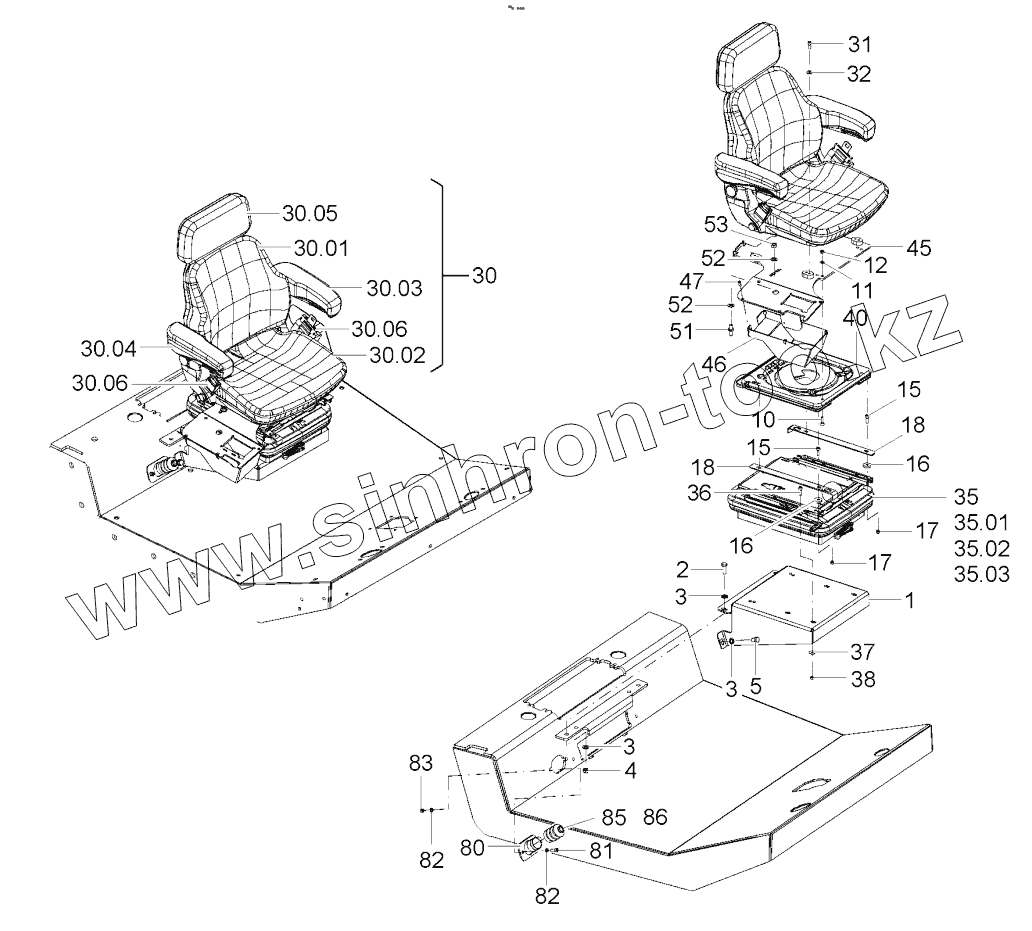

Каталог запасных частей к технике: HAMM 3410. DRIVER'S SEAT WITH ADJUSTMENT

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
3
4
5
10
11
12
15
15
16
16
17
17
18
18
30
30
30.01
30.01
30.02
30.02
30.03
30.04
30.05
30.05
30.06
30.06
31
32
35
35.01
35.02
35.03
36
37
38
40
45
46
47
47
51
52
52
53
80
81
82
82
83
85
86
Позиция на иллюстрации Заводской номер детали Название детали
1 1535404 METAL PLATE
2 213942 HEXAGON SCREW
3 381543 WASHER
4 2136712 SAFETY NUT
5 225541 HEXAGON SCREW
10 214469 CHEESE-HEAD SCREW
11 216593 WASHER
12 1209302 SAFETY NUT
15 214582 CHEESE-HEAD SCREW
16 422584 WASHER
17 1209302 SAFETY NUT
18 1485261 HOLDER
30 2023936 SEAT UPPER PART, CLOTH COMPL.
30 2023904 SEAT UPPER PART, IMIT. LEATHER COMPL.
30.01 2034589 BACKREST CUSHION, CLOTH
30.01 2026351 BACKREST CUSHION, IMI. LEATHER
30.02 2034592 SEAT CUSHION, CLOTH
30.02 2026352 SEAT CUSHION, IMITAT. LEATHER
30.03 2027077 ELBOW-REST LEFT
30.04 2026077 ELBOW-REST RIGHT
30.05 2034586 HEADREST, CLOTH
30.05 2026347 HEADREST, IMITATION LEATHER
30.06 2034165 SAFETY BELT
31 214426 CHEESE-HEAD SCREW
32 231355 WASHER
35 2023884 SEAT BOTTOM PART
35.01 2142119 ADJUSTING LEVER
35.02 2162845 GAS SPRING
35.03 2250291 SPRING
36 214469 CHEESE-HEAD SCREW
37 260983 WASHER
38 1209302 SAFETY NUT
40 2024649 DISC ADAPTER
45 2024504 SEAT CONSOLE
46 2024521 COVER
47 245690 COUNTERSUNK SCREW
51 1485393 THREADED BOLT
52 216615 WASHER
53 249610 HEXAGONAL NUT
80 866377 HOLDER
81 339180 HEXAGON SCREW
82 216593 WASHER
83 1209302 SAFETY NUT
85 2024597 BELLOWS
86 267341 WIRE FASTENER
