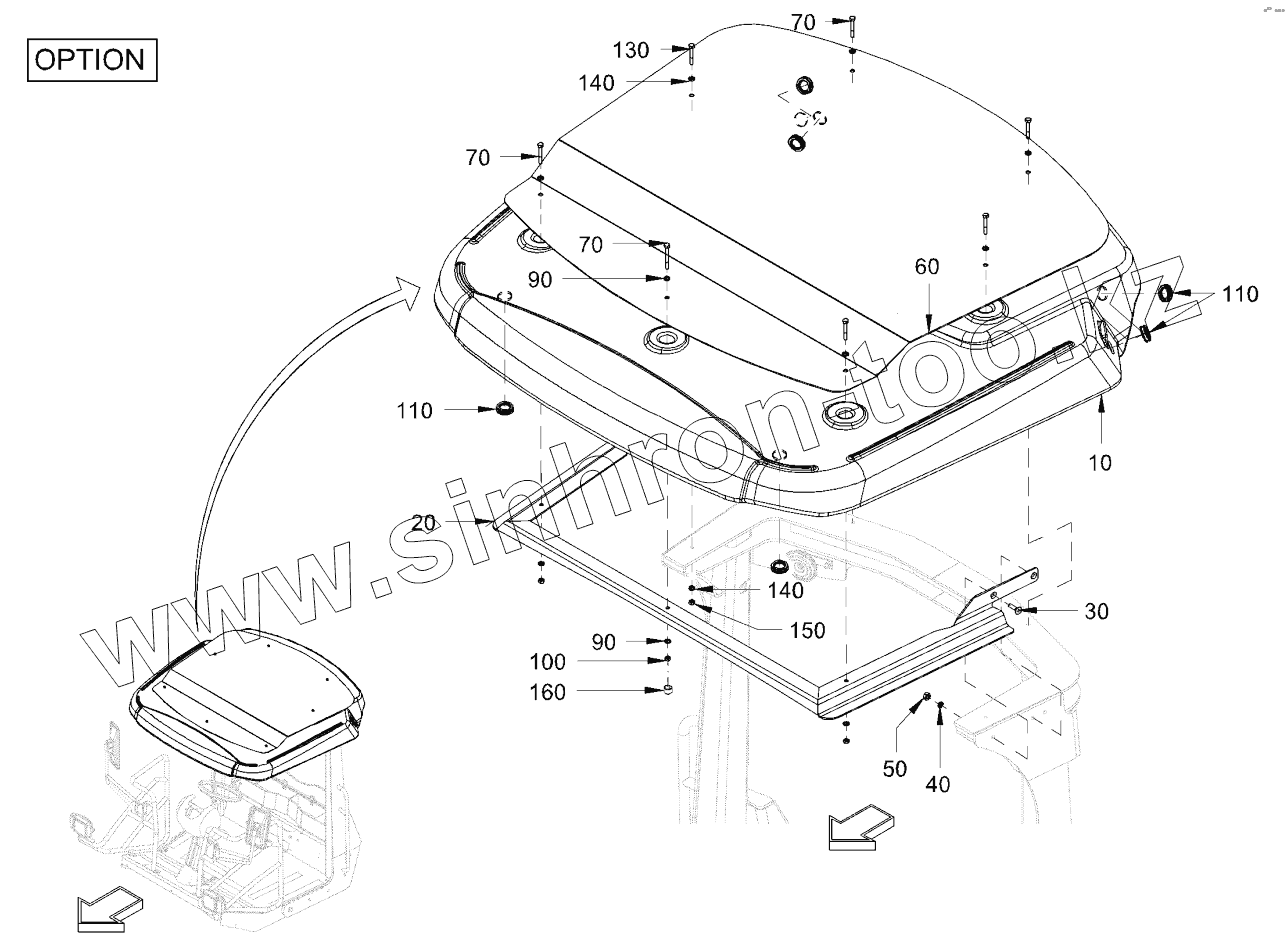

Каталог запасных частей к технике: HAMM 3410. PROTECTIVE ROOF
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
3410 (2015)
3410 (2021)
3411 (2015)
3411 (2021)
3516 (2008)
3518 (2008)
3520 (2008)
GRW 10
GRW 10 (2009)
GRW 15
GRW 15 (2009)
GRW 18
GRW 18 (2009)
GRW 21
GRW 21 (2009)
GRW 24
GRW 24 (2009)
HD110 (2021)
HD90 (2021)
Схема
>
Не выбрано
MAIN FRAME AND ASSEMBLIES
CANOPIES AND COVERS
CANOPIES AND COVERS
CANOPIES AND COVERS
BATTERY BOX
TOOL BOX
STICKER ARRANGEMENT
STICKER ARRANGEMENT
STICKER ARRANGEMENT
STICKER ARRANGEMENT
STICKER ARRANGEMENT
SOUND-INSULATION
OPERATOR PLATFORM
OPERATOR'S SEAT WITH ADJUSTMENT
ROLL OVER PROTECTION
ROLL OVER PROTECTION
FOPS
HANDLES
INSTRUMENT PANEL CASE
INSTRUMENT PANEL COVERING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
CABIN-HEATING STANDARD
CABIN-HEATING STANDARD
CABIN-HEATING ENHANCED
CABIN-HEATING ENHANCED
CABIN-HEATING ENHANCED
PUMP DRIVE AND ENGINE ASSEMBLY
PUMP DRIVE AND ENGINE ASSEMBLY
PUMP DRIVE AND ENGINE ASSEMBLY
FUEL SYSTEM
FUEL SYSTEM
FUEL SYSTEM
FUEL SYSTEM
FUEL SYSTEM
FUEL FILTER
FUEL FILTER
ENGINE CONTROL
ENGINE CONTROL
AIR FILTER SYSTEM STANDARD
AIR FILTER WITH PRE-CLEANER
EXHAUST SYSTEM
EXHAUST SYSTEM
COOLING (ENGINE/HYDRAULIC OIL)
COOLING (ENGINE/HYDRAULIC OIL)
COOLING (ENGINE/HYDRAULIC OIL)
COOLING (ENGINE/HYDRAULIC OIL)
TILTING HYDRAULIC (ENGINE COWLING)
TILTING HYDRAULIC (ENGINE COWLING)
DRIVING GEAR (VARIABLE DISPLACEMENT PUMP - DRIVE)
DRIVING GEAR (VARIABLE DISPLACEMENT PUMP - VIBRATION DRIVE)
VARIABLE DISPLACEMENT MOTOR (AXLE DRIVE)
CONSTANT MOTOR (VIBRATION DRIVE)
WHEEL GEAR (DRUM DRIVE)
WHEEL GEAR DRUM DRIVE
VARIABLE DISPLACEMENT MOTOR (DRUM DRIVE)
VARIABLE DISPLACEMENT MOTOR
GEAR HUB MOTOR
VALVE BLOCK (GEAR SHIFTING)
VALVE BLOCK (PARKING BRAKE)
FILTER (HYDRAULIC OIL)
FILTER (HYDRAULIC OIL)
FILTER (HYDRAULIC STEERING SYSTEM)
FILTER (HYDRAULIC STEERING SYSTEM)
PUMP (HYDRAULIC STEERING SYSTEM)
PUMP (BLADE)
COLLECTING BLOCK (HYDRAULIC OIL)
OIL TANK
OIL FILTER SYSTEM
OIL FILTER SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM (LIGHTING)
ELECTRICAL SYSTEM (LIGHTING)
ELECTRICAL SYSTEM (RADIO)
PLANETARY AXLE AND SUSPENSION
DIFFERENTIAL CASE AND AXLE BODY
DIFFERENTIAL CASE AND AXLE BODY
DIFFERENTIAL WITH DIFFERENTIAL LOCK
PARKING BRAKE
PLANETARY GEAR
PLANETARY AXLE AND SUSPENSION
DIFFERENTIAL CASE AND AXLE BODY
DIFFERENTIAL CASE AND AXLE BODY
DIFFERENTIAL WITH DIFFERENTIAL LOCK
PARKING BRAKE
PLANETARY GEAR
TIRE EQUIPMENT
TIRE EQUIPMENT
TIRE EQUIPMENT
ADVANCE DRIVE
ADVANCE DRIVE
ADVANCE DRIVE
ADVANCE DRIVE
ADVANCE DRIVE
DRIVE SHIFTING
PARKING BRAKE
PARKING BRAKE
CENTRE PIVOT ASSEMBLY
CENTRE PIVOT ASSEMBLY
STEERING
STEERING
STEERING
STEERING
BLADE
HYDRAULIC SYSTEM (BLADE)
HYDRAULIC SYSTEM (BLADE)
ELECTRICAL SYSTEM (BLADE)
SUN ROOF
SUN ROOF
SUN ROOF
PROTECTIVE ROOF
PROTECTIVE ROOF
SAFETY BUMPER
LAMP PROTECTION
GRID (TUV FRANCE)
PADFOOT SEGMENTS
BYPASS OIL FILTER
ADDITIONAL LIGHTING, ROPS
ADDITIONAL LIGHTING, FOPS
ADDITIONAL LIGHTING LED
ADDITIONAL LIGHTING
ADDITIONAL LIGHTING
VIBRO AUTOMATIC
HEATING AND AIR CONDITIONING STANDARD
HEATING AND AIR CONDITIONING STANDARD
HEATING AND AIR CONDITIONING STANDARD
HEATING AND AIR CONDITIONING STANDARD
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
SEAT CONTACT SWITCH (TUV FRANCE)
ROTARY BEACON (DRIVER'S CABIN)
ROTARY BEACON (ROPS)
ROTARY BEACON
WARNING LIGHT (SUN ROOF)
ROTARY BEACON
FREQUENCY METER (VIBRATION)
BACK-UP ALARM (BACK-UP)
SPEEDOMETER
COMPACTOMETER HCQ
COMPACTION DOCUMENTATION
COMPACTION DOCUMENTATION
TACHOGRAPH
TACHOGRAPH
FIRE EXTINGUISHER
HOSE PROTECTION (FRONT FRAME)
TUV ITALY
TUV ITALY
HOMOLOGATION RUSSIA
SUSPENSION (ROLLER DRUM)
SUSPENSION (ROLLER DRUM)
MOUNTING
MOUNTING
SCRAPER (SMOOTH ROLLER DRUM)
SCRAPER (SMOOTH ROLLER DRUM)
SCRAPER (PADFOOT DRUM)
SCRAPER (SPRING STEEL)
SCRAPER (L-STEEL, SMOOTH ROLLER DRUM)
SMOOTH ROLLER DRUM WITH VIBRATOR (WITH DRUM DRIVE)
DRUM WITH VIBRATOR (WITH DRUM DRIVE)
SMOOTH ROLLER DRUM WITH VIBRATOR (WITH DRUM DRIVE)
VIBRATION DRIVE
VIBRATION DRIVE
ADDITIONAL STORAGE
CAMERA SYSTEM
HCQ PREPARATION, KAB
HCQ PREPARATION, KAB
HCQ PREPARATION, ROPS
HCQ PREPARATION, ROPS
HCQ-PREPARATION
HCQ PREPARATION
HCQ PREPARATION
HCQ-PREPARATION
WIFMS INTERFACE
WIFMS INTERFACE
WITOS
WITOS
PARK HEATING
PARK HEATING
HOMOLOGATION AUSTRALIA
HOMOLOGATION BRAZIL
MAINTENANCE KITS AND REPAIR KITS
10
20
30
40
50
60
70
70
70
90
90
100
110
110
130
140
140
150
160
Позиция на иллюстрации
Заводской номер детали
Название детали
10
2268822
ROOF
20
2291326
FRAME BRACKET
30
2539668
COUNTERSUNK SCREW
40
2175174
LOCKING WASHER
50
2127021
HEXAGONAL NUT
60
2338608
PROTECTIVE ROOF
70
2152764
HEXAGON SCREW
90
2175172
LOCKING WASHER
100
2127020
HEXAGONAL NUT
110
2027111
CABLE SUPPORT SLEEVE
130
212679
HEXAGON SCREW
140
2175175
LOCKING WASHER
150
2127024
HEXAGONAL NUT
160
380512
PROTECTIVE CAP
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
