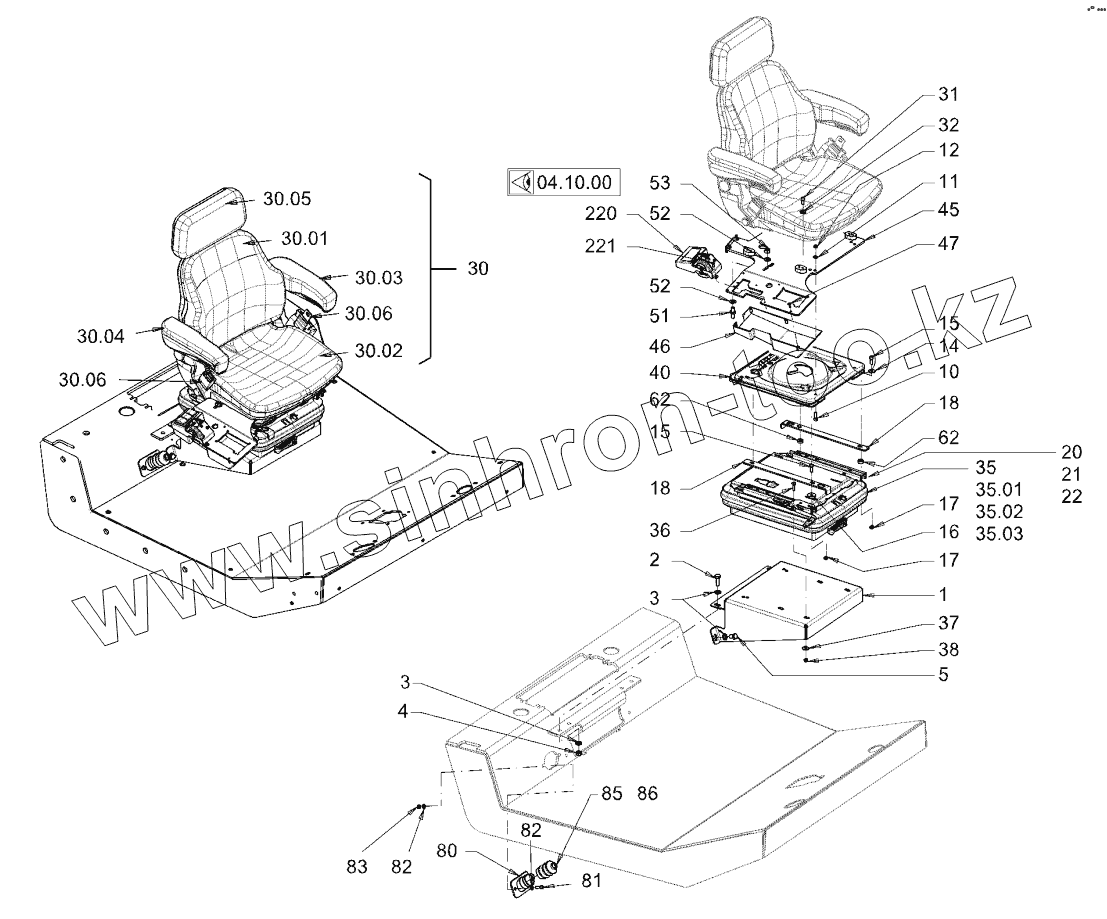

Каталог запасных частей к технике: HAMM 3410. OPERATOR'S SEAT WITH ADJUSTMENT
1
2
3
3
4
5
10
11
12
14
15
15
16
17
17
18
18
20
21
22
30
30
30.01
30.01
30.02
30.02
30.03
30.04
30.05
30.05
30.06
30.06
31
32
35
35.01
35.02
35.03
36
37
38
40
45
46
47
51
51
52
52
52
52
53
53
62
62
80
81
82
82
83
85
86
220
220
221
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1535404 | METAL PLATE | |
| 2 | 213942 | HEXAGON SCREW | |
| 3 | 381543 | WASHER | |
| 4 | 2534252 | SAFETY NUT | |
| 5 | 2538273 | HEXAGON SCREW | |
| 10 | 214426 | CHEESE-HEAD SCREW | |
| 11 | 216593 | WASHER | |
| 12 | 2127020 | HEXAGONAL NUT | |
| 14 | 216593 | WASHER | |
| 15 | 214469 | CHEESE-HEAD SCREW | |
| 16 | 422584 | WASHER | |
| 17 | 2588139 | SAFETY NUT | |
| 18 | 1485261 | HOLDER | |
| 20 | 214469 | CHEESE-HEAD SCREW | |
| 21 | 216593 | WASHER | |
| 22 | 2588139 | SAFETY NUT | |
| 30 | 2023904 | SEAT UPPER PART, IMIT. LEATHER COMPL. | |
| 30 | 2023936 | SEAT UPPER PART, CLOTH COMPL. | |
| 30.01 | 2034589 | BACKREST CUSHION, CLOTH | |
| 30.01 | 2026351 | BACKREST CUSHION, IMI. LEATHER | |
| 30.02 | 2034592 | SEAT CUSHION, CLOTH | |
| 30.02 | 2026352 | SEAT CUSHION, IMITAT. LEATHER | |
| 30.03 | 2027077 | ELBOW-REST LEFT | |
| 30.04 | 2026077 | ELBOW-REST RIGHT | |
| 30.05 | 2026347 | HEADREST, IMITATION LEATHER | |
| 30.05 | 2034586 | HEADREST, CLOTH | |
| 30.06 | 2034165 | SAFETY BELT | |
| 31 | 214426 | CHEESE-HEAD SCREW | |
| 32 | 231355 | WASHER | |
| 35 | 2023884 | SEAT BOTTOM PART | |
| 35.01 | 2142119 | ADJUSTING LEVER | |
| 35.02 | 2162845 | GAS SPRING | |
| 35.03 | 2250291 | SPRING | |
| 36 | 214469 | CHEESE-HEAD SCREW | |
| 37 | 260983 | WASHER | |
| 38 | 2588139 | SAFETY NUT | |
| 40 | 2024649 | DISC ADAPTER | |
| 45 | 2060732 | SEAT PEDESTAL | |
| 46 | 2067503 | COVER | |
| 47 | 1263293 | FILLISTER HEAD SCREW | |
| 51 | 430374 | CLOSING BOLT | |
| 51 | 1485393 | THREADED BOLT | |
| 52 | 381543 | WASHER | |
| 52 | 216607 | WASHER | |
| 53 | 2588141 | SAFETY NUT | |
| 53 | 249610 | HEXAGONAL NUT | |
| 62 | 422584 | WASHER | |
| 80 | 866377 | HOLDER | |
| 81 | 339180 | HEXAGON SCREW | |
| 82 | 216593 | WASHER | |
| 83 | 2588139 | SAFETY NUT | |
| 85 | 2024597 | BELLOWS | |
| 86 | 267341 | WIRE FASTENER | |
| 220 | 2085976 | ENGINE CONTROL | |
| 220 | 2084601 | ENGINE CONTROL | |
| 221 | 2032600 | FILLISTER HEAD SCREW |
