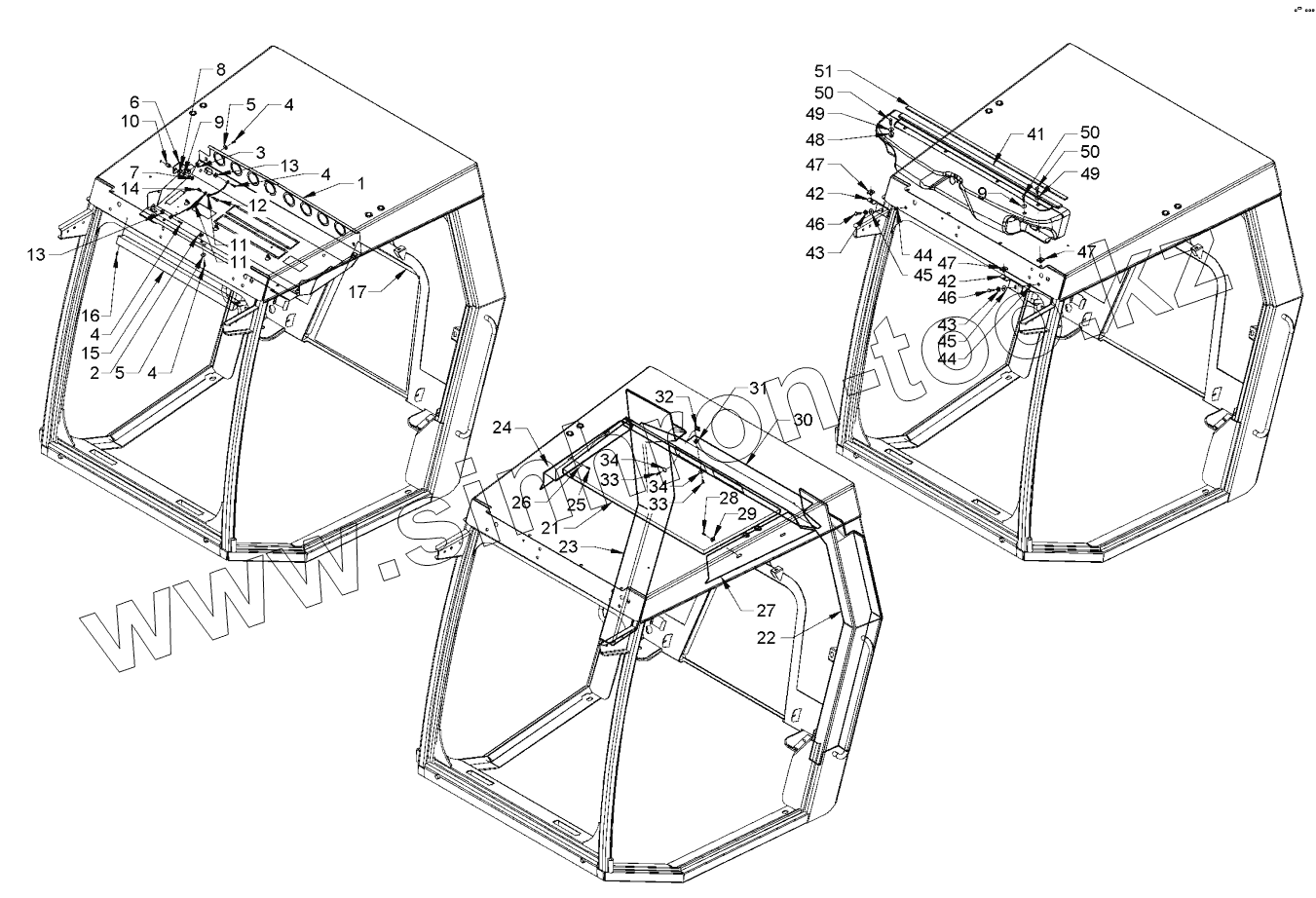

Каталог запасных частей к технике: HAMM 3410. OPERATOR'S CABIN
1
2
3
4
4
4
4
5
5
6
7
8
9
10
11
11
12
13
13
14
15
16
17
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
34
41
42
42
43
43
44
44
45
45
46
46
47
47
47
48
49
49
50
50
50
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2186976 | COVERING PART | |
| 2 | 1301810 | CLIP NUT 4,8X19,5 | |
| 3 | 2186982 | CLIP NUT | |
| 4 | 398721 | SHEET METAL SCREW | |
| 5 | 1241567 | WASHER | |
| 6 | 2186987 | RETAINING SHEET | |
| 7 | 2186990 | SCREW | |
| 8 | 216593 | WASHER | |
| 9 | 2186993 | WASHER | |
| 10 | 2186994 | RIVET | |
| 11 | 2186996 | TIE ROD | |
| 12 | 2186997 | SCREW | |
| 13 | 1301829 | CLIP NUT 4,2X24 | |
| 14 | 2187000 | RIVET | |
| 15 | 2035419 | SUN SCREEN | |
| 16 | 2187002 | SCREW | |
| 17 | 2187006 | INSULATION PLATE | |
| 21 | 2186968 | COVERING PART | |
| 22 | 1272373 | COVERING PART | |
| 23 | 1272365 | COVERING PART | |
| 24 | 2186969 | COVERING PART | |
| 25 | 398721 | SHEET METAL SCREW | |
| 26 | 1241567 | WASHER | |
| 27 | 2186972 | COVERING PART | |
| 28 | 398721 | SHEET METAL SCREW | |
| 29 | 1241567 | WASHER | |
| 30 | 2186975 | COVERING PART | |
| 31 | 1301810 | CLIP NUT 4,8X19,5 | |
| 32 | 1301829 | CLIP NUT 4,2X24 | |
| 33 | 398721 | SHEET METAL SCREW | |
| 34 | 1241567 | WASHER | |
| 41 | 2145547 | COVERING PART | |
| 42 | 2187175 | METAL PLATE | |
| 43 | 2187177 | BUSHING | |
| 44 | 2187178 | RIVET | |
| 45 | 2187179 | WASHER | |
| 46 | 213748 | HEXAGON SCREW | |
| 47 | 1241583 | CLIP NUT | |
| 48 | 1249177 | CABLE SUPPORT SLEEVE | |
| 49 | 2187180 | BUSHING | |
| 50 | 2187182 | SCREW | |
| 51 | 2187183 | SEALING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
