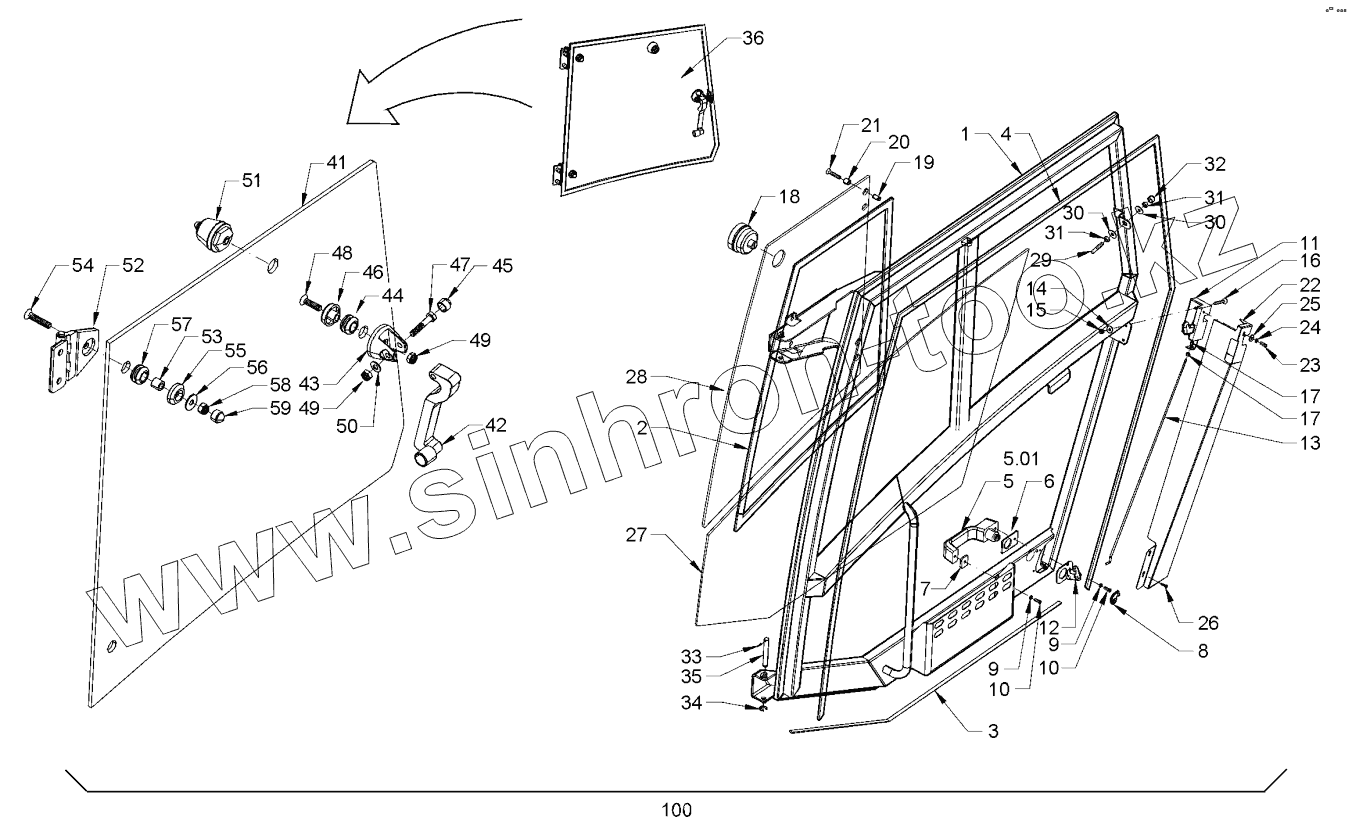

Каталог запасных частей к технике: HAMM 3410. OPERATOR'S CABIN
1
2
3
4
5
5.01
6
7
8
9
9
10
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
31
32
33
34
35
36
41
42
43
44
45
46
47
48
49
49
50
51
52
53
54
55
56
57
58
59
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2073688 | DOOR FRAME | |
| 2 | 2187479 | SEALING | |
| 3 | 2187480 | SEALING | |
| 4 | 2187482 | SEALING | |
| 5 | 1272004 | LOCK OUTSIDE HANDLE | |
| 5.01 | 367125 | KEY | |
| 6 | 1272012 | SUPPORTING PLATE | |
| 7 | 1272020 | SUPPORTING PLATE | |
| 8 | 1272055 | PUSHBUTTON | |
| 9 | 1291335 | WASHER | |
| 10 | 229911 | FILLISTER HEAD SCREW | |
| 11 | 1240544 | CABINET BOLT | |
| 12 | 1272047 | DEVIATION | |
| 13 | 1272888 | LINKAGE | |
| 14 | 216577 | WASHER | |
| 15 | 216062 | HEXAGONAL NUT | |
| 16 | 1291467 | RAISED COUNTERSUNK HEAD SCREW | |
| 17 | 1272063 | HEXAGONAL NUT | |
| 18 | 1272071 | FIXATION | |
| 19 | 1272705 | RIVET | |
| 20 | 1289373 | DISTANCE PIECE | |
| 21 | 215422 | COUNTERSUNK SCREW | |
| 22 | 1272918 | COVERING PART | |
| 23 | 229911 | FILLISTER HEAD SCREW | |
| 24 | 1291335 | WASHER | |
| 25 | 216577 | WASHER | |
| 26 | 398721 | SHEET METAL SCREW | |
| 27 | 1272519 | GLASS PANE | |
| 28 | 1272527 | GLASS PANE | |
| 29 | 2030703 | THREADED PIN | |
| 30 | 216593 | WASHER | |
| 31 | 216070 | HEXAGONAL NUT | |
| 32 | 1241079 | PROTECTIVE CAP | |
| 33 | 1248650 | PIN | |
| 34 | 2073696 | WASHER | |
| 35 | 2073693 | BOLT | |
| 36 | 2195382 | GLASS PANE COMPL. | |
| 41 | 1291572 | GLASS PANE | |
| 42 | 1291580 | HANDLE | |
| 43 | 1291483 | FIXATION | |
| 44 | 1241036 | CABLE SUPPORT SLEEVE | |
| 45 | 1241079 | PROTECTIVE CAP | |
| 46 | 1290568 | SUPPORTING PLATE | |
| 47 | 211850 | HEXAGON SCREW | |
| 48 | 215406 | COUNTERSUNK SCREW | |
| 49 | 216445 | HEXAGONAL NUT | |
| 50 | 216593 | WASHER | |
| 51 | 1272098 | FIXATION | |
| 52 | 1272101 | HINGE | |
| 53 | 1289373 | DISTANCE PIECE | |
| 54 | 215422 | COUNTERSUNK SCREW | |
| 55 | 1291475 | WASHER | |
| 56 | 216593 | WASHER | |
| 57 | 1241036 | CABLE SUPPORT SLEEVE | |
| 58 | 216445 | HEXAGONAL NUT | |
| 59 | 1241079 | PROTECTIVE CAP | |
| 100 | 2073686 | CABIN DOOR, RIGHT COMPL. |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
