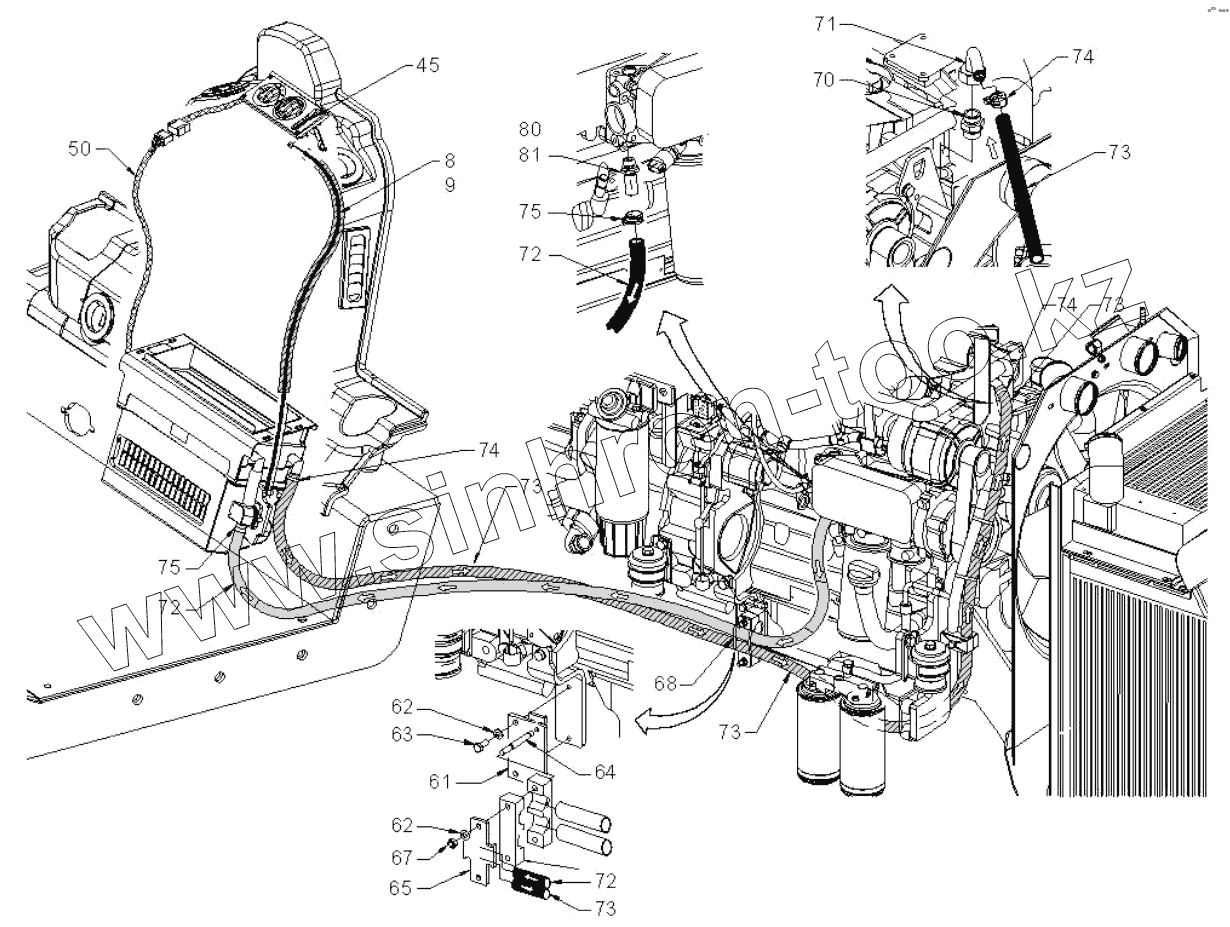

Каталог запасных частей к технике: HAMM 3410. HEATING AND AIR CONDITIONING TROPICAL VERSION
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
3410 (2015)
3410 (2021)
3411 (2015)
3411 (2021)
3516 (2008)
3518 (2008)
3520 (2008)
GRW 10
GRW 10 (2009)
GRW 15
GRW 15 (2009)
GRW 18
GRW 18 (2009)
GRW 21
GRW 21 (2009)
GRW 24
GRW 24 (2009)
HD110 (2021)
HD90 (2021)
Схема
>
Не выбрано
MAIN FRAME AND ASSEMBLIES
CANOPIES AND COVERS
CANOPIES AND COVERS
CANOPIES AND COVERS
BATTERY BOX
TOOL BOX
STICKER ARRANGEMENT
STICKER ARRANGEMENT
STICKER ARRANGEMENT
STICKER ARRANGEMENT
STICKER ARRANGEMENT
SOUND-INSULATION
OPERATOR PLATFORM
OPERATOR'S SEAT WITH ADJUSTMENT
ROLL OVER PROTECTION
ROLL OVER PROTECTION
FOPS
HANDLES
INSTRUMENT PANEL CASE
INSTRUMENT PANEL COVERING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITHOUT AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN VERSION WITH AIR CONDITIONING
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
OPERATOR'S CABIN
CABIN-HEATING STANDARD
CABIN-HEATING STANDARD
CABIN-HEATING ENHANCED
CABIN-HEATING ENHANCED
CABIN-HEATING ENHANCED
PUMP DRIVE AND ENGINE ASSEMBLY
PUMP DRIVE AND ENGINE ASSEMBLY
PUMP DRIVE AND ENGINE ASSEMBLY
FUEL SYSTEM
FUEL SYSTEM
FUEL SYSTEM
FUEL SYSTEM
FUEL SYSTEM
FUEL FILTER
FUEL FILTER
ENGINE CONTROL
ENGINE CONTROL
AIR FILTER SYSTEM STANDARD
AIR FILTER WITH PRE-CLEANER
EXHAUST SYSTEM
EXHAUST SYSTEM
COOLING (ENGINE/HYDRAULIC OIL)
COOLING (ENGINE/HYDRAULIC OIL)
COOLING (ENGINE/HYDRAULIC OIL)
COOLING (ENGINE/HYDRAULIC OIL)
TILTING HYDRAULIC (ENGINE COWLING)
TILTING HYDRAULIC (ENGINE COWLING)
DRIVING GEAR (VARIABLE DISPLACEMENT PUMP - DRIVE)
DRIVING GEAR (VARIABLE DISPLACEMENT PUMP - VIBRATION DRIVE)
VARIABLE DISPLACEMENT MOTOR (AXLE DRIVE)
CONSTANT MOTOR (VIBRATION DRIVE)
WHEEL GEAR (DRUM DRIVE)
WHEEL GEAR DRUM DRIVE
VARIABLE DISPLACEMENT MOTOR (DRUM DRIVE)
VARIABLE DISPLACEMENT MOTOR
GEAR HUB MOTOR
VALVE BLOCK (GEAR SHIFTING)
VALVE BLOCK (PARKING BRAKE)
FILTER (HYDRAULIC OIL)
FILTER (HYDRAULIC OIL)
FILTER (HYDRAULIC STEERING SYSTEM)
FILTER (HYDRAULIC STEERING SYSTEM)
PUMP (HYDRAULIC STEERING SYSTEM)
PUMP (BLADE)
COLLECTING BLOCK (HYDRAULIC OIL)
OIL TANK
OIL FILTER SYSTEM
OIL FILTER SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM (LIGHTING)
ELECTRICAL SYSTEM (LIGHTING)
ELECTRICAL SYSTEM (RADIO)
PLANETARY AXLE AND SUSPENSION
DIFFERENTIAL CASE AND AXLE BODY
DIFFERENTIAL CASE AND AXLE BODY
DIFFERENTIAL WITH DIFFERENTIAL LOCK
PARKING BRAKE
PLANETARY GEAR
PLANETARY AXLE AND SUSPENSION
DIFFERENTIAL CASE AND AXLE BODY
DIFFERENTIAL CASE AND AXLE BODY
DIFFERENTIAL WITH DIFFERENTIAL LOCK
PARKING BRAKE
PLANETARY GEAR
TIRE EQUIPMENT
TIRE EQUIPMENT
TIRE EQUIPMENT
ADVANCE DRIVE
ADVANCE DRIVE
ADVANCE DRIVE
ADVANCE DRIVE
ADVANCE DRIVE
DRIVE SHIFTING
PARKING BRAKE
PARKING BRAKE
CENTRE PIVOT ASSEMBLY
CENTRE PIVOT ASSEMBLY
STEERING
STEERING
STEERING
STEERING
BLADE
HYDRAULIC SYSTEM (BLADE)
HYDRAULIC SYSTEM (BLADE)
ELECTRICAL SYSTEM (BLADE)
SUN ROOF
SUN ROOF
SUN ROOF
PROTECTIVE ROOF
PROTECTIVE ROOF
SAFETY BUMPER
LAMP PROTECTION
GRID (TUV FRANCE)
PADFOOT SEGMENTS
BYPASS OIL FILTER
ADDITIONAL LIGHTING, ROPS
ADDITIONAL LIGHTING, FOPS
ADDITIONAL LIGHTING LED
ADDITIONAL LIGHTING
ADDITIONAL LIGHTING
VIBRO AUTOMATIC
HEATING AND AIR CONDITIONING STANDARD
HEATING AND AIR CONDITIONING STANDARD
HEATING AND AIR CONDITIONING STANDARD
HEATING AND AIR CONDITIONING STANDARD
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
HEATING AND AIR CONDITIONING TROPICAL VERSION
SEAT CONTACT SWITCH (TUV FRANCE)
ROTARY BEACON (DRIVER'S CABIN)
ROTARY BEACON (ROPS)
ROTARY BEACON
WARNING LIGHT (SUN ROOF)
ROTARY BEACON
FREQUENCY METER (VIBRATION)
BACK-UP ALARM (BACK-UP)
SPEEDOMETER
COMPACTOMETER HCQ
COMPACTION DOCUMENTATION
COMPACTION DOCUMENTATION
TACHOGRAPH
TACHOGRAPH
FIRE EXTINGUISHER
HOSE PROTECTION (FRONT FRAME)
TUV ITALY
TUV ITALY
HOMOLOGATION RUSSIA
SUSPENSION (ROLLER DRUM)
SUSPENSION (ROLLER DRUM)
MOUNTING
MOUNTING
SCRAPER (SMOOTH ROLLER DRUM)
SCRAPER (SMOOTH ROLLER DRUM)
SCRAPER (PADFOOT DRUM)
SCRAPER (SPRING STEEL)
SCRAPER (L-STEEL, SMOOTH ROLLER DRUM)
SMOOTH ROLLER DRUM WITH VIBRATOR (WITH DRUM DRIVE)
DRUM WITH VIBRATOR (WITH DRUM DRIVE)
SMOOTH ROLLER DRUM WITH VIBRATOR (WITH DRUM DRIVE)
VIBRATION DRIVE
VIBRATION DRIVE
ADDITIONAL STORAGE
CAMERA SYSTEM
HCQ PREPARATION, KAB
HCQ PREPARATION, KAB
HCQ PREPARATION, ROPS
HCQ PREPARATION, ROPS
HCQ-PREPARATION
HCQ PREPARATION
HCQ PREPARATION
HCQ-PREPARATION
WIFMS INTERFACE
WIFMS INTERFACE
WITOS
WITOS
PARK HEATING
PARK HEATING
HOMOLOGATION AUSTRALIA
HOMOLOGATION BRAZIL
MAINTENANCE KITS AND REPAIR KITS
8
9
45
50
61
62
62
63
64
65
67
68
70
71
72
72
72
73
73
73
73
73
74
74
74
75
75
80
81
Позиция на иллюстрации
Заводской номер детали
Название детали
8
2160758
HOSE
9
1263145
BOWDEN CABLE
45
1263137
SWITCH HEATING-VENTILATING
50
2097859
WIRE HARNESS HEATING
61
2110183
METAL PLATE
62
2175172
LOCKING WASHER
63
2119339
HEXAGON SCREW
64
2540276
STUD SCREW
65
2110182
METAL PLATE
67
1209302
SAFETY NUT
68
267341
WIRE FASTENER
70
206369
STRAIGHT SCREWED SOCKET
71
2095385
PIPE BEND
72
2053480
COOLING-WATER HOSE
73
2053489
COOLING-WATER HOSE
74
2077533
HOSE CLAMP
75
2077531
HOSE CLAMP
80
2158079
SCREW FITTING
81
399493
SEALING RING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
