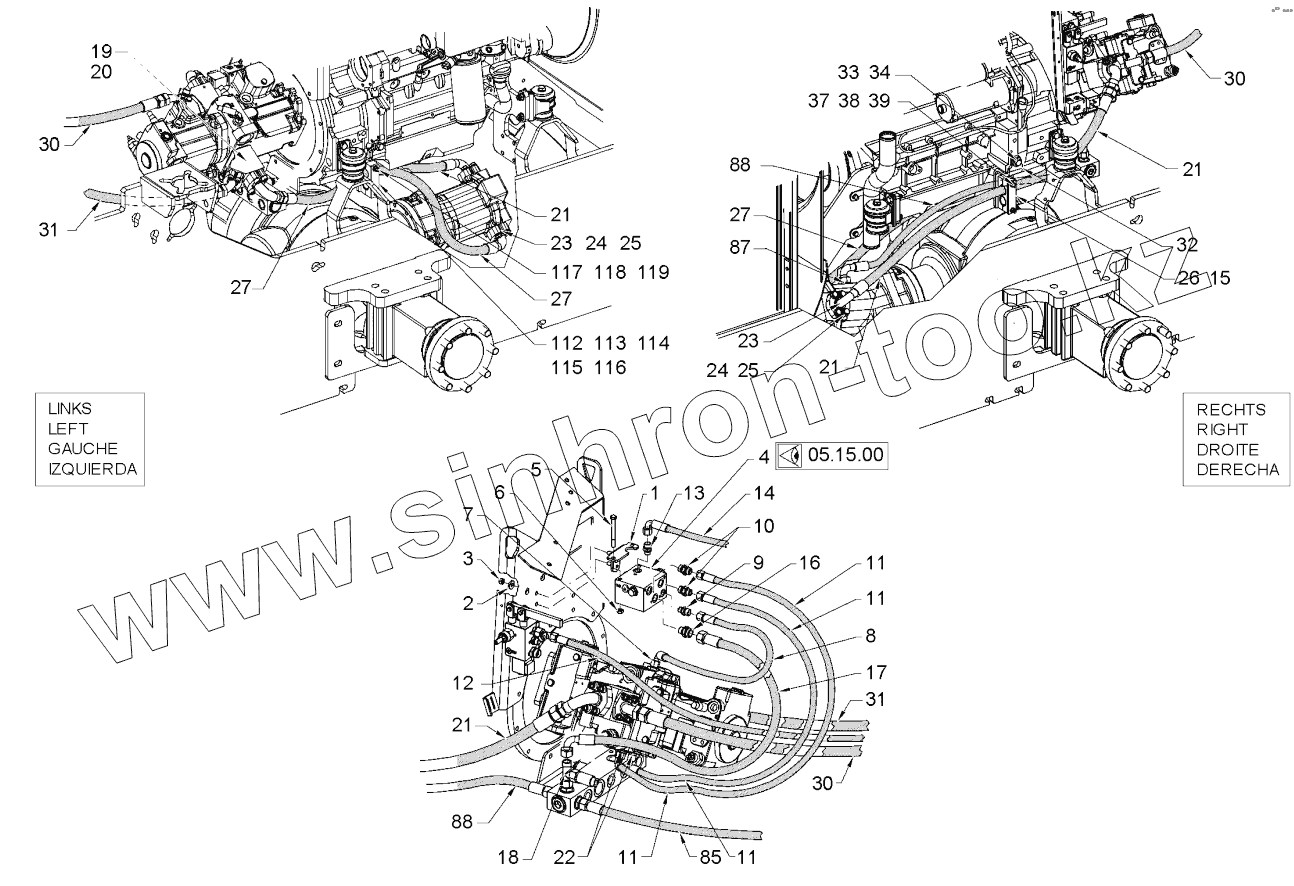

Каталог запасных частей к технике: HAMM 3410. ADVANCE DRIVE
1
2
3
4
5
6
7
8
9
10
11
11
11
11
12
13
14
15
16
17
18
19
20
21
21
21
21
22
23
23
24
24
25
25
26
27
27
27
30
30
30
31
31
32
33
34
37
38
39
85
87
88
88
112
113
114
115
116
116
117
118
119
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2107406 | HOLDER | |
| 2 | 231355 | WASHER | |
| 3 | 216445 | HEXAGONAL NUT | |
| 4 | 2107404 | CONTROL BLOCK COMPL. | |
| 5 | 212628 | HEXAGON SCREW | |
| 6 | 216445 | HEXAGONAL NUT | |
| 7 | 278777 | STRAIGHT SCREWED SOCKET | |
| 8 | 386650 | HOSE | |
| 9 | 317152 | STRAIGHT SCREWED SOCKET | |
| 10 | 2108141 | STRAIGHT SCREWED SOCKET | |
| 11 | 2108844 | HOSE | |
| 12 | 2108849 | HOSE | |
| 13 | 317152 | STRAIGHT SCREWED SOCKET | |
| 14 | 2108850 | HOSE | |
| 15 | 1486772 | HALF-CLIP | |
| 16 | 391379 | STRAIGHT SCREWED SOCKET | |
| 17 | 1230824 | HOSE | |
| 18 | 350648 | ELBOW ADJUSTABLE | |
| 19 | 1486586 | CONNECTING BLOCK | |
| 20 | 228516 | O-RING SEAL | |
| 21 | 1302108 | HOSE | |
| 22 | 2108140 | STRAIGHT SCREWED SOCKET | |
| 23 | 228516 | O-RING SEAL | |
| 24 | 287199 | SAE-FLANGE HALF | |
| 25 | 1260774 | SAFETY SCREW | |
| 26 | 1486756 | FLAT STEEL | |
| 27 | 1302094 | HOSE | |
| 30 | 1259830 | HOSE | |
| 31 | 2108846 | HOSE | |
| 32 | 1486721 | FLAT STEEL | |
| 33 | 211826 | HEXAGON SCREW | |
| 34 | 293873 | WASHER | |
| 37 | 359270 | STUD SCREW | |
| 38 | 216593 | WASHER | |
| 39 | 216445 | HEXAGONAL NUT | |
| 85 | 2108847 | HOSE | |
| 87 | 206369 | STRAIGHT SCREWED SOCKET | |
| 88 | 1242466 | HOSE | |
| 112 | 2038679 | METAL PLATE | |
| 113 | 211826 | HEXAGON SCREW | |
| 114 | 293873 | WASHER | |
| 115 | 1486772 | HALF-CLIP | |
| 116 | 1486756 | FLAT STEEL | |
| 116 | 1499955 | FLAT STEEL VERSION WITH BLADE | |
| 117 | 359270 | STUD SCREW | |
| 118 | 216593 | WASHER | |
| 119 | 216445 | HEXAGONAL NUT |
