Каталог запасных частей к технике: Foton TL254 (TL1A254-001K). TE300.50E 50 FUEL TANK ASSEMBLY
1
1
10
10
11
11
11
11
11
11
11
11
11
12
13
14
14
15
16
16
16
16
17
2.1
2.2
2.3
3
3
4
5
5
5
5
5
5
5
5
6
7
8
9

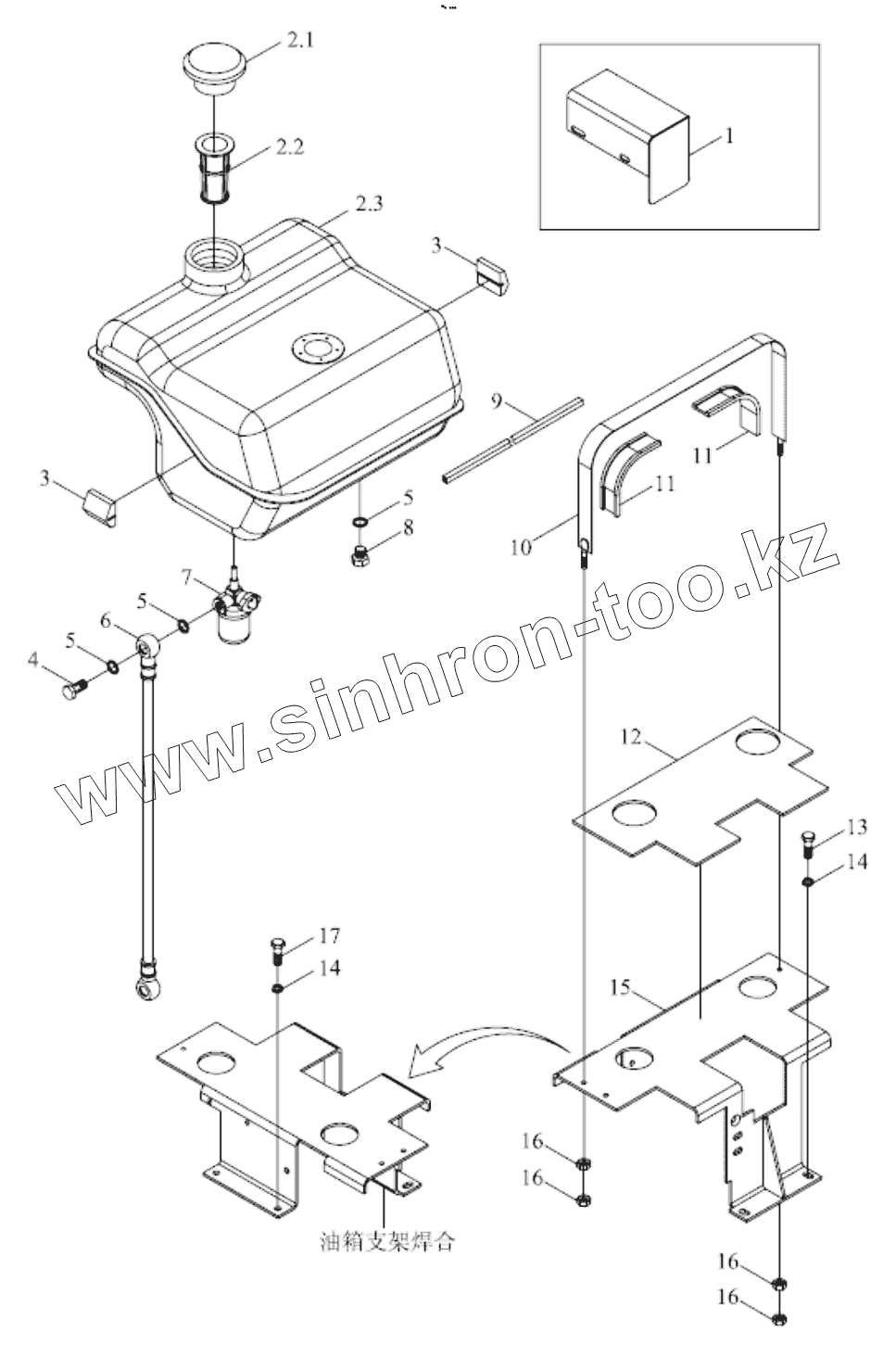

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | TE300.50.5 | HEAT INSULATION BOARD WELDMENT | |
| 1 | TE300.50.5 | HEAT INSULATION BOARD WELDMENT | |
| 10 | TE300.50.4 | STEEL BAND WELDMENT | |
| 10 | TE300.50.4 | STEEL BAND WELDMENT | |
| 11 | FT65.50.209a | Main fuel tank upper felt strip | |
| 11 | FT65.50.209 | UPPER RUBBER STRIP OF OIL TANK | |
| 11 | FT250.50.102 | rubber pad of steel belt | |
| 12 | TE300.50-02 | OIL TANK RUBBER WASHER | |
| 13 | GBT5783-M10X25-A3L | Bolt | |
| 14 | GBT93-10-A0P | Washer | |
| 15 | TE300.50.2 | OIL TANK BRACKET WELDMENT | |
| 16 | GBT6170-M10-A3L | Nut | |
| 17 | GBT5783-M10X20-A3L | Bolt | |
| 2 | TE300.50E.1 | OIL TANK ASSEMBLY | |
| 2.1 | TD800.501A.1.1 | OIL TANK COVER | |
| 2.2 | FT250.50.015a | filter screen assembly | |
| 2.3 | TE300.50E.1.1 | FUEL TANK WELDMENT | |
| 3 | FT300.50.112 | Rubber pad | |
| 4 | FT65.50.106 | hollow bolt | |
| 5 | JBT982-14 | Combined seal gasket | |
| 5 | JBT982-14 | Combined seal gasket | |
| 6 | FT250.50.023 | oil transport pipe assembly | |
| 7 | TE300.50A.3 | SEDIMENT CUP ASSEMBLY | |
| 8 | FT250.50.107 | fuel outlet plug | |
| 9 | FT300.45.809 | UPPER COVER PRESS STRIP |
