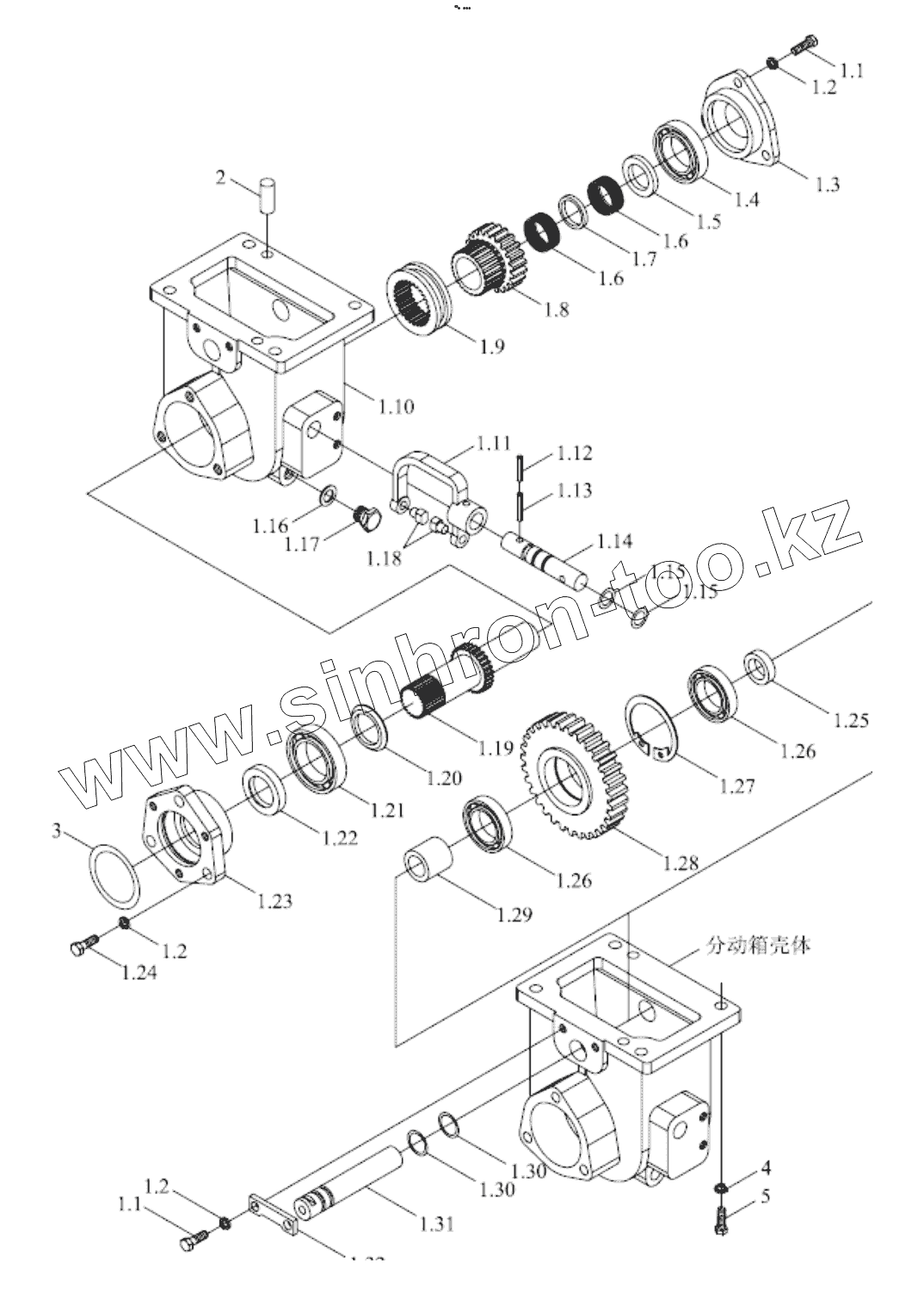

Каталог запасных частей к технике: Foton TL254 (TL1A254-001K). TE254.421B TRANSFER CASE ASSEMBLY

Тип техники

Марка

Модель

Схема

1.1

1.11

1.12

1.13

1.14

1.15

1.16

1.17

1.18

1.19

1.2

1.21

1.22

1.23

1.24

1.25

1.26

1.27

1.28

1.29

1.3

1.31

1.32

1.4

1.5

1.6

1.7

1.8

1.9

Позиция на иллюстрации	Заводской номер детали	Название детали
1	TE254.421B.1	TRANSFER CASE HOUSING ASSEMBLY
1.1	TE254.421A.1-01	TRANSFER CASE HOUSING
1.1	GBT5783-M10X20-A3L	Bolt
1.11	TE254.421A.1-02	TRANSFER CASE FORK
1.12	GBT879.1-6X24	PIN
1.13	GBT879.1-3.5X24	PIN
1.14	TE254.421A.1-03	TRANSFER CASE FORK SHAFT
1.15	GBT3452.1-12.5X1.80G	O-SEAL RING
1.16	JBT982-12	Combined seal gasket
1.17	Q617B12	SCREW PLUG
1.18	FT254.42.121	shifting fork head, transfer case
1.19	FT254.42.102	output shaft
1.2	FT254.42.109	front thrust ring,output shaft
1.2	GBT93-10-A0P	Washer
1.21	GBT276-6206	BEARING
1.22	TE254.421.1.1	OIL SEAL
1.22	TE254.421.1.1	OIL SEAL
1.23	TE254.421A.1-09	FRONT BEARING COVER
1.24	GBT5783-M10X30-A3L	Hex bolt
1.25	TE254.421A.1-10	MIDDLE SHAFT SMALL THRUST RING
1.26	GBT276-6204	Bearing
1.27	GBT893.1-47	RETAINER RING
1.28	TE254.421A.1-08	TRANSFER CASE MIDDLE GEAR
1.28	TE254.421B.1-02	TRANSFER CASE MIDDLE GEAR
1.29	TE254.421A.1-11	MIDDLE SHAFT BIG THRUST RING
1.3	TE254.421A.1-04	REAR BEARING COVER
1.3	GBT3452.1-15.0X2.65G	O-seal ring
1.31	TE254.421A.1-05	MIDDLE SHAFT
1.32	TE254.421A.1-07	MIDDLE SHAFT LOCATING PLATE
1.4	GBT276-6305	BEARING
1.5	FT254.42.107	rear thrust ring,output shaft
1.5	FT254.42.107	rear thrust ring,output shaft
1.6	JBT7918-K25X31X20	Needle and carrier unit
1.7	FT254.42.108	sleeve of needle roller bearing,output shaft
1.8	TE254.421B.1-01a	TRANSFER CASE DRIVEN GEAR
1.9	FT254.42F.103	SHIFT COLLAR
2	GBT119.1-10m6X18-A0P	PIN
3	GBT3452.1-53.0X2.65G	O-SEAL RING
4	GBT93-10-A0P	Washer
5	GBT5783-M10X30-10.9-A3L	BOLT

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
