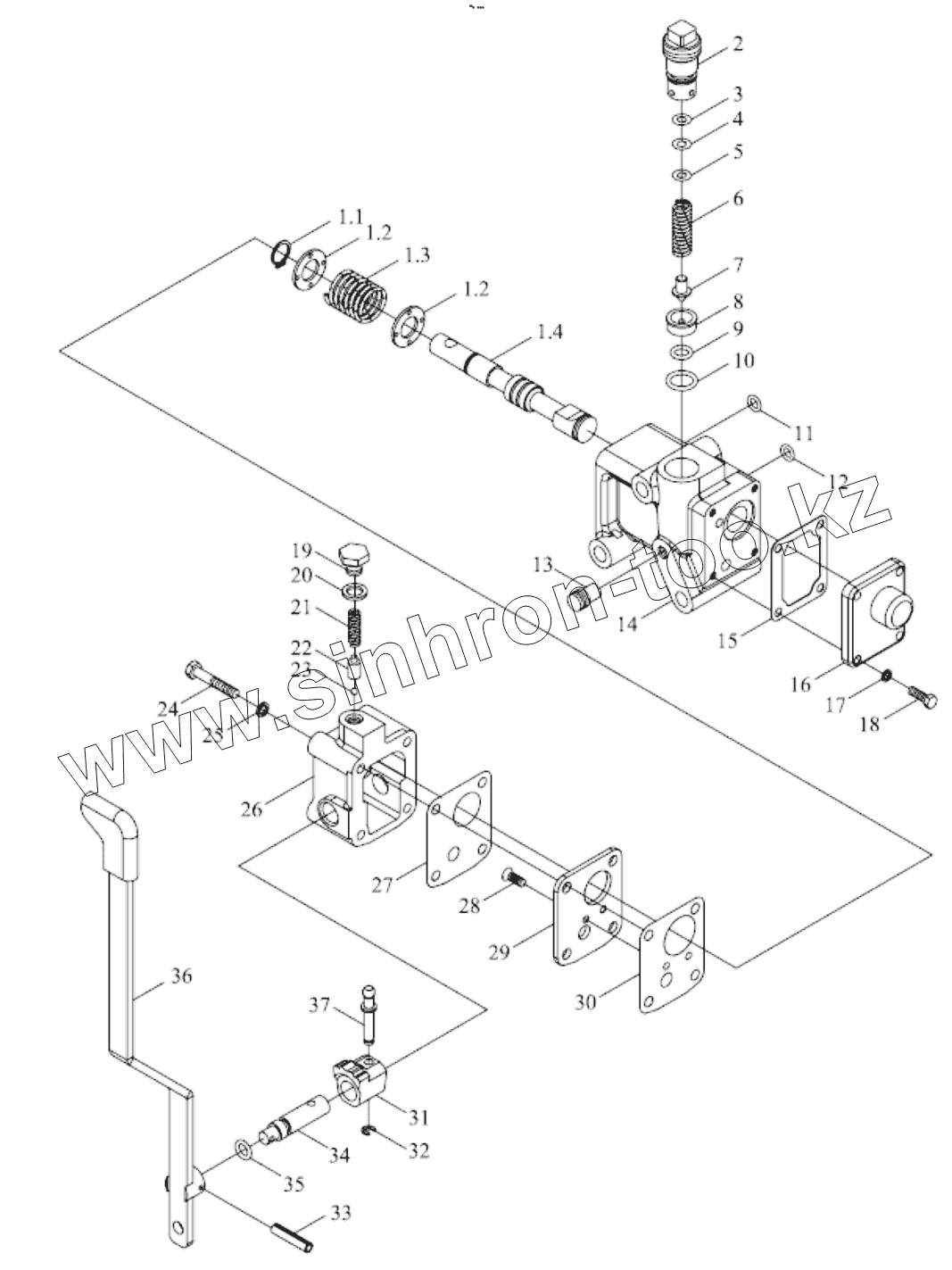

Каталог запасных частей к технике: Foton TL254 (TL1A254-001K). FT250.57.001 DISTRIBUTOR ASSEMBLY
1.1
1.2
1.2
1.3
1.4
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
26
27
28
29
3
30
31
32
33
34
34
35
36
36
37
4
5
6
7
8
9
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | FT250.57.010 | SLIDING VALVE ASSEMBLY | |
| 1.1 | GBT894.1-15 | Circlip for shaft | |
| 1.2 | FT250.57.115 | Spring circlip | |
| 1.3 | FT250.57.114 | Return spring of sliding valve | |
| 1.4 | FT250.57.113 | sliding valve | |
| 10 | GBT3452.1-15X2.65G | O-SEAL RING | |
| 11 | GBT3452.1-13.2X2.65G | O-SEAL RING | |
| 12 | GBT3452.1-19X2.65G | O-SEAL RING | |
| 13 | JBZQ4447-Z1-8 | SCREW PLUG | |
| 14 | FT250.57.104 | DISTRIBUTOR HOUSING | |
| 15 | FT250.57.103 | Front cover | |
| 16 | FT250.57.102 | FRONT COVER | |
| 17 | GBT93-5 | WASHER | |
| 18 | GBT5781-M5X16-A2L | BOLT | |
| 19 | FT250.57.123 | screw plug | |
| 2 | FT250.57.128 | Pressure screw plug | |
| 20 | FT250.57.124 | washer | |
| 21 | FT250.57.122 | locating spring | |
| 22 | FT250.57.121 | locating spring seat | |
| 23 | GBT308-5-G100b | BALL | |
| 24 | GBT5780-M6X55-A1L | BOLT | |
| 25 | GBT93-6 | Normal type single coil spring lock washer | |
| 26 | FT250.57.108 | rear cover | |
| 27 | FT250.57.107 | paper gasket of baffle | |
| 28 | GBT68-M4X10-A2L | Slotted double head screws | |
| 29 | FT250.57.106 | Baffle | |
| 3 | FT250.57.110 | Adjusting shim | |
| 30 | FT250.57.105 | paper gasket of baffle | |
| 31 | FT250.57.119 | locating block | |
| 32 | GBT896-4 | SNAP RING | |
| 33 | GBT879-4X22 | PIN | |
| 34 | FT250.57.109 | Axle for handle | |
| 34 | FT250.57.109 | Axle for handle | |
| 35 | GBT3452.1-9.5X2.65G | O-SEAL RING | |
| 36 | FT250.57.011 | Handle assembly | |
| 36 | FT250.57.011 | Handle assembly | |
| 37 | FT250.57.120 | Puller pin | |
| 4 | FT250.57.111 | Adjusting shim | |
| 5 | FT250.57.112 | Adjusting shim | |
| 6 | FT250.57.129 | spring of safety valve | |
| 7 | FT250.57.131 | Safety valve core | |
| 8 | FT250.57.101 | Safety valve seat | |
| 9 | GBT3452.1-9X2.65G | O-SEAL RING |
